Includes Models: 1-90-06900-1, Black; 1-90-06900-2, Charcoal; 1-90-06900-3, Goldenfire; 1-90-06900-4, Metallic Blue; 1-90-06900-5, Honey Glo; 1-90-06900-10, Mojave Red; 1-90-06900-12, Forest Green
Manufactured Between August 2007 - April 2018

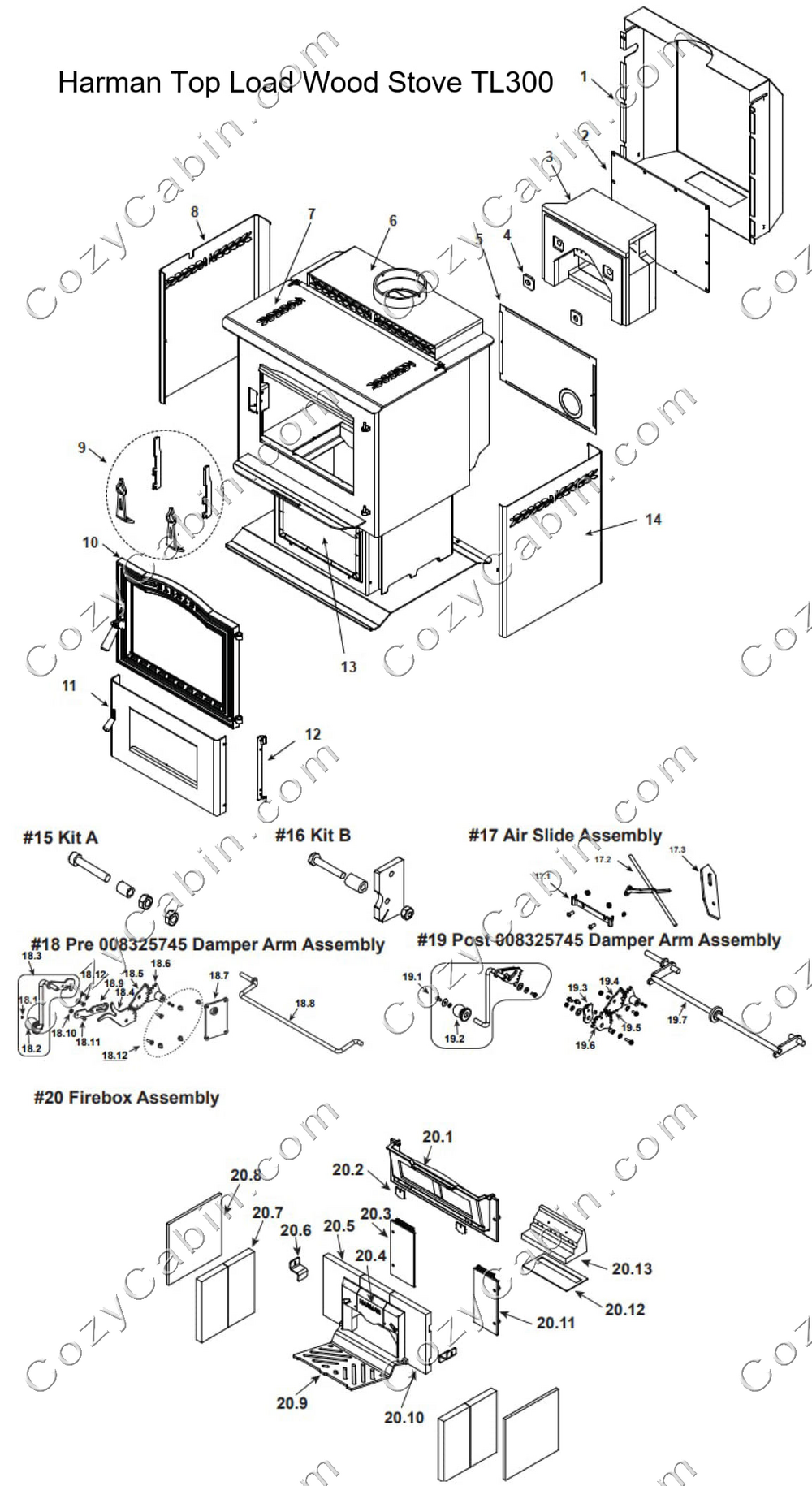

MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Rear Air Jacket (1-10-06928P) +$639.00
QTY: 1A Bolt, 1/4-20 x 5/8 Grade 8.2 Zinc Flange SAE [50 per package] (3-30-2001-50) +$68.80
QTY: 2 Combustion Package Cover (2-00-06922L) +$204.75
QTY: 3 Package with Cap and Gaskets (1-00-06999) +$836.00
QTY: 3A Gasket Set, Complete (3-44-06999) +$170.65
QTY: 3B Package Cap (2-00-06996B) +$266.28
QTY: 4 Gasket, Brick Air [4 per package] (3-44-2500202-4) +$58.12
QTY: 5 Outside Air Plate (2-00-06943P) +$266.28
QTY: 5A 5/16-18 x 1 1/4 Grade 5 Zinc Plated Hex Cap Screw [50 per package] (3-30-1129-50) +$47.59
QTY: 6 Top Air Grill Assembly (1-10-06946P) +$266.28
QTY: 7 Top Load Door Assembly (1-10-06921A) +$480.88
QTY: 7A Dowel Pin, .250 x .375 [15 per package] (3-30-2019-15) +$42.26
QTY: 7B Top Load Door Gasket Plate (1-10-40020) +$224.24
QTY: 7C Gasket. Top Load Door [5 ft per package] (1-00-10050) +$58.12
QTY: 7D Hinge Spacer [2 per unit, each sold separately] (2-00-40021L) +$24.52
QTY: 7E Lid Hinge Set, Bottom (1-00-40022) +$77.99
QTY: 7F Nut, Zinc Plated Acorn [50 per package] (3-30-8014-50) +$81.99
QTY: 8 Left Side Shield (2-00-06926P) +$309.20
QTY: 9 Andrion and Andiron Extension Set with Hardware (2-00-05222-1) +$114.01
QTY: 9A Screw, 5/16-18 x 3/4†Grade 5 Zinc Plated Hex Cap [100 per package] (3-30-1125-100) +$124.68
QTY: 9B Washer, 5/16†Zinc Plated USS Flat [100 per package] (3-30-0204-100) +$64.79
QTY: 10 Front Load Door Assembly (1-10-06920A) +$1303.00
QTY: 10A Ball Spring Bracket (2-00-06714) +$88.66
QTY: 10B Cast Door, Painted (4-00-06920P) +$774.00
QTY: 10C Door Latch (1-00-249119) +$138.02
QTY: 10D Gasket, Glass [15 ft per package] (1-00-2312) +$108.67
QTY: 10F Glass Clips with Hardware [4 per package] (2-00-05202-4) +$86.00
QTY: 10G Glass, Load Door w/Gasket (1-00-06932) +$429.84
QTY: 10H Mounting Screw for Handle, 1/4â€-20 x 2 1/2†[25 per package] (3-30-6007-25) +$67.46
QTY: 10J Wooden Handle (1-00-00247) +$47.59
QTY: 11 Ash Door Assembly (1-10-06915A) +$602.00
QTY: 11A Ash Door Latch [Pre 008325884] (SRV3-00-249149) +$58.12
QTY: 11B Ash Door Latch with Knob [Post 008325884] (1-00-249149) +$77.99
QTY: 11C Ash Door Gasket [5 ft per package] (1-00-10000) +$40.92
QTY: 11D Wooden Knob, Ash Door [Pre 008325884] (3-40-08746-3) +$79.32
QTY: 11E Wooden Knob, Ash Door [Post 00832588] (1600663) +$13.91
QTY: 12 Bolt on Ash Door Hinge (2-00-06952B) +$150.03
QTY: 13 Ash Pan (1-10-06938) +$408.96
QTY: 14 Right Side Shield (2-00-06927P) +$309.20
QTY: 15 Kit A [Includes Screws, Steel Sleeve Bushing] (1-00-06902) +$44.93
QTY: 16 Kit B [Includes Screws, Steel Sleeve Bushing, Latch Adjuster Plate, Reverse Lock Nut]. (1-00-06903) +$91.33
QTY: 17.1 Rod Bracket (2-00-06963B) +$102.00
QTY: 17.2 Air Slide Adjuster (1-10-06964W) +$81.99
QTY: 17.3 Air Slide Weldment (1-10-06950W) +$58.12
QTY: 18.1 Push-On Cap Lift Arm (3-31-500015) *No Longer Available* +$*0.00*
QTY: 18.2 Wooden Knob (3-40-06956) +$31.52
QTY: 18.3 Damper Linkage Arm Weldment with Hardware (1-10-06937W) +$268.60
QTY: 18.4 Damper Pivot Gear (2-00-06924-2) +$62.13
QTY: 18.5 Damper Idler Gear (2-00-06923L) +$86.00
QTY: 18.6 Damper Arm Gear Weldment (1-10-06916W) +$160.90
QTY: 18.7 Damper Shaft Cover Weldment (1-10-06918W) +$163.34
QTY: 18.8 Damper Linkage Weldment (1-10-249146) +$175.52
QTY: 18.9 Top Lift Arm weldment (1-10-08127) +$77.99
QTY: 18.1 1/4-20 Reversible Lock Nut [100 per package] (3-30-8020-100) +$46.26
QTY: 18.11 1/4-20 x 5/8 BHSCS [100 per package] (3-30-3016-100) +$83.33
QTY: 18.12 Hardware Package [Includes Drive Arm Washer, Pusher Block Bushing, Wave Washer, Screws] (1-00-06901) +$51.60
QTY: 19.1 Damper Linkage Arm Weldment with Hardware (1-10-06993A) +$220.58
QTY: 19.2 Wooden Knob (3-40-06956) +$31.52
QTY: 19.3 Damper Idler Gear, Outer (2-00-06979A) +$63.46
QTY: 19.4 Damper Arm Gear Weldment (1-10-06916W) +$160.90
QTY: 19.5 Damper Idler Gear, Center (2-00-06969A) +$67.46
QTY: 19.6 Damper Idler Gear, Inner (2-00-06978A) +$67.46
QTY: 19.7 Damper Linkage Weldment (1-10-06987W) +$177.95
QTY: 19.8 Hardware Package [Includes Drive Arm Washer, Pusher Block Bushing, Wave Washer, Screws] (1-00-06921) +$135.35
QTY: 20.1 Damper Frame Assembly [Includes Damper] (1-10-249106) +$498.00
QTY: Adjuster with Hardware [Pre 008323034] (1-00-249142) +$126.02
QTY: Adjuster with Hardware [Post 008323034] (1-00-250153) +$122.01
QTY: Damper with Adjuster (1-10-249107) +$305.72
QTY: Damper Shaft Retainers and Hardware [1 set] (1-00-249145) +$68.80
QTY: 20.2 Rear Brick Clip [2 per package] (1-00-249153) +$86.00
QTY: 20.3 Left Inside Plate Assembly with Gasket (1-10-249117A) +$163.34
QTY: 20.4 Logo Brick (3-40-00101) +$225.46
QTY: 20.5 Inlet Brick Left (3-40-00103) +$284.84
QTY: 20.6 Side Brick Bracket [2 per package] (1-00-06945) +$118.01
QTY: 20.7 Fire Brick 6 x 12 [4 per unit, each sold separately] (3-40-86125) +$31.52
QTY: 20.8 Brick Insulation [2 per unit, each sold separately] (3-40-06944) +$32.92
QTY: 20.9 Grate (2-00-06925B) +$254.69
QTY: 20.1 Inlet Brick Right (3-40-00104) +$284.84
QTY: 20.11 Right Inside Plate Assembly w/Gasket (1-10-249118A) +$160.90
QTY: 20.12 Shoe Brick Gasket (3-44-06951) +$34.32
QTY: 20.13 Shoe Brick (3-40-00100) +$324.28
QTY: 30 Ball Spring Plunger [3 per package] (3-31-5500-3) +$46.26
QTY: 31 Cast Weld on Door Hinge [2 per unit, each sold separately] (3-00-773813) +$40.92
QTY: 32 Blower Option (1-00-08118) +$924.00
QTY: 33 105 CFM Blower with VSC (3-21-50757) +$762.00
QTY: 34 Blower Mounting Plate (2-00-05218P) +$95.33
QTY: 35 Hex Cap Screw for Blower Mounting Plate [50 per package] (3-30-1108-50) +$64.79
QTY: 36 Gasket, 1/4 Round with Adhesive [10 ft per package] (1-00-11862) +$44.93
QTY: 37 Gasket 1 Single Ply with Adhesive [10 ft per package] (1-00-88100) +$87.33
QTY: 38 Hardware Package [Includes Screws, Centerlock Nuts] (1-00-06900) +$47.59
QTY: 39 MagneticThermometer (3-40-84376) +$212.06
QTY: 40 Air Grill Trim - Brushed Stainless (3-43-06948-7) +$221.80
QTY: 41 Air Grill Trim - Painted (1-10-06948P) +$119.35
QTY: 42 Ashlip Trim - Brushed Stainless (3-43-4722386-7) +$147.36
QTY: 43 Door Trim - Brushed Stainless (3-43-06931-7) +$667.00
QTY: 44 Tile Frame, Brushed Stainless (3-43-06729-7) +$175.52
QTY: 45 Spring Clips [Required for installation of Tile Frame] [20 per package] (3-31-232547-20) +$62.13
QTY: 46 Trim Kit, Brushed Stainless [includes front door trim, ash lip trim, air grille trim and tile frame] (1-00-06931-7) +$694.00
QTY: 47 Touch Up Paint - Black [Pre 008324098] (3-42-1990) *No Longer Available* +$*0.00*
QTY: 48 Touch Up Paint - Black Satin [Post 008324098] (3-42-19905) +$43.59
QTY: 49 Owners Manual [hard copy] [3-90-06901] (OMHC-VC) +$9.99
QTY: 50 Owners Manual [electronic copy] [3-90-06901] (OMEL-VC) +$0.00
|
