Includes Models: SDVTSCCB Classic Black, SDVTSCBS Biscuit, SDVTSCBM Majolica Brown, SDVTSCBD Bordeaux
Last Serial # HF1780423 on March 2019
MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Complete Log Set (20012551) +$282.84
QTY: 1A Rear Log (20012546) +$97.07
QTY: 1B Right Log (20012548) +$94.13
QTY: 1C Left Log (20012547) +$94.13
QTY: 1D Top Log (20012915) +$89.73
QTY: 2 Burner (20012492) +$613.77
QTY: 3 Classic Black Top (30001276A) +$282.84
QTY: 3A Biscuit Top (30003305A) +$971.49
QTY: 3B Bordeaux Top (30006752A) +$860.29
QTY: 3C Majolica Brown Top (30004897A) +$845.55
QTY: 4 Classic Black Operable Front Door (30001496A) +$273.46
QTY: 4A Biscuit Operable Front Door (30003302A) +$942.02
QTY: 4B Bordeaux Operable Front Door (30006753A) +$976.85
QTY: 4C Majolica Brown Operable Front Door (30004899A) +$960.78
QTY: 5 Classic Black Right Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004081A) +$155.77
QTY: 5A Biscuit Right Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004089A) +$678.08
QTY: 5B Bordeaux Right Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30006754A) +$778.56
QTY: 5C Majolica Brown Right Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004900A) +$678.08
QTY: 6 Classic Black Left Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004082A) +$162.25
QTY: 6A Biscuit Left Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004090A) +$678.08
QTY: 6B Bordeaux Left Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30006755A) +$781.24
QTY: 6C Majolica Brown Left Door [Pre 7/2007 Units Must Order Left and Right Doors together] (30004901A) +$678.08
QTY: 7 Classic Black Left End (30001280A) +$308.29
QTY: 7A Biscuit Left End (30003300A) +$828.14
QTY: 7B Bordeaux Left End (30006750A) +$875.03
QTY: 7C Majolica Brown Left End (30004895A) +$828.14
QTY: 8 Classic Black Right End (30001279A) +$304.27
QTY: 8A Biscuit Right End (30003301A) +$845.55
QTY: 8B Bordeaux Right End (30006751A) +$892.45
QTY: 8C Majolica Brown Right End (30004896A) +$845.55
QTY: 9 Control Door (1301087A) +$101.27
QTY: 10 Glass Frame (30000127) +$235.94
QTY: 11 Glass [Glass Gasket sold separately] (1601691) +$482.47
QTY: 12 Glass Gasket [10 ft per package] (1203702K) +$29.80
QTY: 13 Hex Jam Nut [each sold separately] (1203290) +$11.18
QTY: 14 Ashdoor Pawl Assembly (30002362) +$12.84
QTY: 15 Front Steel Handle/Shaft (30002717) +$83.10
QTY: 16 Restrictor Plate (20013026) +$34.49
QTY: 17 Fan Blower (20308374) +$643.24
QTY: 18 Orifice Hood 2.4MM NG (4604-316) +$38.93
QTY: 18A Orifice Hood 1.45MM LP (20308650) +$14.31
QTY: 19 Manifold (20012553) +$85.90
QTY: 20 Air Shutter (20012517) +$151.58

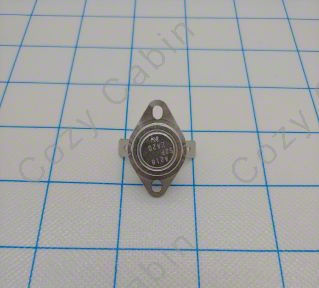

QTY: 21 Sensor [Only for FSDHAG] (10002013) +$155.53
QTY: 22 Base Pan Gasket (20002282) +$25.69
QTY: 23 HE Door Gasket (1203687A) +$25.69
QTY: 24 Tie Bracket (20012514) +$34.49
QTY: 25 Safety Screen Barrier (30007254) +$298.91
QTY: 26 Right Burner Support (20012512) +$125.03
QTY: 27 Remote Transmitter (TSFSC) *No Longer Available* +$*0.00*
QTY: 28 Command Center (SRV80D0005) +$87.29
QTY: 29 Gas Valve NG (SRV80D0001) +$151.58
QTY: 29A Gas Valve LP (SRV80D0002) +$155.53
QTY: 30 Control Box NG (SRV80D0018) +$195.75
QTY: 30A Control Box LP (SRV80D0019) +$195.75
QTY: 31 AC Module SCS with 8 ft Power Cord (30007360) +$197.09
QTY: 32 Pilot Assembly NG (20308981) +$270.78
QTY: 32A Pilot Assembly LP (20308982) +$292.22
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 33 Black Wood Fallaway Handle Kit [includes: Black Handle, Screw and Nickel Nub] (30004175K) +$67.88
QTY: 33A White Handle with Screw and Insert (0004342) +$101.43
QTY: 34 Switch Bracket (53821K) +$88.69
QTY: 35 Starter Pipe (20307738K) +$148.79
QTY: 36 Rear Shroud (20003802) +$274.80
QTY: 37 Gasket (834-1460) +$55.45
QTY: 38 Door Magnet [recommend using Silicone to attach] (30004112) +$Call to Order
QTY: 38A 500 Degree Rtv High Heat Silicone [Clear] Tube 2.7 oz. (76CT) +$16.98
QTY: 39 Classic Black Touch-Up Paint (3-42-19905) +$34.49
QTY: 39A Bordeaux Touch-Up Paint (0001341) +$37.43
QTY: 39B Biscuit Touch-Up Paint (0001277) +$37.43
QTY: 39C Majolica Touch-Up Paint (1-00-0014) +$36.04
QTY: 40 Wire Valve/Control (SRV80D0010) +$14.31
QTY: 41 Wire AC Module (SRV80D0009) +$28.62
QTY: 42 Wire Command Center (80D0008) +$28.62
QTY: 43 Vanity Control Cover (20308405K) +$155.53
QTY: 44 Control Plate Assembly [includes: Burner, Valve, Pilot and Command Center] (20308376K) +$1374.77
QTY: 45 Piezo Igniter Control Bracket (20300111K) +$51.26
QTY: 46 Conversion Kit NG to LP (4604-011) +$166.27
QTY: 47 Conversion Kit LP to NG (4604-013) +$166.27
QTY: 46 Owners Manual [hard copy] [3-90-20306760] (OMHC-VC) +$9.99
QTY: 48 Owners Manual [electronic copy] [3-90-20306760] (OMEL-VC) +$0.00
Accessories
Item Description (Part Number)
QTY: 49 Cast Iron Steamer Ebony Black Enamel (0000784) +$823.75
QTY: 50 White-Off Glass Cleaning Cream 8 oz (565) +$10.95
WARMING SHELF KITS [Includes: Warming Shelf, Two Shelf Brackets, Two Shelf Clips and Hardware]
Item Description (Part Number)
QTY: 51 Warming Shelf Kit [Classic Black] (0002702) +$288.71
QTY: 51A Warming Shelf Kit [Biscuit] (0002684) *No Longer Available* +$*0.00*
QTY: 51B Warming Shelf Kit [Bordeaux] (0002686) +$339.00
QTY: 51C Warming Shelf Kit [Majolica Brown] (0002681) +$279.00
INDIVIDUAL WARMING SHELF PARTS
Item Description (Part Number)
QTY: 52 Shelf Only [Classic Black] [2 per unit, each sold separately] (1301133A) +$90.09
QTY: 52A Shelf Only [Biscuit] [2 per unit, each sold separately] ~Old Part # 30003227~ (SRV30003227) +$289.54
QTY: 52B Shelf Only [Bordeaux] [2 per unit, each sold separately] (SRV30006758) +$289.54
QTY: 52C Shelf Only [Majolica Brown] [2 per unit, each sold separately] ~Old Part # 30004853~ (SRV30004853) +$289.54
QTY: 53 Shelf Bracket [Classic Black] [2 per shelf, each sold separately] (1301132A) +$150.18
QTY: 53A Shelf Bracket [Biscuit] [2 per shelf, each sold separately] (SRV30003226) +$187.71
QTY: 53B Shelf Bracket [Bordeaux] [2 per shelf, each sold separately] (SRV30006757) +$274.80
QTY: 53C Shelf Bracket [Majolica Brown] [2 per shelf, each sold separately] (SRV30004852) +$186.37
QTY: 54 Shelf Clip [4 per unit, each sold separately] (1409035) +$20.18
QTY: 55 Washer [8 per unit, each sold separately] (Call for Part #) +$Call to Order
QTY: 56 Clip Screw [4 per unit, each sold separately] (Call for Part #) +$Call to Order
QTY: 57 Bracket Screw [4 per unit, each sold separately] (Call for Part #) +$Call to Order
QTY: 58 Hardware Package (30007019K) +$51.26
|
