Includes Models: SDDVTCBSB Classic Black, SDDVTBSSB Biscuit, SDDVTBMSB Majolica Brown, SDDVTBDSB Bordeaux
MAIN ASSEMBLY
Item Description (Part Number)
QTY: 2 Burner (20012492) +$642.60
QTY: 3 Top [Classic Black] (30001276A) +$405.05
QTY: 3A Top [Biscuit] (30003305A) +$754.00
QTY: 3B Top [Bordeaux] (30006752A) +$995.40
QTY: 3C Top [Majolica Brown] (30004897A) +$1045.80
QTY: 4 Front Operable Door [Classic Black] (30001496A) +$390.43
QTY: 4A Front Operable Door [Biscuit] (30003302A) +$764.00
QTY: 4B Front Operable Door [Bordeaux] (30006753A) +$1214.85
QTY: 4C Front Operable Door [Majolica Brown] (30004899A) +$856.80
QTY: 5 Right Door [Classic Black] [pre 7/2007 Units must order Left and Right together] (30004081A) +$180.39
QTY: 5A Right Door [Biscuit] [pre 7/2007 Units must order Left and Right together] (30004089A) +$554.00
QTY: 5B Right Door [Bordeaux] [pre 7/2007 Units must order Left and Right together] (30006754A) +$894.60
QTY: 5C Right Door [Majolica Brown] [pre 7/2007 Units must order Left and Right together] (30004900A) +$581.70
QTY: 6 Left Door [Classic Black] [pre 7/2007 Units must order Left and Right together] (30004082A) +$203.53
QTY: 6A Left Door [Biscuit] [pre 7/2007 Units must order Left and Right together] (30004090A) +$554.00
QTY: 6B Left Door [Bordeaux] [pre 7/2007 Units must order Left and Right together] (30006755A) +$819.00
QTY: 6C Left Door [Majolica Brown] [pre 7/2007 Units must order Left and Right together] (30004901A) +$581.70
QTY: 7 Left End [Classic Black] (30001280A) +$405.05
QTY: 7A Left End [Biscuit] (30003300A) +$704.00
QTY: 7B Left End [Bordeaux] (30006750A) +$707.70
QTY: 7C Left End [Majolica Brown] (30004895A) +$856.80
QTY: 8 Right End [Classic Black] (30001279A) +$405.05
QTY: 8A Right End [Biscuit] (30003301A) +$654.00
QTY: 8B Right End [Bordeaux] (30006751A) +$782.25
QTY: 8C Right End [Majolica Brown] (30004896A) +$819.00
QTY: 9 Control Door (1301087A) +$125.10
QTY: 10 Glass Frame (30000127) +$288.12
QTY: 11 Glass [Glass Gasket sold separately] (1601691) +$501.27
QTY: 12 Glass Gasket [10ft per package] (1203702K) +$28.69
QTY: 13 Jam Nut [each sold separately] (1203290) +$11.18
QTY: 14 Pawl Assembly [Ashdoor] (30002362) +$11.68
QTY: 15 Front Steel Handle/Shaft (30002717) +$86.98
QTY: 16 Restrictor Plate (20013026) +$42.79
QTY: 17 NOVA SIT Valve [NG/LP] (20012218) +$306.39
QTY: 18 3-Way Top Convertible SIT Pilot Assembly NG [includes: Thermopile, Thermocouple, Pilot, Pilot Tube and Electrode with Wire] [recommend using High Temperature Red Silicone] (SRV10002264) +$166.99
QTY: 18A 3-Way Top Convertible SIT Pilot Assembly LP [includes: Thermopile, Thermocouple, Pilot, Pilot Tube and Electrode with Wire] [recommend using High Temperature Red Silicone] (SRV10002265) +$166.99
QTY: 18B High Temperature Red Silicone (70AW) +$12.79
QTY: 19 Thermocouple (SRV24D0808) +$57.90
QTY: 20 Electrode Igniter (10001297) +$32.69
QTY: 22 Pilot Tube with Fittings (26D0665) +$38.98
QTY: 23 Pilot Orifice #62 NG (37D0022) +$19.61
QTY: 23A Pilot Orifice #35 LP (SRV200-2630) +$30.02
QTY: 24 Orifice Hood NG (4604-316) +$40.25
QTY: 24A Orifice Hood LP (20308650) +$14.34
QTY: 25 Piezo Igniter with Nut (057958A) +$44.06
QTY: 26 Manifold (20012553) +$81.90
QTY: 27 Air Shutter (20012517) +$162.12
QTY: 30 Wiring Harness (10002582) +$34.03
QTY: 31 Base Pan Gasket (20002282) +$23.35
QTY: 32 Heat Exchange Blow Off Door Gasket [2 per unit, each sold separately] ~Old Part # 1203687~ (1203687A) +$27.35
QTY: 33 Tie Bracket (20012514) +$44.06
QTY: 34 Safety Screen Barrier (30007254) +$333.19
QTY: 35 Right Burner Support Assembly (20012512) +$113.66
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 36 Black Wood Handle Package [includes: Black Handle, Screw & Nickel nub] (30004175K) +$78.09
QTY: 36A White Ceramic Handle with Screw and Insert (0004342) *No Longer Available* [can sub black handle 30004175K] +$*0.00*
QTY: 37 Switch Bracket (53821K) +$88.25
QTY: 38 Starter Pipe (20307738K) +$139.07
QTY: 39 Rear Shroud (20003802) +$390.43
QTY: 40 Gasket [10 ft per package] ~Old Part # 1-00-1203560~ (834-1460) +$65.52
QTY: 41 Door Magnet [recommend using Silicone to attach] (30004112) +$Call to Order
Accessories
Item Description (Part Number)
QTY: 42 Touch-Up Paint [Classic Black] (3-42-19905) +$40.25
QTY: 43 Touch-Up Paint [Bordeaux] (0001341) +$46.60
QTY: 44 Touch-Up Paint [Biscuit] (0001277) +$40.25
QTY: 45 Touch-Up Paint [Majolica Brown] ~Old Part # 0001270, 0001270A~ (1-00-0014) +$47.87
QTY: 46 Control Plate (20012493) +$924.00
QTY: 47 Finish Bag (SRV30007263) +$338.06

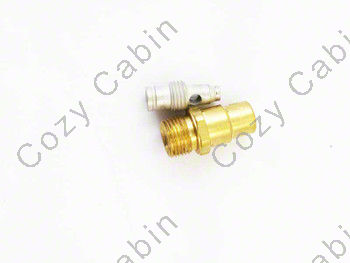

QTY: 49 Conversion Kit [LP to NG] (4604-012) +$151.16
QTY: 49A Conversion Kit Torques Security Screwdriver (X0026JN0X3) +$22.32
QTY: 50 Owners Manual [hard copy] [3-90-30007467] (OMHC-VC) +$9.99
QTY: 51 Owners Manual [electronic copy] [3-90-30007467] (OMEL-VC) +$0.00
|
