Includes Models: RADVT-RADVTSCCB-RADVTSCBS-RADVTSCBD-RADVTSCBM-RADVTCBSB-RADVTBSSB-RADVTBDSB-RADVTBMSB
Item Description (Part Number)
QTY: 1 Log Set ~Old Part # 20012550~ (SRV20012550) +$363.87
QTY: 1A Log Rear ~Old Part # 20012541~ (SRV20012541) *No Longer Available* +$*0.00*
QTY: 1B Log Right Front (20012543) +$126.42
QTY: 1C Log Left Front (20012542) +$127.88
QTY: 1D Left Cross Log (20012544) +$120.55
QTY: 1E Right Cross Log (20012545) +$108.81
QTY: 2 Ember Bed Assembly [Burner] (20012206) +$625.80
QTY: 3 Top Classic Black ~Old Part #1301194~ (1301194A) +$423.32
QTY: 3A Top Biscuit ~Old Part #30003244~ (30003244A) +$848.08
QTY: 3B Top Bordeaux ~Old Part #30006794~ (30006794A) +$971.08
QTY: 3C Top Brown Majolica ~Old Part #30004933~ (30004933A) +$772.23
QTY: 3D Top Ebony Black (30003262) +$Call to Order
QTY: 4 Top Screen (1601970) +$148.72
QTY: 5 Grille ~Old Part #1301195~ (1301195A) +$266.37
QTY: 6A Front II Classic Black ~Old Part #30001376~ (30001376A) +$437.58
QTY: 6B Front II Biscuit Old Part # 30003240~ (30003240A) +$909.58
QTY: 6C Front II Bordeaux ~Old Part #30006790~ (30006790A) +$1007.98
QTY: 6D Front II Brown Majolica ~Old Part #30004928~ (30004928A) +$884.98
QTY: 6E Front II Ebony Black (30003258) *No Longer Available* +$*0.00*
QTY: 7A Door Left Classic Black ~Old Part #30001378~ (30001378A) +$200.58
QTY: 7B Door Left Biscuit ~Old Part #30003242~ (30003242K) +$503.68
QTY: 7C Door Left Bordeaux ~Old Part #30006792~ (30006792A) +$860.38
QTY: 7D Door Brown Majolica ~Old Part #30004930~ (30004930A) +$688.18
QTY: 7E Door Ebony Black ~Old Part #30003260~ (SRV30003260) +$589.78
QTY: 8A Door Right Classic Black ~Old Part #30001377~ (30001377A) +$201.83
QTY: 8B Door Right Biscuit ~Old Part #30003241~ (30003241A) +$700.48
QTY: 8C Door Right Bordeaux ~Old Part #30006791~ (30006791A) +$756.85
QTY: 8D Door Right Brown Majolica ~Old Part #30004929~ (30004929A) +$725.08
QTY: 8E Door Right Ebony Black (30003259) *No Longer Available* +$*0.00*
QTY: 9A Control Door Classic Black ~Old Part #30001413~ (30001413A) +$171.86
QTY: 9B Control Door Biscuit ~Old Part #30003243~ (30003243A) +$480.39
QTY: 9C Control Door Bordeaux ~Old Part #30006793~ (30006793A) +$324.63
QTY: 9D Control Door Brown Majolica ~Old Part #30004931~ (30004931A) +$466.12
QTY: 9E Control Door Ebony Black (30003261) *No Longer Available* +$*0.00*
QTY: 10A Left End Classic Black ~Old Part #30001751~ (30001751A) +$323.44
QTY: 10B Left End Biscuit ~Old Part #30003239~ (30003239A) +$675.88
QTY: 10C Left End Bordeaux ~Old Part #30006789~ (30006789A) +$700.48
QTY: 10D Left End Brown Majolica ~Old Part #30004927~ (30004927A) +$823.48
QTY: 10E Left End Ebony Black (30003257) +$Call to Order
QTY: 11A Right End Classic Black ~Old Part #30001752~ (30001752A) +$309.17
QTY: 11B Right End Biscuit ~Old Part #30003238~ (30003238A) +$725.08
QTY: 11C Right End Bordeaux ~Old Part #30006788~ (30006788A) +$725.08
QTY: 11D Right End Brown Majolica ~Old Part #30004926~ (30004926A) +$690.23
QTY: 11E Right End Ebony Black (30003256) *No Longer Available* +$*0.00*
QTY: 12A Leg Classic Black [4 per unit, each sold separately] ~Old Part #30001753~ (30001753A) +$120.48
QTY: 12B Leg Biscuit ~Old Part #30003245~ (30003245A) +$260.50
QTY: 12C Leg Bordeaux ~Old Part #30006795~ (30006795A) +$240.53
QTY: 12D Leg-Brown Majolica ~Old Part #30004934~ (30004934A) +$323.44
QTY: 12E Leg Ebony Black (30003263) *No Longer Available* +$*0.00*
GLASS/GASKET/DOOR
Item Description (Part Number)
QTY: 13 Glass Frame Assembly (5003075) +$822.15
QTY: 14 Glass Frame (1409112) +$254.69
QTY: 15 Glass Gasket [10 ft per package] (1203702K) +$30.68
QTY: 16 Glass Firebox [recommend replacing Gasket] ~Old Part #1601290~ (1601290A) +$468.50
QTY: 19 Brushed Nickel Insert (30002714) +$32.69
QTY: 20 Control Door Handle Assembly (30002730) +$27.35
QTY: 21 Washer Flat Black [each sold separately] (1202473) +$12.26
QTY: 23 Latch Front Door (30001249) +$14.34
QTY: 24 Front Door Steel Handle with Screw ~Old Part #30002720~ (30002720A) +$102.70
QTY: 25A Fan Blower [RADVTSC Series Only] (20208374) +$Call to Order
QTY: 26 Valve NOVA SIT820.852 (20012218) +$306.39
QTY: 26A Valve Gas Honeywell Convertible NG (20003719) +$838.95
QTY: 26B Valve Gas Honeywell RFP RV8310E LP (20003720) *No Longer Available* +$*0.00*
QTY: 27A Pilot Assembly 3-Way N/DV RN NG-SIT [includes: Thermopile, Thermocouple, Pilot, Pilot Tube & Electrode with Wire] ~Old Part #10002264~ (SRV10002264) +$170.62
QTY: 27B Pilot Assembly 3-Way N/DV RP LP-SIT 0.199.703 ~Old Part #10002265~ (SRV10002265) +$170.62
QTY: 27C Pilot Assembly 3 WAY -DV RFN Honeywell [Natural Gas] [includes: 2 Thermopiles, Pilot Tube, Electrode with Wire, Orifice & Pilot Hood] [to convert to LP Must Add 20000907] (20002266) +$344.15
QTY: 28 Pilot Top Convertible (10002266) *No Longer Available* [can Sub SRV10002264-NG or SRV10002265-LP] +$*0.00*
QTY: 29 Thermocouple 24 Inches ~Old Part #24D0808~ (SRV24D0808) +$61.93
QTY: 30 Electrode Igniter with Cable SIT24 (10001297) +$32.69
QTY: 33 Tubing Pilot with Fitting 1/8 X 24 Inches (26D0665) +$41.66
QTY: 34A Pilot Orifice #62 Natural Gas Top Convertible (37D0022) +$19.61
QTY: 35A Orifice Hood #51 Propane (20008557) +$13.01
QTY: 35B Orifice Hood #31 (20006927) +$19.26
QTY: 35D Pilot Orifice Hood LP -PSE Honeywell [Fits between the Pilot Assembly and the Pilot Tube] (20000907) +$29.06
QTY: 36 Igniter Piezo with Nut SIT ~Old Part # 057958~ (057958A) +$47.13
QTY: 37 Bracket Piezo Igniter/ Control ~Old Part #20010876~ (20010876K) +$90.40
QTY: 38 Manifold Assembly (20012202) +$71.74
QTY: 39 Air Shutter Assembly (20012204) +$131.45
QTY: 40 Trim On/Off Switch (3000874) +$Call to Order

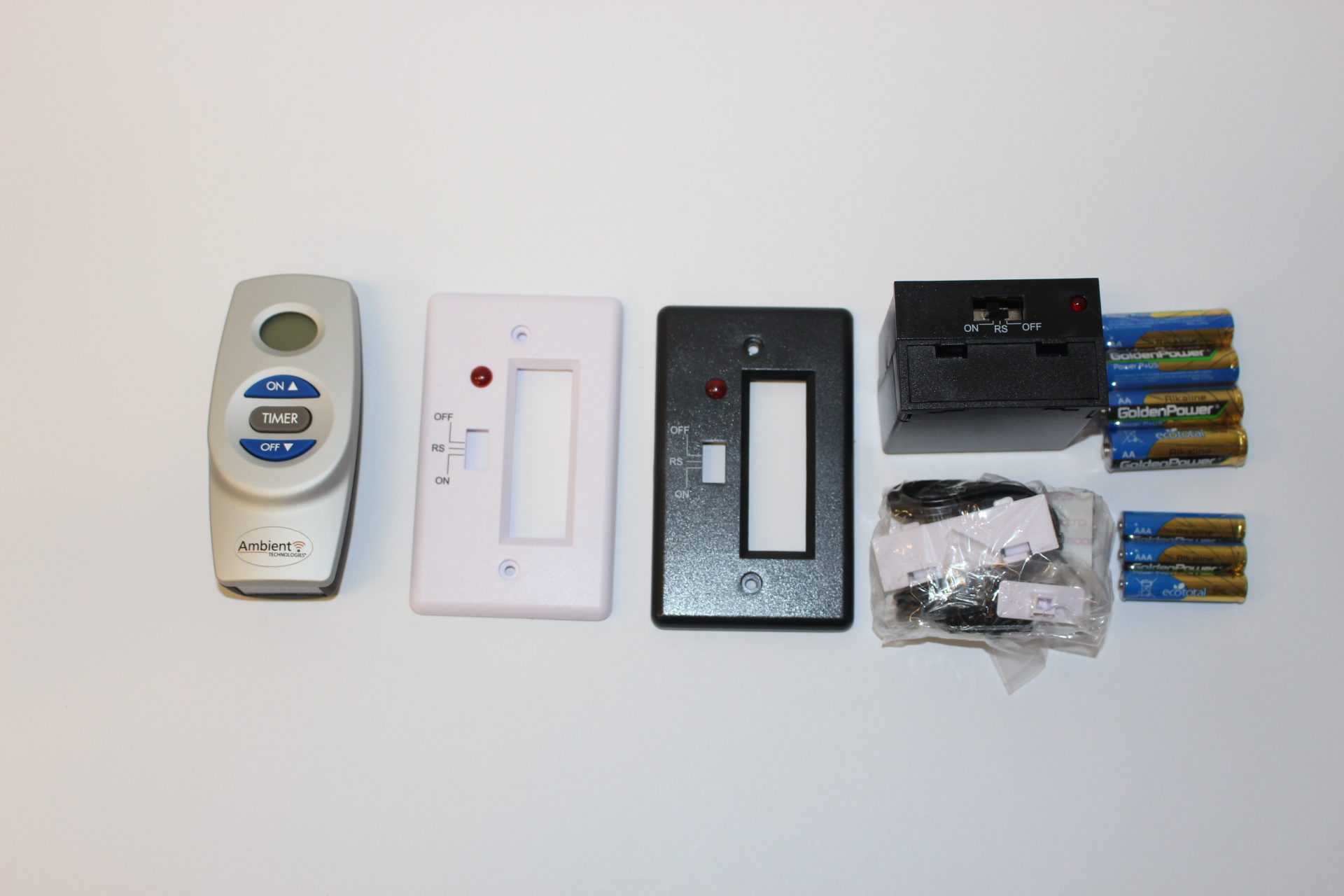

QTY: 41 Remote Transmitter and a Switch to manually turn Fan on/off . [original remote controlled fan/light - not this one] ~Old Part # TSFSC~ (TSFSC-A) +$445.00
QTY: 42 Wire with Straight Term 2 End 50 Inches (10002582) +$34.03
QTY: 44 Gasket Base Pan (20004287) +$13.01
QTY: 45 Heat Exchange Blow Off Door Gasket [2 per unit, each sold separately] ~Old Part # 1203687~ (1203687A) +$29.25
QTY: 46 Gasket Cement 3 oz Tube (1206122) +$28.69
QTY: 47 Restrictor Plate (20013028A) +$Call to Order
QTY: 48 Right Burner Support Assembly (20012443) +$132.72
QTY: 49 Tire Bracket Assembly (20012442) +$13.01
QTY: 50 Rear Shroud Assembly [RADVT Series Only] (20004194) +$165.77
QTY: 50A Rear Shroud Assembly [RADVTSC Series Only] (20300123) *No Longer Available* +$*0.00*
QTY: 51 Bracket Igniter [RADVTSC Series Only] ~Old Part #20300111~ (20300111K) +$66.03
QTY: 52 Safety Screen Barrier (30007253) +$273.50
QTY: 53 Gas Valve Assembly ~Old Part #80D0001~ (SRV80D0001) +$170.62
QTY: 54 Pilot Assembly ~Old Part #80D0006~ (20308981) +$267.44
QTY: 55 Control Box NG Signature Command ~Old Part #80D0018~ (SRV80D0018) +$230.54
QTY: 56 Command Center SCS ~Old Part #80D0005~ (SRV80D0005) +$115.01
QTY: 57 Wire Valve/Control ~Old Part #80D0010~ (SRV80D0010) +$24.94
QTY: 58 Wire AC Module ~Old Part #80D0009~ (SRV80D0009) +$44.39
QTY: 59 Wire Command Center (80D0008) +$33.55
QTY: 60 AC Module SCS with 8 ft Power Cord (30007360) +$199.88
ITEMS NOT SHOWN
Item Description (Part Number)
QTY: 61 Handle Holder (1600600) +$26.02
QTY: 63 Propane to Natural Gas [RADVT Only] (20012899) +$83.17
QTY: 64 Natural Gas to Propane [RADVTSC Only] (20308379) +$125.10
QTY: 65 Propane to Natural Gas [RADVT Only] (20308415) +$Call to Order
REMOTES
Item Description (Part Number)
QTY: 69 Conversion Kit Torques Security Screwdriver (X0026JN0X3) +$22.32
WARMING SHELF KITS
[Includes: 1 Shelf, 1 Left Bracket, 1 Right Bracket, 1 Dragon Bracket, 2 Mittenracks and Hardware]
Item Description (Part Number)
QTY: 71 Warming Shelf Kit [Biscuit] [2 per unit, each sold separately] (0001555) *No Longer Available* +$*0.00*
QTY: 72 Warming Shelf Kit [Majolica Brown] [2 per unit, each sold separately] (0001553) +$379.00
INDIVIDUAL WARMING SHELF PARTS
Item Description (Part Number)
QTY: 75 Shelf Only [Classic Black] [2 per unit, each sold separately] (1302208A) +$149.19
QTY: 76 Shelf Only [Biscuit] [2 per unit, each sold separately] (SRV30003090) +$351.98
QTY: 77 Shelf Only [Majolica Brown] [2 per unit, each sold separately] (SRV30004817) +$351.98
QTY: 78 Shelf Only [Bordeaux] [2 per unit, each sold separately] (SRV30006797) +$351.98
QTY: 79 Dragon Bracket [Classic Black] [2 per unit, each sold separately] (1302220A) +$99.97
QTY: 80 Dragon Bracket [Biscuit] [2 per unit, each sold separately] ~Old Part # 30002948~ (SRV30002948) +$178.11
QTY: 81 Dragon Bracket [Majolica Brown] [2 per unit, each sold separately] (SRV30004818) +$204.32
QTY: 82 Dragon Bracket [Bordeaux] [2 per unit, each sold separately] (30006690A) +$188.09
QTY: 83 Left Cast Bracket [2 per unit, each sold separately] (1302221A) +$70.13
QTY: 84 Right Cast Bracket [2 per unit, each sold separately] (1302222A) +$64.66
QTY: 85 Mittenrack [2 per shelf, each sold separately] (1601705) +$17.01
QTY: 86 Hex Head Cap Screw [used without Washer] [2 per shelf, each sold separately] (1201338) +$12.65
QTY: 88 Washer [3 per shelf, each sold separately] (1202473) +$12.26
QTY: 89 Leveling Set Screw [4 per shelf, each sold separately] (1200422) +$11.68
QTY: 90 Allen Wrench (1205116) +$11.68
QTY: 91 Hardware Kit (5007234) +$28.69
|
