DV360  #H12-13A-B-H-I-K-L00-GFDN-L-E-I4L0

DV360


Item#: H12-13A-B-H-I-K-L00-GFDN-L-E-I4L0

Price: $0.00


Order Now

Item Description (Part Number)

QTY: 1-LOG SET COMPLETE (10007405) +$Call to order

QTY: 1A-LOG FRONT LEFT [B127] (10006376) +$Call to order

QTY: 1B-LOG FRONT RIGHT (10006374) +$Call to order

QTY: 1C-LOG REAR [B140] (10007410) +$Call to order

QTY: 1F-LOG FRONT CENTER [B139] (10007409) +$Call to order

QTY: 2-VOLCANIC ROCK PACKAGE ~Old Part #s 20000376, 00F0540~ (SRV00F0540) +$34.40

QTY: 3- EMBER PACKAGE (58D0443) +$12.26

QTY: 4-LAVA ROCK [BURNER] (57897K) +$34.32

QTY: 4A-PLATINUM EMBERS (81D2012) *No longer available* +$ *0.00*

QTY: 5A-BURNER HOUSING ASSEMBLY NATURAL GAS (10007346) +$Call to order

QTY: 5B-BURNER HOUSING ASSEMBLY PROPANE (10007345) +$Call to order

QTY: 6- CERAMIC TILE SINGLE ~Old part #57803~ (SRV57803) Would recommend purchasing a new gasket. The gasket will need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$30.12

QTY: 7-MANIFOLD ASSEMBLY (10003207) +$59.46

QTY: 8A-CERAMIC HEARTH PANEL [LEFT] (10006323) +$Call to order

QTY: 8B-CERAMIC HEARTH PANEL [RIGHT] (10006324) +$Call to order

QTY: 9-CERAMIC PANEL REAR (10006308) +$Call to order

QTY: 10A-CERAMIC PANEL [LEFT SIDE] (10006309) +$Call to order

QTY: 10B-CERAMIC PANEL [RIGHT SIDE] (10006310) +$Call to order

QTY: 11 FRAME WINDOW WITH GLASS [FOR GLASS ONLY USE PART #20002623K] (20002622) *No longer available* +$ *0.00*

QTY: 11A GLASS [Glass Gasket sold separately] (20002623K) +$383.94

QTY: 12-GLASS GASKET [12FT PKG] ~Old part #10000992, 10000992K ~ (10000992K/12) +$124.68

QTY: 13 WINDOW METAL FRAME ONLY (20003710) +$ *0.00*

QTY: 14-CLAMP FRAME WINDOW (54174) 2 REQUIRED, EACH SOLD SEPARATELY *No longer available* +$ *0.00*

QTY: 15-TRIM FRAME WINDOW [PB] WITH MAGNETS [No longer available] (57483K) +$ *0.00*

QTY: 16-LOUVER ASSEMBLY TOP (10000039) +$ *0.00*

QTY: 17-LOUVER ASSEMBLY BOTTOM (10000040) +$ *0.00*

QTY: 18-HINGE (52356) 2 REQUIRED, EACH SOLD SEPARATELY *No Longer Available* +$*0.00*

QTY: 19-DEFLECTOR CABINET TOP ~Old Part # 54364~ (54364K) *No longer available* *No longer available* +$ *0.00*

QTY: 20A-LP GAS VALVE CONVERSION PIN-HONEYWELL [RED SCREW] (20000550) +$238.74

QTY: 20B NATURAL GAS VALVE CONVERSION PIN-HONEYWELL [BLUE SCREW] (20000571) +$195.05

QTY: 21-GRATE ASSEMBLY (10006332) +$103.95

QTY: 22A-ORIFICE FRONT BURNER PROPANE (55143) +$40.88

QTY: 22B-ORIFICE FRONT BURNER NATURAL GAS (53552) +$41.98

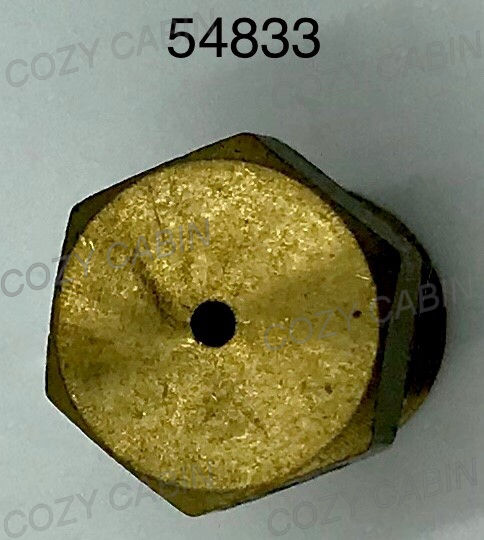

QTY: 22C-ORIFICE REAR BURNER PROPANE (54833) +$41.99

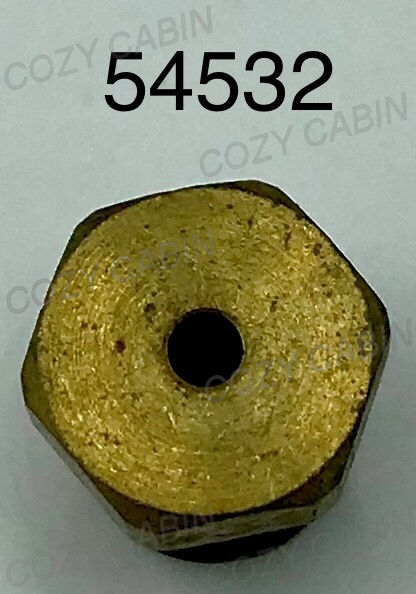

QTY: 22D-ORIFICE REAR BURNER NATURAL GAS (54532) +$11.18

QTY: 23-SWITCH ON/OFF (51842) +$29.49

QTY: 24A-HONEYWELL TO SIT GAS VALVE CONVERSION KIT - NATURAL GAS [KIT INCLUDES: VALVE, VALVE BRACKET, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part #10001782~ (20010811) +$278.93

QTY: 24B-HONEYWELL TO SIT GAS VALVE CONVERSION KIT - PROPANE GAS [KIT INCLUDES: VALVE, VALVE BRACKET, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part #10001759~ (20010680) +$319.86

QTY: 25A-GAS VALVE SIT-MV-HI/LO NATURAL GAS ~Old part #37D0117, 37D0117A~ (230-0710) +$314.74

QTY: 25B-GAS VALVE SIT-MV-HI/LO PROPANE ~Old part #37D0118~ (SRV37D0118) +$270.74

QTY: 26A- 3-Way Top Convertible Pilot Assembly - NG-SIT [Includes: Thermopile, Thermocouple, Pilot, Pilot Tube & Electrode with Wire] ~Old Part #10002264~ (SRV10002264) +$138.02

QTY: 26B- PILOT ASSEMBLY 3-way PROPANE GAS [SIT] ~Old part #10002265~ (SRV10002265) +$138.02

QTY: 27-ELECTRODE IGNITER WITH CABLE (10001297) +$28.72

QTY: 28-NUT ELECTRODE [Sensing Electrode Nut Only] (57886) +$13.28

QTY: 29-PILOT TUBING WITH FITTINGS [SIT PILOT] (26D0665) +$34.40

QTY: 30-THERMOCOUPLE 24IN [SAME AS 24D0808] ~Old part #24D0808~ (SRV24D0808) +$43.59

QTY: 31-CABLE IGINITOR RN/RP ~Old Part # 53194~ (7522432) +$15.59

QTY: 32-THERMOPILE 18IN [SAME AS 7533113] ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 33-PILOT TOP CONVERTIBLE [Can sub 10002264-NG or 10002265-LP] (10002266) *No longer available* +$ *0.00*

QTY: 34-HOOD PILOT 3-way ~Old part #10002385~ (37D0018K) +$132.69

QTY: 35A-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT (37D0022) +$19.61

QTY: 35B-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 (37D0023) +$28.52

QTY: 37-AIR SHUTTER PROPANE (10000879) +$28.72

QTY: 38-AIR SHUTTER [NG] (10001117) +$16.46

QTY: 39-FAN WITH BRACKET [RF MODELS & FK24] ~Old part #54103~ (FK24) +$583.05

QTY: 40-ELECTRICAL CORD [6 FEET] [FK24] ~Old Part # 51865~ (26D0619) +$50.26

QTY: 41-FAN TEMPERATURE SENSOR [FK24] ~Old part #51704~ (SRV51704) +$40.92

QTY: 42-SPEED CONTROL [FK24] ~Old part #51738 (SRV51738) +$75.32

QTY: 43-SPEED CONTROL KNOB [FK24] (51882) +$26.61

QTY: 44-REMOTE SWITCH KIT SWITCH WIRE & BRACKET (53875) +$67.64

QTY: 45-PIEZO IGNITER REPLACEMENT KIT [NOT SHOWN] (20000062) +$135.77

QTY: 46-CERAMIC BRICK LINING [OPTIONAL NOT SHOWN] (HT2CB0) +$Call to order

QTY: 47-SHIELD HEAT PILOT ~Old part #10000248~ (10000248K) +$13.66

QTY: 48-PLATE RELIEF WITH GASKET ASSEMBLY BURNER TRAY ~Old part #10004192~ (10004192K) +$147.36

QTY: 49-FIRESTOP (52523) +$Call to order

QTY: 50-ZERO CLEARANCE SLEEVE (54623) 2 REQUIRED, EACH SOLD SEPARATELY +$28.72

QTY: 53-PLATE COVER AIR INLET ASSEMBLY (10002766) +$Call to order

QTY: 54-GASKET PLATE AIR INLET (10002449) +$Call to order

QTY: 55-FLUE COVER PLATE (10002298) +$18.73

QTY: 56-FLUE COVER GASKET (10002233) +$11.18

QTY: 57-FLUE PIPE ASSEMBLY (10004933) +$Call to order

QTY: 59-ANTENNAE RF VALVE (20003561) +$68.25

QTY: 60A- RF VALVE HONEYWELL RV 8310E 1107 NATURAL GAS ~OLD PART #[20003719]~ RFN HONEYWELL TO RCSITEA RETROFIT [INCLUDES- VALVE PILOT ASSEMBLY REMOTE AND HARDWARE] (20301078) +$1064.18

QTY: 60B-RF VALVE HONEYWELL RV 8310E 2015 PROPANE NATURAL GAS ~OLD PART #[20003720]~ RFP HONEYWELL TO RCSITEA RETROFIT [INCLUDES- VALVE PILOT ASSEMBLY AND REMOTE] (20301079) +$1064.18

QTY: 61-PSE FOR RF PILOTS 20002400 ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 62A-ORIFICE PILOT HOOD-NG-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000908) +$15.06

QTY: 62B-ORIFICE PILOT HOOD-LP-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000907) +$15.06

QTY: 63A-PILOT ASSEMBLY RF 3WAY NATURAL GAS (20002266) +$285.33

QTY: 63B-PILOT ASSEMBLY RF 3WAY [NG GAS] [MUST ORDER PROPANE ORIFICE TO CONVERT TO PROPANE GAS] (20002268) *No longer available* [This Pilot Assembly only comes NG, use part #20002266, must add 20000907 PROPANE Orifice to convert to LP] +$ *0.00*

QTY: 64-TRANSMITTER HONEYWELL REMOTE [No longer available can sub #60A – Part #20301078] (20002047) +$ *0.00*

QTY: 66- PILOT TUBE LONG WITH FITTINGS [UNIVERSAL] (10003279) +$28.72

QTY: 68A-REGULATOR HEAD NATURAL GAS ~Old part #37D0024~ (230-1570) +$47.59

QTY: 68B-REGULATOR HEAD PROPANE (37D0025) +$70.64

QTY: 69-BRACKET REAR LOG (10006394) +$Call to order

QTY: 70-GASKET ASSEMBLY BURNER BASE (10006154) +$Call to order

QTY: 71-PLATE RELIEF WITH GASKET ASSEMBLY -FIREBOX TOP (10002429) +$Call to order

QTY: 72-TRANSFORMER ~Old part #s 7522409, 022788~ (SRV022788) +$161.27

QTY: 73-IGNITER MODULE HONEYWELL EN/EP (20000005) +$305.79

QTY: 74A-VALVE SIT 822.632 EN ~Old Part # 37D0016~ (SRV37D0016) +$593.18

QTY: 74B-VALVE SIT 822.631 EP (37D0017) *No Longer Available* +$ *0.00*

QTY: 75A-PILOT ASSEMBLY SIT TOP CONVERTIBLE -EN (10002387) +$136.69

QTY: 75B- PILOT ASSEMBLY SIT TOP CONVERTIBLE EP (10002388) *No longer available* [CAN SUB (1) 10002387 TOGETHER WITH (1) 37D0023] +$ *0.00*

QTY: 76-SENSING ELECTRODE WITH CABLE EN/EP[NOT SHOWN] (57885) +$32.92

QTY: 77-WIRE HARNESS HONEYWELL EN/EP[NOT SHOWN] (57889) +$ *0.00*

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 78-SPACER DRYWALL (54340) *No longer available* +$ *0.00*

QTY: 79-GASKET BURNER BASE (20002373) +$Call to order

QTY: 80-WINDOW ASSEMBLY WITH GLASS GASKET & FRAME (20002090) +$Call to order

QTY:
