Main : Gas Burning : Gas Fireplace Parts - Natural Vent

Heatilator Novus 36 Inch B-Vent Gas Fireplace with Electronic Ignition (GNBC36E)

Item#: GNBC36E

Price: $0.00

Order Now

Includes Models: GNBC36E,GNBC36EF,GNBC36LE

Manufactured Between January 1995 - November 2003

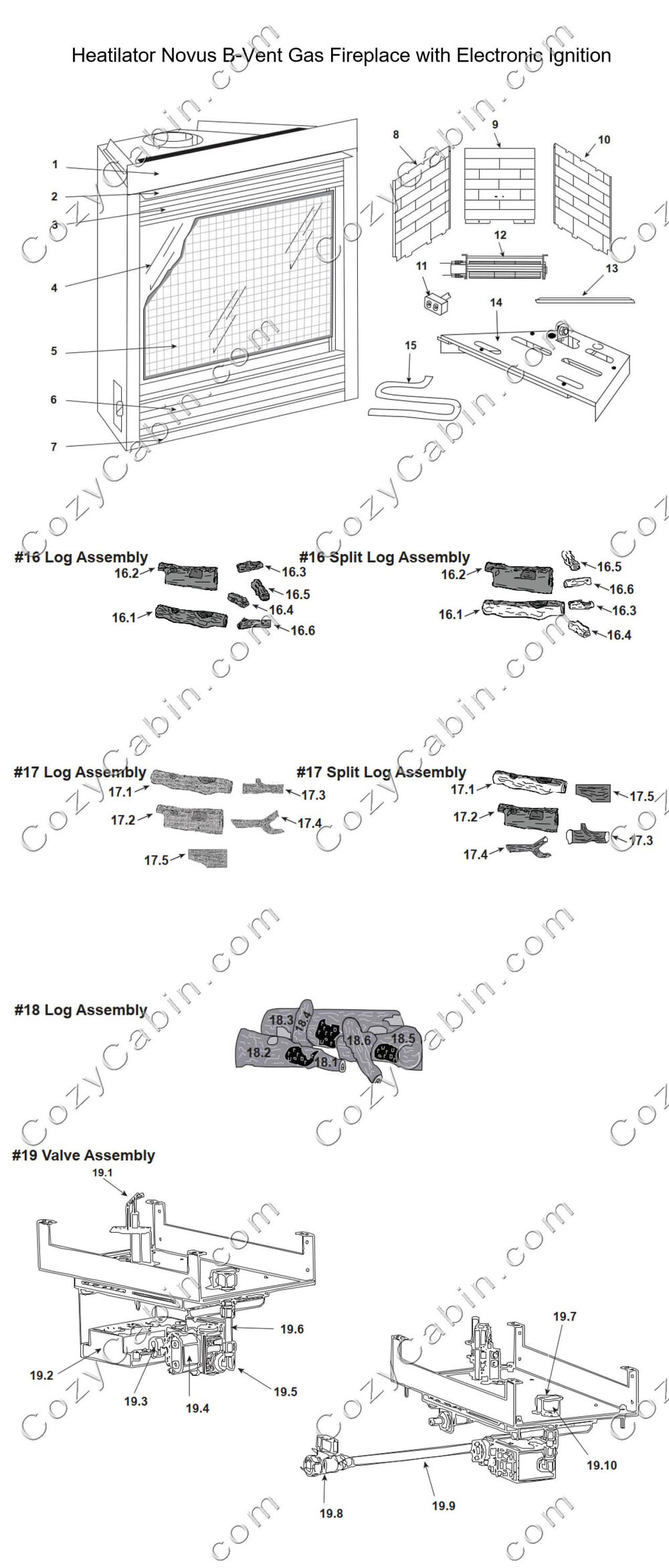

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1 Face, Top Front (21549) +$123.63

QTY: 2 Hood (4031-211) *No Longer Available* +$*0.00*

QTY: 3 Grille, Upper (22123A) *No Longer Available* +$*0.00*

QTY: 4 Glass Panel Assembly (24523A) +$398.52

QTY: 5 Screen Assembly (35106) +$155.63

QTY: 6 Grille, Lower (21582) +$151.93

QTY: 7 Face, Bottom Front (21552C) *No Longer Available* +$*0.00*

QTY: Refractory Kit (25362) *No Longer Available* +$*0.00*

QTY: 8 Refractory, Left Side [Metal Liner] (26207) *No Longer Available* +$102.67

QTY: 9 Refractory, Back [Metal Liner] (28038) *No Longer Available* +$*0.00*

QTY: 10 Refractory, Right Side [Metal Liner] (26208) *No Longer Available* +$102.67

QTY: 11 Junction Box Kit (22130) +$99.97

QTY: 12 Fan Kit with Timer Circuit (GFK4B) +$327.00

QTY: 13 Ashlip (21795A) *No Longer Available* +$*0.00*

QTY: 13A Ashlip (24929) *No Longer Available* +$*0.00*

QTY: 14 Hearth Sheet (26854) *No Longer Available* +$*0.00*

QTY: 15 Burner Assembly [pre25/97] (SRV21573) +$348.64

QTY: 15A Burner Assembly [post 25/97] (26821) +$486.33

LOGSETS

Item Description (Part Number)

QTY: 16 Log Assembly (22952B) *No Longer Available* +$*0.00*

QTY: 16.1 Front Log (SRV22927) *No Longer Available* +$*0.00*

QTY: 16.2 Back Log (SRV22928) *No Longer Available* +$*0.00*

QTY: 16.3 Middle Left Log (SRV22929) *No Longer Available* +$*0.00*

QTY: 16.4 Middle Right Log (SRV22930) *No Longer Available* +$*0.00*

QTY: 16.5 Top Left Log (SRV22931) *No Longer Available* +$*0.00*

QTY: 16.6 Top Right Log (SRV23767) *No Longer Available* +$*0.00*

QTY: 16 Split Log Assembly (22953) *No Longer Available* +$*0.00*

QTY: 16.1 Front Log (SRV22932) *No Longer Available* +$*0.00*

QTY: 16.2 Back Log (SRV22928) *No Longer Available* +$*0.00*

QTY: 16.3 Middle Left Log (22933A) *No Longer Available* +$*0.00*

QTY: 16.4 Middle Right Log (SRV22934) *No Longer Available* +$*0.00*

QTY: 16.5 Top Left Log (SRV22935) *No Longer Available* +$*0.00*

QTY: 16.6 Top Right Log (22544) *No Longer Available* +$*0.00*

QTY: 17 Log Assembly (25568) *No Longer Available* +$*0.00*

QTY: 17.1 Front Log (SRV22927) *No Longer Available* +$*0.00*

QTY: 17.2 Back Log (SRV22928) *No Longer Available* +$*0.00*

QTY: 17.3 Top Left Log (25254) *No Longer Available* +$*0.00*

QTY: 17.4 Top Right Log (SRV25255) *No Longer Available* +$*0.00*

QTY: 17.5 Middle Right Log (25256A) *No Longer Available* +$*0.00*

QTY: 17 Split Log Assembly (25635) *No Longer Available* +$*0.00*

QTY: 17.1 Front Log (SRV22932) *No Longer Available* +$*0.00*

QTY: 17.2 Back Log (SRV22928) *No Longer Available* +$*0.00*

QTY: 17.3 Top Left Log (25254) *No Longer Available* +$*0.00*

QTY: 17.4 Top Right Log (SRV25255) *No Longer Available* +$*0.00*

QTY: 17.5 Middle Right Log (25256A) *No Longer Available* +$*0.00*

QTY: 18 Log/Grate Assembly [26/97 - 40/01] (29165) *No Longer Available* +$*0.00*

QTY: 18.1 Front Log (SRV27112) *No Longer Available* +$*0.00*

QTY: 18.2 Front Left Log (SRV27123) *No Longer Available* +$*0.00*

QTY: 18.3 Back Log (SRV30042) *No Longer Available* +$*0.00*

QTY: 18.4 Top Left Log (SRV27127) *No Longer Available* +$*0.00*

QTY: 18.5 Front Right Log (SRV27122) *No Longer Available* +$*0.00*

QTY: 18.6 Top Right Log (SRV27125) *No Longer Available* +$*0.00*

QTY: 18 Log/Grate Assembly [post 40/01] (34051) +$854.23

QTY: 18.1 Front Log (nla) *No Longer Available* +$*0.00*

QTY: 18.2 Front Left Log (SRV33861) *No Longer Available* +$*0.00*

QTY: 18.3 Back Log (SRV33860) *No Longer Available* +$*0.00*

QTY: 18.4 Top Left Log (SRV33864) *No Longer Available* +$*0.00*

QTY: 18.5 Front Right Log (SRV33862) *No Longer Available* +$*0.00*

QTY: 18.6 Top Right Log (SRV33863) +$214.49

BURNER ASSEMBLY

Item Description (Part Number)

QTY: 19.1 Electrode Only [pre 46/96] (25616) +$194.34

QTY: 19.1A Electrode Only [pre 45/98] (26541) +$201.83

QTY: 91.1B Electrode Ignitor with Cable [post 46/98] (30355) +$206.82

QTY: 19.2 Control Module (SRV15695) +$332.40

QTY: 19.3 Brass Connector, 90 degrees Flex (SRV4021-045) +$42.26

QTY: 19.4 Valve - NG [pre 18/02] (SRV462-500B) +$487.84

QTY: 19.4A Valve - NG [post 18/02] (SRV593-500) +$158.47

QTY: 19.4B Valve - LP [pre 18/02] (SRV462-501B) *No Longer Available* +$*0.00*

QTY: 19.5 Brass Elbow (13908B) +$*0.00*

QTY: 19.6 Burner Supply Tube [pre 25-97] (26482) +$155.63

QTY: 19.6 Burner Supply Tube [pre 25-97] (27003) +$52.93

QTY: 19.6A Burner Supply Tube [post 25-97] (SRV17811) +$30.12

QTY: 19.7 Burner Orifice - NG [pre 25/97] (SRV13410) +$35.73

QTY: 19.7A Burner Orifice - NG [post 25/97] (SRV17236) +$31.52

QTY: 19.7B Burner Orifice - LP [pre 25/97] (SRV13445) +$35.73

QTY: 19.7C Burner Orifice - LP [post 25/97] (SRV15697) +$70.13

QTY: 19.8 On/Off Valve (SRV4121-006) +$99.34

QTY: 19.9 Stainless Steel Flex Gas Line, 16 in. (26457) +$84.93

QTY: 20 Battery Pack [post 18/20] (SRV593-594) +$27.32

QTY: 21 Brass Connector - Male (SRV13425) +$79.32

QTY: 22 Electronic Ignition Wiring (23002) *No Longer Available* +$*0.00*

QTY: 23 High Limit Switch (SRV22922) +$62.13

QTY: 24 Ignition Control Bracket (25104A) *No Longer Available* +$*0.00*

QTY: 25 Ignition Ground Wire (25405) *No Longer Available* +$*0.00*

QTY: 26 Intermittent Pilot Assembly [post 18/20] (SRV35410) +$141.39

QTY: 27 Intermittent Pilot Ignition Control [post 18/20] (SRV593-592) +$120.68

QTY: 28 Power Supply [post 18/20] (SRV593-593) +$47.59

QTY: 29 Transformer (SRV20947) +$232.76

QTY: 30 Valve Bracket [pre18/02] (SRV31824) +$13.66

QTY: 31 Valve Bracket (26851) *No Longer Available* +$*0.00*

QTY: 32 Conversion Kit NG (DCKN) +$297.60

QTY: 33 Conversion Kit LP (DCKP) +$260.78

ITEMS NOT SHOWN - MISCELLANEOUS PARTS

Item Description (Part Number)

QTY: 40 Glass Gasket [10ft per package] (28091/10) +$76.66

QTY: 41 Glass Retainer [2 per unit, each sold separately] (26798) +$11.03

QTY: 42 Glass Clip, Bottom Only [Post 18/02] [set of 2] (33858/2) +$91.33

QTY: 43 Lava Rock Retainer (26954) *No Longer Available* +$*0.00*

QTY: 44 Nailing Flange [6 per unit, each sold separately] (SRV31190) +$13.66

QTY: 45 Screen Bracket (SRV28159) *No Longer Available* +$*0.00*

QTY: 46 Mineral Wool, Lava Rock, Vermiculite (SRV4040-094) +$139.36

QTY: 47 Lava Rock (4021-295) *No Longer Available* +$*0.00*

QTY: 48 Mineral Wool (SRV14333) +$28.72

QTY: 49 Vermiculite (28746) +$11.03

QTY: 50 Wind/Water Deflector (24920) *No Longer Available* +$*0.00*

QTY: 51 Owners Manual [hard copy] [34615] (OMHC-VC) +$9.99

QTY: 52 Owners Manual [electronic copy] [34615] (OMEL-VC) +$0.00

QTY:
