Includes Models: GNBC36, GNBC36F, GNBC36L & S.I.T
Manufactured Between January 1995 - November 2003

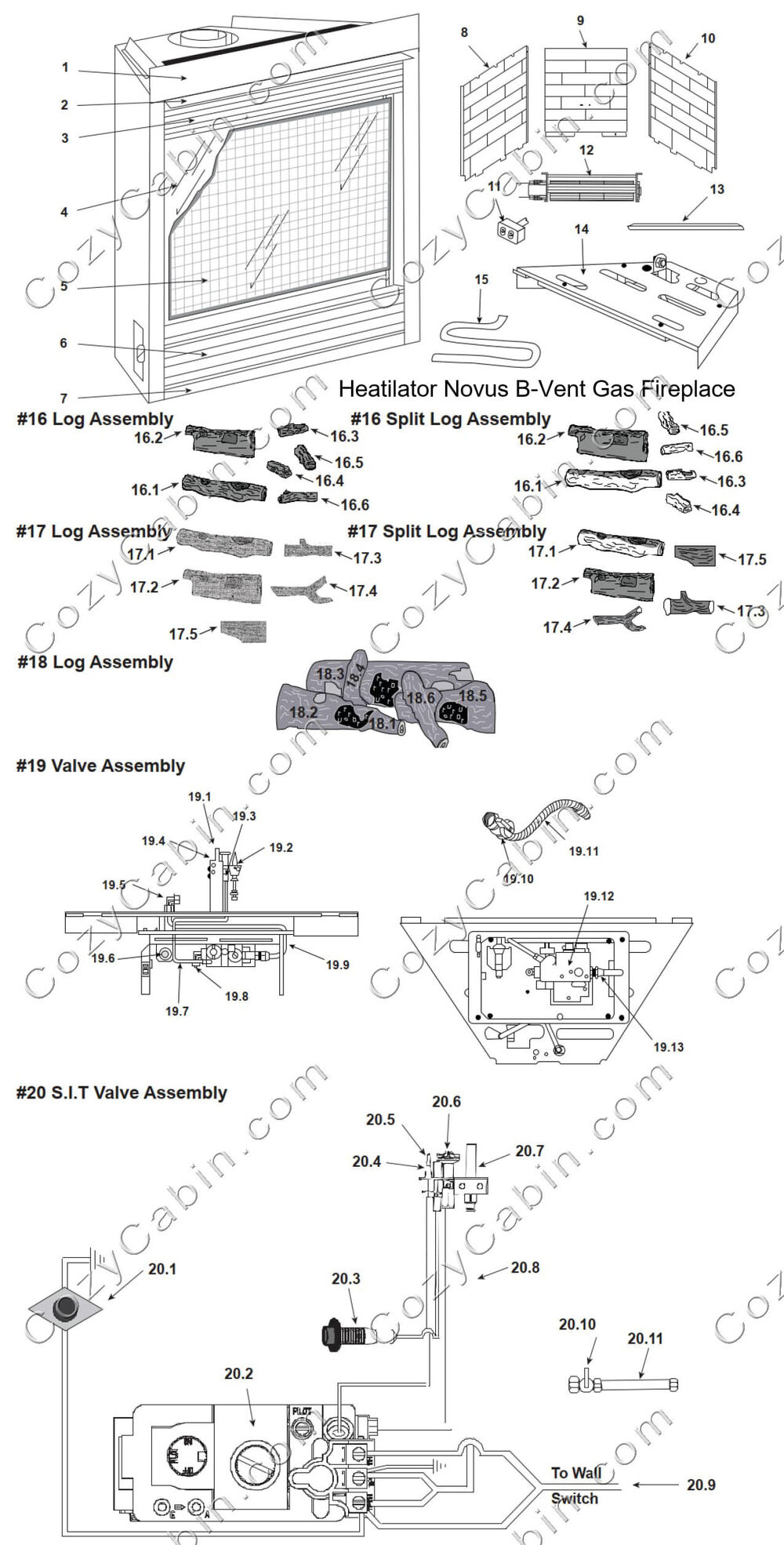

MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Face, Top Front (21549) +$123.63
QTY: 2 Hood (4031-211) *No Longer Available* +$*0.00*
QTY: 3 Grille, Upper (22123A) *No Longer Available* +$*0.00*
QTY: 4 Glass Panel Assembly (24523A) +$398.52
QTY: 5 Screen Assembly (35106) +$155.63
QTY: 6 Grille, Lower (21582) +$151.93
QTY: 7 Face, Bottom Front (21552C) *No Longer Available* +$*0.00*
QTY: Refractory Kit (25362) *No Longer Available* +$*0.00*
QTY: 8 Refractory, Left Side [Metal Liner] (26207) *No Longer Available* +$102.67
QTY: 9 Refractory, Back [Metal Liner] (28038) *No Longer Available* +$*0.00*
QTY: 10 Refractory, Right Side [Metal Liner] (26208) *No Longer Available* +$102.67
QTY: 11 Junction Box Kit (22130) +$99.97
QTY: 12 Fan Kit with Timer Circuit (GFK4B) +$327.00
QTY: 13 Ashlip (21795A) *No Longer Available* +$*0.00*
QTY: 13A Ashlip (24929) *No Longer Available* +$*0.00*
QTY: 14 Hearth Sheet (26854) *No Longer Available* +$*0.00*
QTY: 15 Burner Assembly [pre25/97] (SRV21573) +$348.64
QTY: 15A Burner Assembly [post 25/97] (26821) +$486.33
LOGSETS
Item Description (Part Number)
QTY: 16 Log Assembly (22952B) *No Longer Available* +$*0.00*
QTY: 16.1 Front Log (SRV22927) *No Longer Available* +$*0.00*
QTY: 16.2 Back Log (SRV22928) *No Longer Available* +$*0.00*
QTY: 16.3 Middle Left Log (SRV22929) *No Longer Available* +$*0.00*
QTY: 16.4 Middle Right Log (SRV22930) *No Longer Available* +$*0.00*
QTY: 16.5 Top Left Log (SRV22931) *No Longer Available* +$*0.00*
QTY: 16.6 Top Right Log (SRV23767) *No Longer Available* +$*0.00*
QTY: 16 Split Log Assembly (22953) *No Longer Available* +$*0.00*
QTY: 16.1 Front Log (SRV22932) *No Longer Available* +$*0.00*
QTY: 16.2 Back Log (SRV22928) *No Longer Available* +$*0.00*
QTY: 16.3 Middle Left Log (22933A) *No Longer Available* +$*0.00*
QTY: 16.4 Middle Right Log (SRV22934) *No Longer Available* +$*0.00*
QTY: 16.5 Top Left Log (SRV22935) *No Longer Available* +$*0.00*
QTY: 16.6 Top Right Log (22544) *No Longer Available* +$*0.00*
QTY: 17 Log Assembly (25568) *No Longer Available* +$*0.00*
QTY: 17.1 Front Log (SRV22927) *No Longer Available* +$*0.00*
QTY: 17.2 Back Log (SRV22928) *No Longer Available* +$*0.00*
QTY: 17.3 Top Left Log (25254) *No Longer Available* +$*0.00*
QTY: 17.4 Top Right Log (SRV25255) *No Longer Available* +$*0.00*
QTY: 17.5 Middle Right Log (25256A) *No Longer Available* +$*0.00*
QTY: 17 Split Log Assembly (25635) *No Longer Available* +$*0.00*
QTY: 17.1 Front Log (SRV22932) *No Longer Available* +$*0.00*
QTY: 17.2 Back Log (SRV22928) *No Longer Available* +$*0.00*
QTY: 17.3 Top Left Log (25254) *No Longer Available* +$*0.00*
QTY: 17.4 Top Right Log (SRV25255) *No Longer Available* +$*0.00*
QTY: 17.5 Middle Right Log (25256A) *No Longer Available* +$*0.00*
QTY: 18 Log/Grate Assembly [26/97 - 40/01] (29165) *No Longer Available* +$*0.00*
QTY: 18.1 Front Log (SRV27112) *No Longer Available* +$*0.00*
QTY: 18.2 Front Left Log (SRV27123) *No Longer Available* +$*0.00*
QTY: 18.3 Back Log (SRV30042) *No Longer Available* +$*0.00*
QTY: 18.4 Top Left Log (SRV27127) *No Longer Available* +$*0.00*
QTY: 18.5 Front Right Log (SRV27122) *No Longer Available* +$*0.00*
QTY: 18.6 Top Right Log (SRV27125) *No Longer Available* +$*0.00*
QTY: 18 Log/Grate Assembly [post 40/01] (34051) +$854.23
QTY: 18.1 Front Log (nla) *No Longer Available* +$*0.00*
QTY: 18.2 Front Left Log (SRV33861) *No Longer Available* +$*0.00*
QTY: 18.3 Back Log (SRV33860) *No Longer Available* +$*0.00*
QTY: 18.4 Top Left Log (SRV33864) *No Longer Available* +$*0.00*
QTY: 18.5 Front Right Log (SRV33862) *No Longer Available* +$*0.00*
QTY: 18.6 Top Right Log (SRV33863) +$214.49
BURNER ASSEMBLY
Item Description (Part Number)
QTY: 19.1 Pilot Assembly - NG [recommend using High Temp Red Silicone] (4021-732) +$194.06
QTY: 19.1A Pilot Assembly - LP [recommend using High Temp Red Silicone] (4021-733) +$193.52
QTY: 19.2 Thermocouple (SRV72956) +$63.46
QTY: 19.3 Pilot Orifice - NG (SRV446-505) +$15.06
QTY: 19.3A Pilot Orifice - LP (SRV446-517) +$16.46
QTY: 19.4 Thermopile (2103-512) +$91.33
QTY: 19.5 Brass Elbow (13908B) *No Longer Available* +$*0.00*
QTY: 19.6 Push Button Ignitor (291-513) +$27.32
QTY: 19.7 Pilot Tube Kit (26471) +$110.91
QTY: 19.8 Brass Connector, 90 degrees Flex (SRV4021-045) +$42.26
QTY: 19.9 Burner Supply Tube [pre 25-97] (26482) +$155.63
QTY: 19.9A Burner Supply Tube [post 25-97] (27002) +$53.96
QTY: 19.10 On/Off Valve (SRV15697) +$70.13
QTY: 19.11 Stainless Steel Flex Gas Line, 16 in. (SRV4121-006) +$99.34
QTY: 19.12 Valve - NG [pre 18/02] (SRV23363) +$404.32
QTY: 19.12A Valve - NG [post 18/02] (SRV24033) +$404.32
QTY: 19.12B Valve - LP [pre 18/02] (SRV25812) +$464.00
QTY: 19.12C Valve - LP [post 18/02] (SRV24034) +$411.28
QTY: 19.13 Brass Connector - Male (SRV13425) +$79.32
QTY: 19.14 Burner Orifice - NG [pre 25/97] (SRV17811) +$30.12
QTY: 19.14A Burner Orifice - NG [post 25/97] (SRV13410) +$35.73
QTY: 19.14B Burner Orifice - LP [pre 25/97] (SRV17236) +$31.52
QTY: 19.14C Burner Orifice - LP [post 25/97] (SRV13445) +$35.73
QTY: 19.15 Bulkhead [post 25/97] (26457) +$84.93
QTY: 19.16 High Limit Switch (SRV24967) +$136.69
QTY: 19.17 Pilot Support Bracket (21588) *No Longer Available* +$*0.00*
QTY: 19.18 Pilot Bracket (26872) *No Longer Available* +$*0.00*
QTY: 19.19 Valve Bracket (26793) *No Longer Available* +$*0.00*
QTY: 19.19A Valve Bracket (26851) *No Longer Available* +$*0.00*
QTY: 19.20 Wall Switch Wire Assembly (14720) *No Longer Available* +$*0.00*
QTY: 19.21 Conversion Kit NG (CKN) +$309.20
QTY: 19.21A Conversion Kit LP (CKP) +$320.80
BURNER ASSEMBLY SIT [serial # GA452519 - GA455366]
Item Description (Part Number)
QTY: 20.1 High Limit Switch (SRV24967) +$136.69
QTY: 20.2 Valve - NG (418-500) +$422.88
QTY: 20.2A Valve - LP (418-501) +$385.76
QTY: 20.3 Ignitor, Push Button (291-513) +$27.32
QTY: 20.4 Thermocouple (SRV72956) +$63.46
QTY: 20.5 Ignitor (SRV30639) *No Longer Available* +$*0.00*
QTY: 20.6 Pilot Assembly - NG (30200) +$Call to Order
QTY: 20.6A Pilot Assembly - LP (30201) +$Call to Order
QTY: 20.7 Thermopile (2103-512) +$91.33
QTY: 20.8 Pilot Supply Tube (30064) +$Call to Order
QTY: 20.9 Wall Switch Wires (14720) +$Call to Order
QTY: 20.1 On/Off Valve (SRV15697) +$70.13
QTY: 20.11 Stainless Steel Flex Gas Line, 16 in. (SRV4121-006) +$99.34
QTY: 21 Burner Orifice - NG (13844) +$26.37
QTY: 21A Burner Orifice - LP (SRV13445) +$35.73
QTY: 22 Brass Connector, 90 degrees Flex (SRV4021-045) +$42.26
QTY: 23 Brass Elbow (SRV17524) +$42.26
QTY: 24 Burner Assembly (27741) +$407.86
QTY: 25 Burner Supply Tube (27002) +$53.96
QTY: 26 Ground Wire (25405) *No Longer Available* +$*0.00*
QTY: 27 Pilot Orifice - NG (200-2420) *No Longer Available* +$*0.00*
QTY: 28 Pilot Orifice - LP (30636) *No Longer Available* +$*0.00*
QTY: 29 Pilot Bracket (26872) *No Longer Available* +$*0.00*
QTY: 30 Valve Bracket (30060) *No Longer Available* +$*0.00*
QTY: 31 Conversion Kit NG (SCKN) +$Call to Order
QTY: 32 Conversion Kit LP (SCKP) +$Call to Order
ITEMS NOT SHOWN - MISCELLANEOUS PARTS
Item Description (Part Number)
QTY: 40 Back Spacer (24864A) *No Longer Available* +$*0.00*
QTY: 41 Glass Gasket [10ft per package] (28091/10) +$76.66
QTY: 42 Glass Retainer [2 per unit, each sold separately] (26798) +$11.03
QTY: 43 Glass Clip, Bottom Only [Post 18/02] [set of 2] (33858/2) +$91.33
QTY: 44 Lava Rock Retainer (26954) *No Longer Available* +$*0.00*
QTY: 45 Nailing Flange [6 per unit, each sold separately] (SRV31190) +$13.66
QTY: 46 Screen Bracket (SRV28159) *No Longer Available* +$*0.00*
QTY: 47 Mineral Wool, Lava Rock, Vermiculite (SRV4040-094) +$139.36
QTY: 48 Lava Rock (4021-295) *No Longer Available* +$*0.00*
QTY: 49 Mineral Wool (SRV14333) +$28.72
QTY: 50 Vermiculite (28746) +$11.03
QTY: 51 Wind/Water Deflector (24920) *No Longer Available* +$*0.00*
QTY: 52 Owners Manual [hard copy] [34615] (OMHC-VC) +$9.99
QTY: 53 Owners Manual [electronic copy] [34615] (OMEL-VC) +$0.00
|
