LHEC20 (GICN-L4BO-J34KC0) The Cozy Cabin Stove & Fireplace Parts Store
Vermont Castings Wood Stove Parts, Majestic Wood Fireplace Parts, Majestic Gas Fireplace Parts, Dutchwest Wood Stove Parts, Century Wood Stove Parts, Insta-Flame Gas Stove Parts Insta-Flame Gas Fireplace Parts, Insta-Flame Gas Insert Parts, Federal Stove Parts, Monessen Gas Fireplace Parts, Monessen Gas Insert Parts, Monessen Wood Fireplace Parts

LHEC20  #GICN-L4BO-J34KC0

LHEC20


Item#: GICN-L4BO-J34KC0

Price: $.00


Order Now

Item Description (Part Number)

QTY: LOG SET COMPLETE (10005332) +$395.80

QTY: 1A-[JR7] LOG REAR LEFT (10005333) +$Call to order

QTY: 1B-[JR8] LOG REAR RIGHT (10005334) +$Call to order

QTY: 1D-LOG FRONT LEFT (10005335) +$Call to order

QTY: 1E-LOG FRONT RIGHT (10005336) +$Call to order

QTY: 2-LAVA ROCK BURNER PACKAGE (57897K) +$34.32

QTY: 4-BURNER HOUSING ASSEMBLY WITH TILES (10005294) *No longer available* Sub 4 of part #57803 tile only each sold separately +$ *0.00*

QTY: 5- CERAMIC TILE SINGLE ~Old part #57803~ (SRV57803) Would recommend purchasing a new gasket. The gasket will need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$30.12

QTY: 6A-55 ORIFICE FRONT BURNER NATURAL GAS (50998) +$11.56

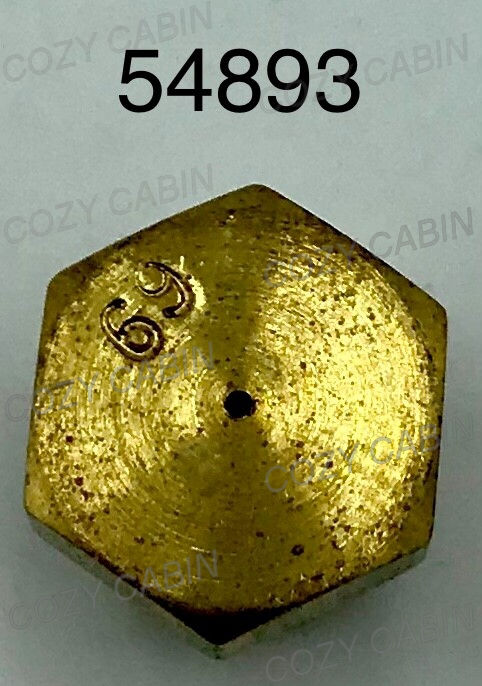

QTY: 6B-69 ORIFICE FRONT BURNER PROPANE (54893) +$11.18

QTY: 7A-49 ORIFICE REAR BURNER NATURAL GAS (54533) +$11.18

QTY: 7B-56 ORIFICE REAR BURNER PROPANE (50999) +$41.99

QTY: 8A-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT (37D0022) +$19.61

QTY: 8B-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 (37D0023) +$28.52

QTY: 9A-ORIFICE PILOT PSE NATURAL GAS (10001822) +$41.98

QTY: 9B-ORIFICE PILOT PSE PROPANE (10001823) +$20.52

QTY: 10A-PILOT ASSEMBLY SIT TOP CONVERTIBLE NATURAL GAS (10002389) +$298.45

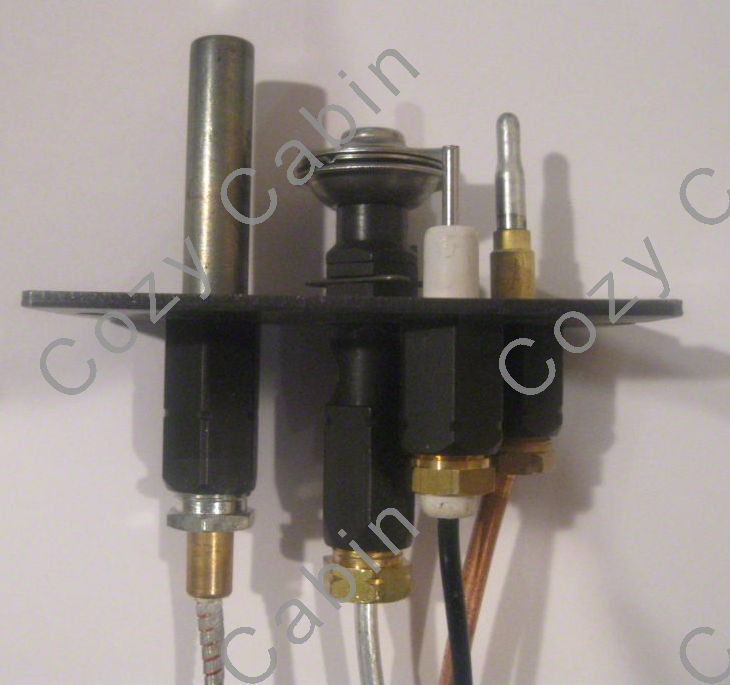

QTY: 10B-PILOT ASSEMBLY SIT TOP CONVERTIBLE PROPANE[includes: pilot, pilot tube, thermopile, thermocouple with interrupter & ignitor] (10002390) +$146.03

QTY: 11A-PILOT ASSEMBLY PSE NATURAL GAS [HONEYWELL] (10001741) +$266.71

QTY: 11B-PILOT ASSEMBLY PSE PROPANE [HONEYWELL] ~Old part #10001742, 20001116~ (20001116A) +$249.52

QTY: 12A-PILOT ASSEMBLY RFN NATURAL GAS (20002266) +$285.33

QTY: 12B-PILOT ASSEMBLY RFP [NG GAS] [MUST ORDER PROPANE ORIFICE TO CONVERT TO PROPANE GAS] (20002268) *No longer available* [This Pilot Assembly only comes NG, use part #20002266, must add 20000907 PROPANE Orifice to convert to LP] +$ *0.00*

QTY: 13A-ORIFICE PILOT HOOD-NG-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000908) +$15.06

QTY: 13B-ORIFICE PILOT HOOD-LP-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000907) +$15.06

QTY: 14-PILOT TUBE WITH FITTINGS SIT (26D0665) +$34.40

QTY: 15-MANIFOLD TUBING WITH FITTINGS [UNIVERSAL KIT- MUST BE FORMED ON SITE] (57318) +$75.32

QTY: 16-THERMOCOUPLE SIT WITH INTERRUPTOR [MUST REUSE YOUR NUT] ~Old part #54912~ (SRV54912) +$52.93

QTY: 17-THERMOCOUPLE PSE WITH INTERRUPTOR (10001828) +$76.66

QTY: 18-THERMOPILE 24IN ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 19-ELECTRODE IGNITER WITH CABLE SIT (10001297) +$28.72

QTY: 20-IGNITER PIEZO SIT ~Old Part #057958~ (057958A) +$34.32

QTY: 21-IGNITER PIEZO HONEYWELL (20000062) +$135.77

QTY: 22A-GAS VALVE SIT-MV-HI/LO NATURAL GAS ~Old part #37D0117, 37D0117A~ (230-0710) +$314.74

QTY: 22B-GAS VALVE SIT-MV-HI/LO PROPANE ~Old part #37D0118~ (SRV37D0118) +$270.74

QTY: 23A-VALVE HONEYWELL VC 8420E 2038 NATURAL GAS ~OLD PART#10001782~RN 272 HONEYWELL VALVE TO SIT RETROFIT VALVE (10008800) +$262.31

QTY: 23B-VALVE HONEYWELL VC 8420E 2038 PROPANE ~OLD PART#10001759~RP 273 HONEYWELL VALVE TO SIT RETROFIT VALVE (10008893) +$278.93

QTY: 24A-RFN VALVE NATURAL GAS [RFN HONEYWELL TO RCSITEA RETROFIT] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] ~Old Part #20003719~ (20301208) +$1064.18

QTY: 24B- RFP VALVE PROPANE [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] ~Old Part #20003720~ (20301209) +$1064.18

QTY: 25-ANTENNAE [FOR RFN/P UNITS] (20003561) +$68.25

QTY: 26-TRANSMITTER HONEYWELL [REMOTE] [Can upgrade to 20301208 NATURAL GAS or 20301209 LP] (20002047) *No longer available* +$ *0.00*

QTY: 26A- TRANSMITTER NATURAL GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] (20301208) +$1064.18

QTY: 26B- TRANSMITTER PROPANE GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] (20301209) +$1064.18

QTY: 27-THERMOPILE PSE FOR RF PILOTS ~Old Part # 20002400~~Old part #26D0566~ (SRV26D0566) 2 REQUIRED, EACH SOLD SEPARATELY +$115.34

QTY: 28-CORD SET [FOR RFN/P UNITS] (20002541) +$35.44

QTY: 29-CORD SET [FOR RN/RP UNITS] ~Old Part # 51865~ (26D0619) +$50.26

QTY: 30-FAN & BRACKET- SUB FK12 & RE-USE BRACKET ~Old part #54103~ (FK24) +$583.05

QTY: 31-FAN TEMPERATURE SENSOR [FOR RN/RP UNITS] ~Old part #51704~ (SRV51704) +$40.92

QTY: 32-FAN SPEED CONTROL SWITCH [FOR RN/RP UNITS] ~Old part #51738 (SRV51738) +$75.32

QTY: 33-SPEED CONTROL KNOB [FOR RN/RP UNITS] (51882) +$26.61

QTY: 34-GLASS WITH GASKET ASSEMBLY (10005525) +$Call to order

QTY: 35-GLASS GASKET [12FT PKG] ~Old part #10000992~ (10000992K/12) +$124.68

QTY: 36-WINDOW METAL FRAME ONLY (10005067) +$Call to order

QTY: 36-FRAME WINDOW WITH GLASS & GASKET (10004703) +$Call to order

QTY: 37-REMOTE SWITCH [FOR RN/RP UNITS] ~Old Part # 53606~ (30000874) +$10.86

QTY: 38-REMOTE WIRE HARNESS [FOR RN/RP UNITS] (10002582) +$28.72

QTY: 39-CERAMIC FIBRE BRICK FP [OPTIONAL] (JT1TC0) +$Call to order

QTY: 40-BRACKET SENSOR (10004980) +$11.18

QTY: 41-FLEXIBLE CONNECTOR [6IN] (10005098) +$35.40

QTY: 42-BRACKET REAR LOG ASSEMBLY (10005369) +$Call to order

QTY: 44-GASKET COVER SENSOR ACCESS (10005007) +$Call to order

QTY: 46-HINGE (52356) *No Longer Availablei* +$*0.00*

QTY: 47-SHIELD HEAT PILOT ~Old part #10000248~ (10000248K) +$13.66

QTY: 48-SENSOR SAFETY SWITCH ASSEMBLY (10005074) +$Call to order

QTY: 49-GRATE ASSEMBLY FLAT BLACK (10004967) +$28.72

QTY: 50-SENSOR SPILL SWITCH ~Old part #51866 (SRV51866) +$191.97

QTY: 51-BRACKET ON/OFF SWITCH (10005035) +$58.12

QTY: 52-WIRING SAFETY SWITCH (10005073) +$Call to order

QTY: 59-FIREBOX BAFFLE (10005083) +$Call to order

QTY: 58-DRAFTHOOD ASSEMBLY (10004635) +$Call to order

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 60-PIEZO BRACKET SIT ~Old part #52533 (52533K) +$25.92

QTY: 61-SCREW PIEZO BRACKET SIT ~Old part #52534~ (52534A) +$16.46

QTY: 62-BRACKET SUPPORT CR (10005590) 2 REQUIRED, EACH SOLD SEPARATELY +$Call to order

QTY: 63-MANIFOLD ASSEMBLY (10003207) +$59.46

QTY:
