33LDVT  #GFTE-N-L2I0

33LDVT


Item# GFTE-N-L2I0     Price: $0.00

Item Description (Part Number)

QTY: 1- LOG SET 33LDVR/T (10007567) +$262.34

QTY: 1A- LOG A43 FRONT LEFT (10007565) +$48.47

QTY: 1E- LOG A41 REAR LEFT (10007563) +$79.89

QTY: 1F- LOG A42 REAR RIGHT (10007564) +$Call to order

QTY: 1G- LOG A44 TOP CENTRE (10007566) +$Call to order

QTY: 1I- LAVA ROCK PACKAGE- 1LB ~Old Part #s 10001454, 00F0540~ (SRV00F0540) +$34.40

QTY: 1K- EMBER PACKAGE- ~Old part #51915K ~ (58D0443) +$12.26

QTY: 2B- BURNER HOUSING ASSEMBLY PROPANE [Can sub 3 Ceramic Burner Tiles SRV57803] (10007558) *No Longer Available* +$ *0.00*

QTY: 3- CERAMIC BURNER TILE [3 required, each sold separately] ~Old part #57803~ (SRV57803) Would recommend purchasing a new gasket. The gasket will need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$30.12

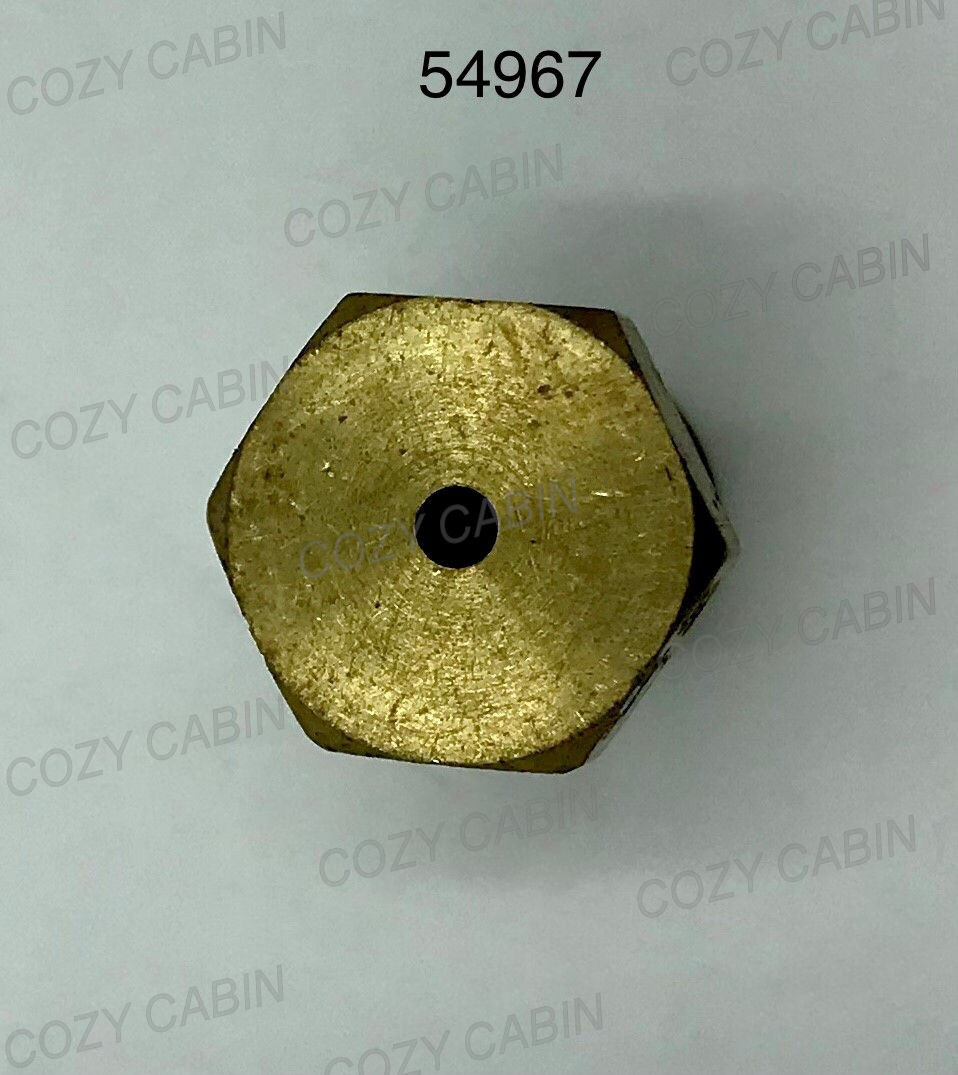

QTY: 4A- ORIFICE HOLLOW HEX 48 (54967) +$41.99

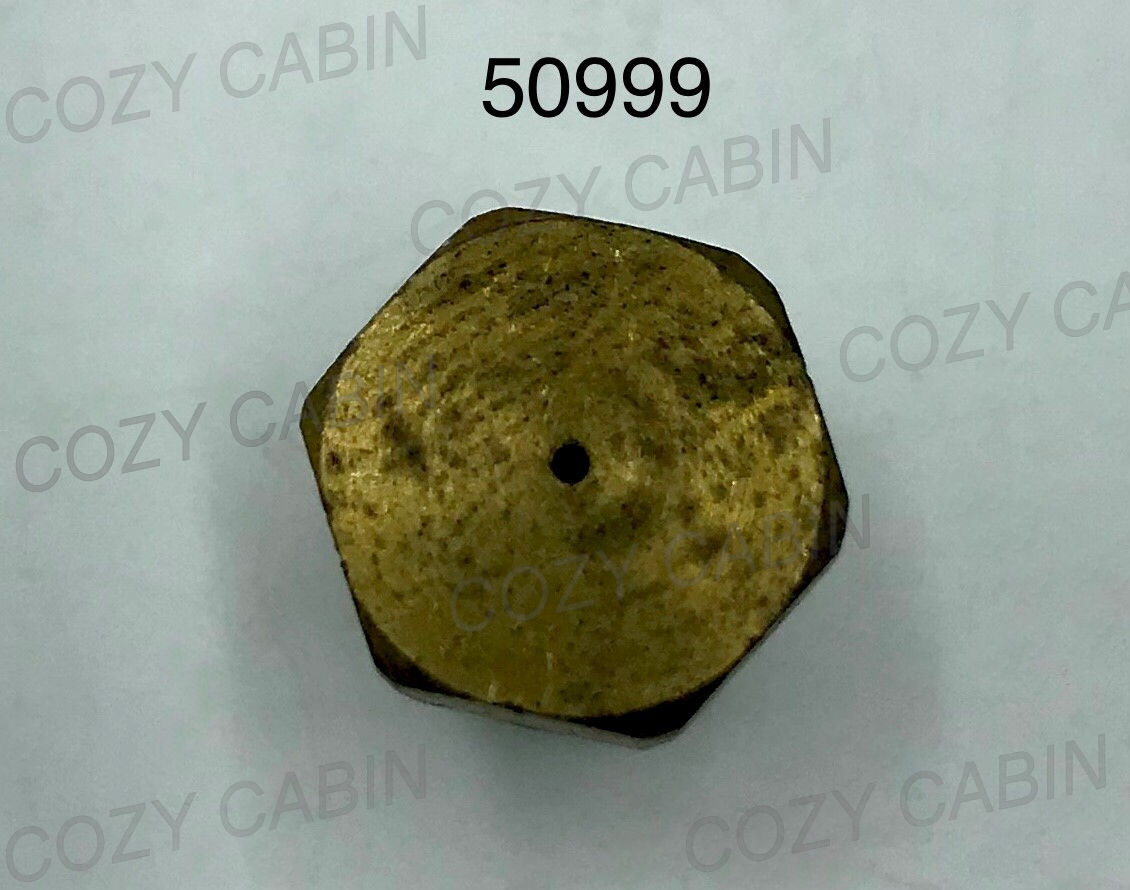

QTY: 4B- ORIFICE HOLLOW HEX 56 (50999) +$41.99

QTY: 5A- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT (37D0022) +$19.61

QTY: 5B- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 (37D0023) +$28.52

QTY: 6A- PILOT ASSEMBLY 3-way N/DV RN TOP (Call for part #) +$Call to order

QTY: 7A- PILOT ASSEMBLY 3-way EN TOP CONVT (10002387) +$136.69

QTY: 7B- PILOT ASSEMBLY 3-way EP TOP CONVT (10002388) *No longer available* [CAN SUB (1) 10002387 TOGETHER WITH (1) 37D0023] +$ *0.00*

QTY: 8- PILOT TUBE WITH FITTINGS SIT (26D0665) +$34.40

QTY: 9- HOOD PILOT 3-way TOP CONV ~Old part #10002385~ (37D0018K) +$132.69

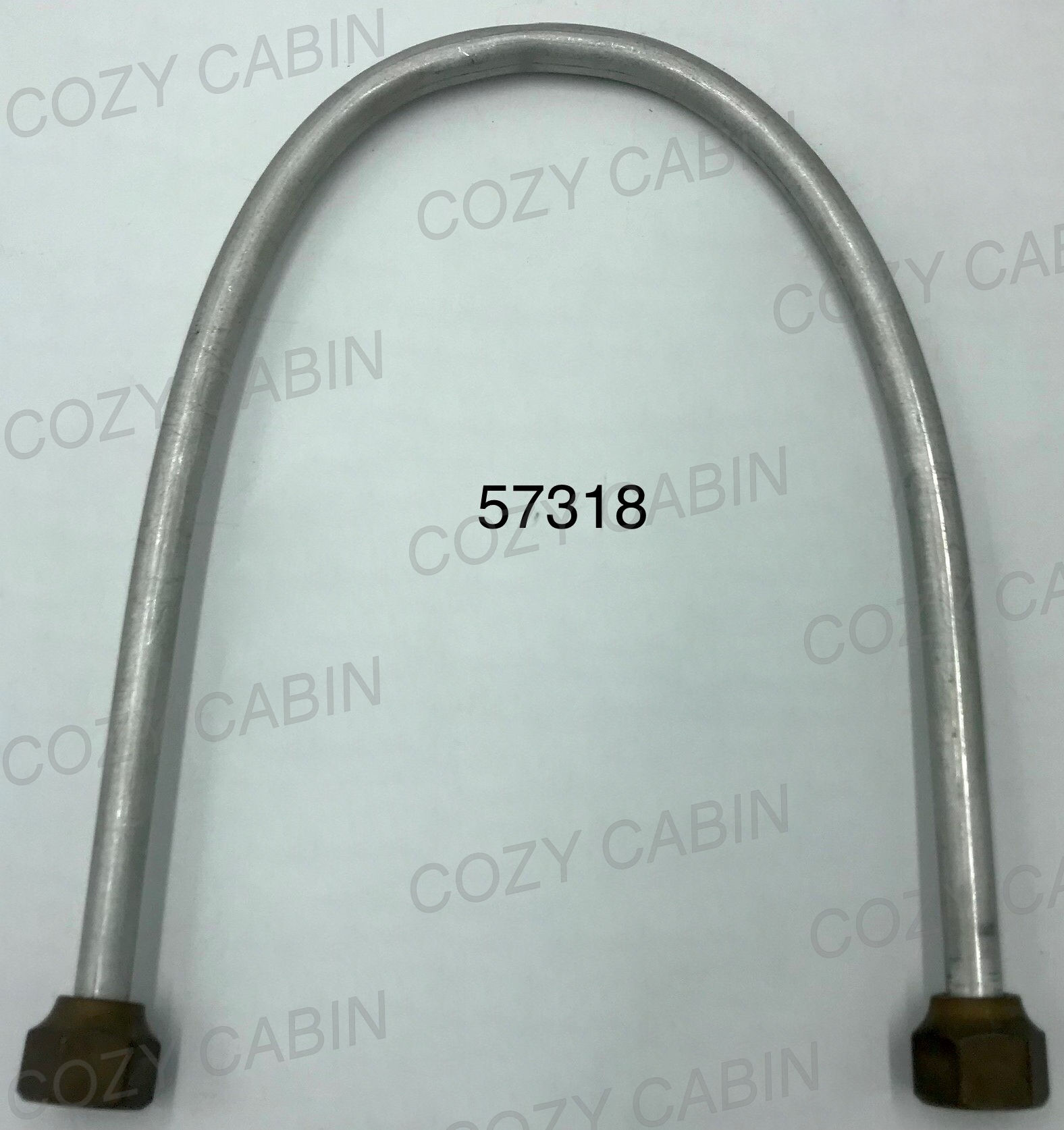

QTY: 10- TUBING MANIFOLD WITH FIT REPL R (57318) +$75.32

QTY: 11- THERMOCOUPLE 24IN SIT MILLIVOLT ~Old part #24D0808~ (SRV24D0808) +$43.59

QTY: 12- THERMOPILE 24IN ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 13- ELECTRODE IGNITOR WITH CABLE 24 (10001297) +$28.72

QTY: 14- ELECTRODE IGNITOR (52465) +$16.46

QTY: 15- CABLE ELECTRODE WITH 1/4 FAST-ON (10000696) *No longer available* +$ *0.00*

QTY: 16- SENSING ELECTRODE WITH CABLE (57885) +$32.92

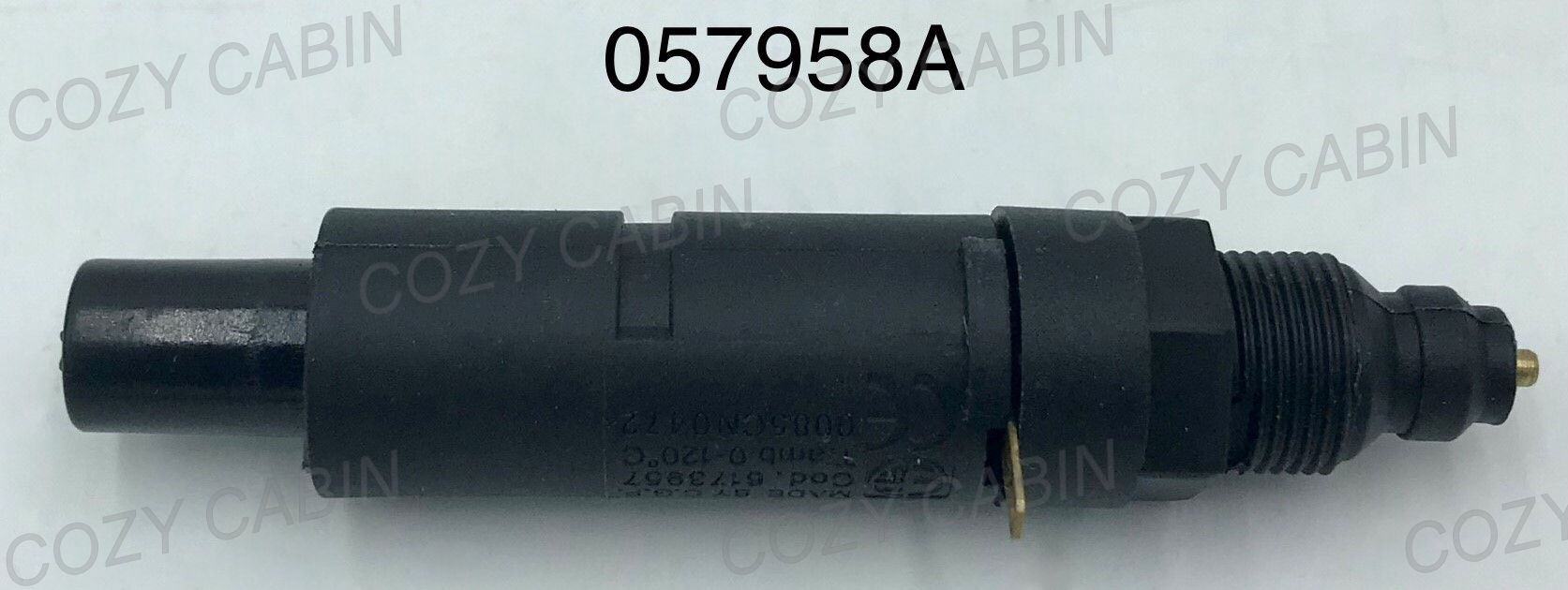

QTY: 17- IGNITOR PIEZO WITH NUT SIT ~Old Part #057958~ (057958A) +$34.32

QTY: 18A- GAS VALVE SIT-MV-HI/LO NATURAL GAS ~Old part #37D0117, 37D0117A~ (230-0710) +$314.74

QTY: 18B- GAS VALVE SIT-MV-HI/LO PROPANE ~Old part #37D0118~ (SRV37D0118) +$270.74

QTY: 19A- VALVE ELECTRONIC IGNITION NATURAL GAS ~Old Part # 37D0016~ (SRV37D0016) +$593.18

QTY: 19B- VALVE EP SIT 0 822 631 (37D0017) *No Longer Available* +$ *0.00*

QTY: 20- CONNECTOR 19 FLEX WITH ADAPTOR ~Old part #20002500~ (SRV20002500) +$68.80

QTY: 21- FAN & BRACKET- SUB FK12 & RE-USE BRACKET ~Old part #54103~ (FK24) +$583.05

QTY: 22-FAN AND CORD 160CFM (FK12) +$405.80

QTY: 23- ELECTRICAL CORD [6FT]1 ~Old Part # 51865~ (26D0619) +$50.26

QTY: 24- SENSOR TEMP FAN SWITCH ~Old part #51704~ (SRV51704) +$40.92

QTY: 25- SWITCH FAN SPEED CONTROL KBWC ~Old part #51738 (SRV51738) +$75.32

QTY: 26- KNOB BLACK (51882) +$26.61

QTY: 27- GLASS WITH GASKET ASSEMBLY (10007391K) +$Call to order

QTY: 28-GLASS GASKET [12FT PKG] ~Old part #10000992, 10000992K ~ (10000992K/12) +$124.68

QTY: 29- FRAME WINDOW WITH GLASS ASSEMBLY (10009693K) +$Call to order

QTY: 30- CLAMP FRAME WINDOW (54174) *No longer available* +$ *0.00*

QTY: 31- LOUVER TOP ASSEMBLY (10007400K) *No longer available* +$ *0.00*

QTY: 32- LOUVER BOTTOM ASSEMBLY (10007397K) +$52.38

QTY: 33A- SUPPORT FRONT LOG (10007562) +$Call to order

QTY: 33B- SWITCH WALL ON/OFF 1101-CW (51842) +$29.49

QTY: 34- PLATE RELIEF WITH GASKET ASSEMBLY B/T (10004192K) +$147.36

QTY: 35- REMOTE SWITCH KIT SWITCH WIRE & BRACKET (53875) +$67.64

QTY: 37- SYNETEK IGNITION MODULE EN_EP (10007940) *No longer available* +$ *0.00*

QTY: 38- CFM WIRE REQ T EN/EP LOW VOLT (10008139) +$ *0.00*

QTY: 39- CFM WIRE REQ T EN/EP HIGH VOLT (10008140) +$ *0.00*

QTY: 40- PIN CLEVIS (10008615) +$13.10

QTY: 41- CLIP PIN HITCH (10008616) +$13.10

QTY: 43- DEFLECTOR CABINET TOP (10007362) +$Call to order

QTY: 44- GASKET PLATE COVER FLUE PIPE (10002237) +$16.46

QTY: 45- PLATE FLUTE PIPE ASSEMBLY 123 5 (10004933) +$Call to order

QTY: 46- BRACKET BOTTOM LOUVER (10008614) +$11.18

QTY: 47- FRAME WIN ASSEMBLY (10007399) +$Call to order

QTY: 48- NUT 3/8 ID BRASFLARE SHORT406 (52857) +$13.66

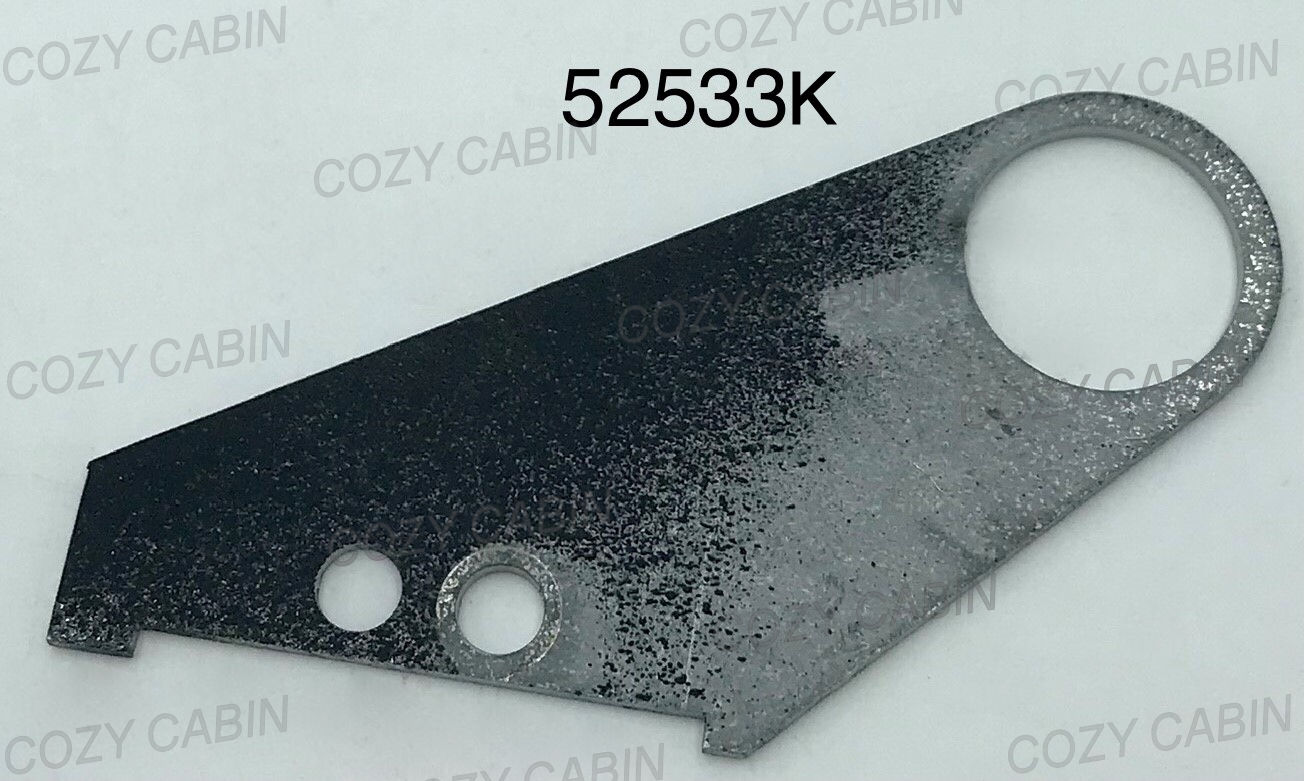

QTY: 49- BRACKET-PIEZO IGNITOR SIT 0 978 ~Old part #52533 (52533K) +$25.92

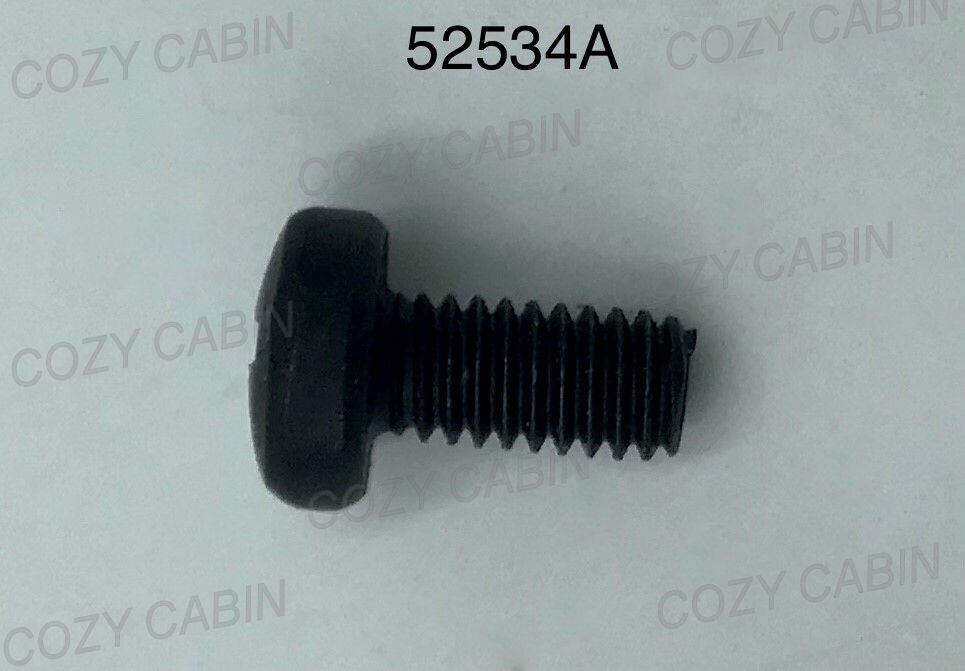

QTY: 50- SCREW BRACKET PIEZO SIT ~Old part #52534~ (52534A) +$16.46

QTY: 51- PILOT ASSEMBLY 3-way PROPANE GAS [SIT] ~Old part #10002265~ (SRV10002265) +$138.02

QTY: 52- PLATE RELIEF WITH GASKET ASSEMBLY (10007396) +$Call to order

QTY: 53- 33LDV CONVERSION KIT NATURAL GAS TO PROPANE (10008233) +$287.58

QTY: 54- 33LDV CONVERSION KIT PROPANE TO NATURAL GAS (10008234) +$Call to order

QTY: 55- COVER IGNITION MODULE (10008350) +$42.26
