36XDV

QTY: 1 Log Set Complete (10007900) *No Longer Available* +$*0.00*

QTY: 1B Log Rear Left [B141] (10007894) *No Longer Available* +$*0.00*

QTY: 1C Log Rear Right [B142] (10007895) *No Longer Available* +$*0.00*

QTY: 1D Log Front Left [B143] (10007896) *No Longer Available* +$*0.00*

QTY: 1E Log Front Right [B146] (10007899) +$Call to Order

QTY: 1F Log Front Center [B144] (10007897) +$Call to Order

QTY: 1G Log Top Left [B145] (10007898) *No Longer Available* +$*0.00*

QTY: 2 Volcanic Black Lava Rock ~Old Part #s 10001454, 00F0540~ (SRV00F0540) +$59.19

QTY: 3 Lava Rock Burner (57897K) +$52.60

QTY: 3A Ember Package ~Old Part #10000550K ~ (81D2509K) +$35.07

QTY: 4 Bracket Rear Log Assembly Black (10007778) +$Call to Order

QTY: 6 Grate Assembly Black (10007728) +$Call to Order

QTY: 7A Burner Housing Rear Assembly NG/LP (10007848) +$Call to Order

QTY: 7B Burner Housing Front Assembly NG/LP (10007847) +$Call to Order

QTY: 9A Ceramic Tile [Single] 133 X 46 MM (10007454) +$Call to Order

QTY: 9B Ceramic Tile Single ~Old Part #57803~ (SRV57803) recommend replacing a new Gasket. the Gasket will Need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$47.13

QTY: 10 Manifold Assembly (10007472) +$Call to Order

QTY: 11 Refractory Cottage Red Kit (10007930) *No Longer Available* +$*0.00*

QTY: 12 Glass Only [Gasket sold separately] (10007488) +$332.87

QTY: 13 Glass Gasket [12ft per package] ~Old Part #10000992, 10000992K ~ (10000992K/12) +$140.72

QTY: 14 Frame Window with Glass Assembly (10007490) +$Call to Order

QTY: 15 Window Metal Frame Only (10007093) +$Call to Order

QTY: 16 Clamp Frame Window (54174) *No Longer Available* +$*0.00*

QTY: 17 Top Louver Assembly (10007090K) *No Longer Available* +$*0.00*

QTY: 18 Bottom Louver Assembly (10007092K) *No Longer Available* +$*0.00*

QTY: 19 Hood Burner (10007628) +$Call to Order

QTY: 20A Orifice Rear Burner Natural Gas 42 (54866) +$41.99

QTY: 20B Orifice Rear Burner Propane 54 (50701) +$41.98

QTY: 21A Orifice Front Burner Natural Gas 54 (50701) +$41.98

QTY: 21B Orifice Front Burner Propane 64 (54672) +$41.99

QTY: 22 Rocker Switch ~Old Part # 53606~ (30000874) +$11.68

QTY: 23 Switch On/Off (51842) +$48.29

QTY: 24A Pilot Injector [Orifice] [Screw-In] Top Convertible Natural Gas #62 SIT (37D0022) +$19.61

QTY: 24B Pilot Injector [Orifice] [Screw-In] Top Convertible Propane #35 ~Old Part # 37D0023~ (SRV200-2630) +$34.99

QTY: 25A 3-Way Top Convertible Pilot Assembly NG-SIT [includes: Thermopile, Thermocouple, Pilot, Pilot Tube & Electrode with Wire] (Call for Part #) +$Call to Order

QTY: 25B-Pilot Assembly 3-Way Propane Gas [SIT] ~Old Part #10002265~ (SRV10002265) +$170.62

QTY: 26A Pilot Assembly SIT EN [recommend using High Temperature Red Silicone]~Old Part # 10002387~ (SRV4121-264) +$323.44

QTY: 26B Pilot Assembly SIT EP (10002388) *No Longer Available* [can Sub (1) 10002387 together with (1) SRV200-2630] +$*0.00*

QTY: 27 Pilot Tube with Fittings SIT (26D0665) +$41.66

QTY: 28 Pilot Hood ~Old Part #10002385~ (37D0018K) +$170.62

QTY: 29 Thermocouple 24 Inches SIT Millivolt ~Old Part #24D0808~ (SRV24D0808) +$61.93

QTY: 30 Thermopile 24 Inches ~Old Part #26D0566~ (SRV26D0566) +$143.72

QTY: 31 Electrode Igniter with Cable RN/RP (10001297) +$32.69

QTY: 32 Electrode Igniter EN/EP (52465) +$24.69

QTY: 33 Cable Igniter EN/EP (10000696) *No Longer Available* +$*0.00*

QTY: 34 Sensing Electrode EN/EP (57885) +$41.52

QTY: 35 Igniter Piezo with Nut SIT (50932) +$51.33

QTY: 36A Orifice Pilot Hood-NG-PSE Honeywell [FITS between the Pilot Assembly and the Pilot Tube] (20000908) +$15.06

QTY: 36B Orifice Pilot Hood-LP-PSE Honeywell [FITS between the Pilot Assembly and the Pilot Tube] (20000907) +$29.06

QTY: 37A Pilot Assembly RF Natural Gas (20002266) +$344.15

QTY: 37B Pilot Assembly RF NG [recommend using Hi Temperature Silicone] ~Old Part # 20002268~ (20002266) [use 20000907 Propane Orifice to convert to LP] +$344.15

QTY: 38 Thermopile ~Old Part #s 20002400, 26D0566~ (SRV26D0566) +$143.72

QTY: 39 Pilot Tube Long with Fittings [Universal] (10003279) +$32.69

QTY: 40 Igniter Piezo Honeywell (20000062) +$165.77

QTY: 41A Gas Valve SIT-MV-Hi/Low Natural Gas ~Old Part #s 37D0117, 37D0117A, 230-0710~ (SRV230-0710) +$285.39

QTY: 41B Gas Valve SIT-MV-Hi/Low Propane ~Old Part #37D0118~ (SRV37D0118) +$292.74

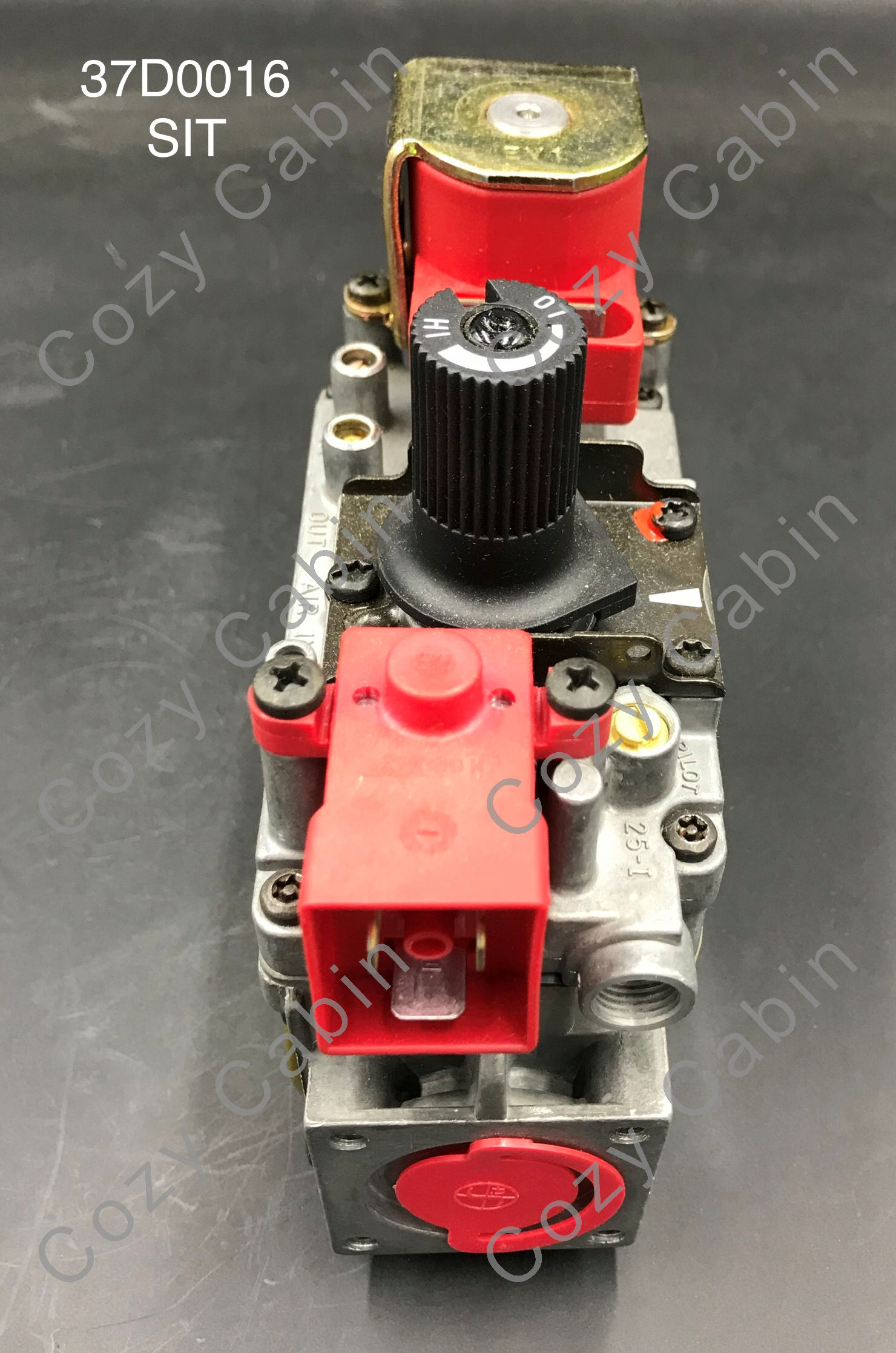

QTY: 42A Valve NOVA SIT 822.632 EN ~Old Part # 37D0016~ (SRV37D0016) +$593.18

QTY: 42B Valve NOVA SIT 822.631 EP (37D0017) *No Longer Available* +$*0.00*

QTY: 43A RFN Valve to RCSITEA Conversion Natural Gas [Honeywell Comfort Control Gas Valve to SIT Retrofit Gas Valve] [includes: Valve, Valve Stepper, Pilot Assembly, Remote, Control Center & Regulator] ~Old Part #20003719~ (20301076) +$964.00

QTY: 43B RFP Valve Conversion Kit Propane Gas [Honeywell Comfort Control Gas Valve to SIT Retrofit Gas Valve] [includes: Valve, Valve Stepper, Pilot Assembly, Remote, Control Center & Regulator] ~Old Part #20003720~ (20301077) +$964.00

QTY: 44 Flexible Gas Line with Shut-Off Valve ~Old Part #20002500~ (SRV20002500) +$93.13

QTY: 45 Manifold Tubing with Fittings (57318) +$100.96

QTY: 46 Fan Kit Assembly ~Old Part #GAFA2E0~ (FK24) +$529.20

QTY: 47 Fan and Cord 160CFM (FK12) +$439.15

QTY: 48 Fan & Bracket Sub FK12 & reuse Bracket ~Old Part #54103~ (FK24) +$529.20

QTY: 49 Electrical Cord [6 ft] ~Old Part #s 51865, 26D0619~ (SRV26D0619) +$63.29

QTY: 50 Fan Temperature Sensor [FK24] ~Old Part #51704~ (SRV51704) +$59.19

QTY: 51 Speed Control [FK24] ~Old Part #51738 (SRV51738) +$106.81

QTY: 52 Speed Control Knob [FK24] (51882) +$26.61

QTY: 53 Remote Switch Kit Switch Wire & Bracket (53875) +$67.64

QTY: 54 Gasket Plate Air Inlet (1000706) +$Call to Order

QTY: 55 Gasket Plate Cover Flue Products (10002233) +$11.18

QTY: 56 Gasket Plate Cover Flue Pipe (10002237) +$18.34

QTY: 57-Gasket Burner Base ~Old Part # 10007087~ (CFPAP1/8-48-65-2) +$33.42

QTY: 58 Relief Plate Assembly [Burner Base] (10004192K) +$160.63

QTY: 59 Relief Plate Assembly (10002429K) *No Longer Available* +$*0.00*

QTY: 60A Label Console (10006496) +$Call to Order

QTY: 60B Label Console RF Valve (10006824) +$Call to Order

QTY: 61A Console with Stud Assembly Black (10006807) +$Call to Order

QTY: 61B Console RF Valve (10006795) +$Call to Order

QTY: 62 Transmitter Honeywell [Remote][Can upgrade to 20301076 Natural Gas or 20301077 LP] (20002047) *No Longer Available* +$*0.00*

QTY: 62A Transmitter Natural Gas [Honeywell Comfort Control Gas Valve to SIT Retrofit Gas Valve] [includes: Valve, Valve Stepper, Pilot Assembly, Remote, Control Center & Regulator] (20301076) +$964.00

QTY: 62B Transmitter Propane Gas [Honeywell Comfort Control Gas Valve to SIT Retrofit Gas Valve] [includes: Valve, Valve Stepper, Pilot Assembly, Remote, Control Center & Regulator] (20301077) +$964.00

QTY: 63 Cord Set RF Valve (20002541) +$35.44

QTY: 64 Antenna RFN/RFP (20003561) +$68.25

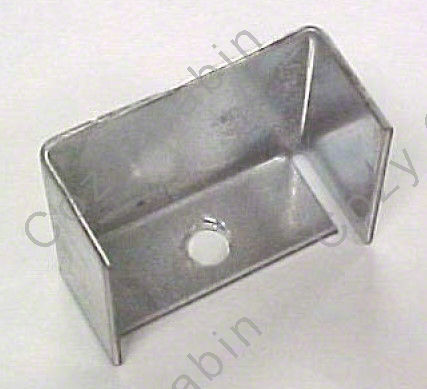

QTY: 65 Heat Shield Pilot ~Old Part #10000248~ (10000248K) +$18.21

QTY: 66 Ignition Control Synetek EN/EP (10007940) *No Longer Available* +$*0.00*

QTY: 67 Wire Harness [Low Voltage] Synetek EN/EP (10008139) *No Longer Available* +$*0.00*

QTY: 68 Wire Harness Synetek EN/EP (10008140) *No Longer Available* +$*0.00*

QTY: 69 Electrical Cord [6 ft] Ignition Control (10008298) *No Longer Available* +$*0.00*

QTY: 70 Clevis Pin (10008615) *No Longer Available* +$*0.00*

QTY: 71 Clip Pin Hitch (10008616) *No Longer Available* +$*0.00*

QTY: 72 NG to Propane Conversion Kit 36XDVRN/EN [fits SIT Valves Only] (10008243) +$287.58

QTY: 73 NG to Propane Conversion Kit 36XDVRFN (10008276) +$547.85

QTY: 74 LP to Natural Gas Conversion Kit 36XDVRP/EP (10008244) *No Longer Available* +$*0.00*

QTY: 75 LP to Natural Gas Conversion Kit 36XDVRFP (10008277) *No Longer Available* [can Sub (1 of each) 20301077, 54866, 50701, 10001117] +$*0.00*

QTY: 76 Deflector Cabinet Top (10007091) +$Call to Order

QTY: 77 Zero Clearance Sleeve (54623) +$31.35

QTY: 78 Rear Vent Firestop ~Old Part # 52523~ (52523K) +$51.23

QTY: 79 Cover Ignition Module (10008350) *No Longer Available* +$*0.00*

QTY: 80 Synetek Module Assembly with Harnesses (10007940) *No Longer Available* +$*0.00*
