36XDV  #GFDE-I-N3J1-GFDL3J0-GFDJ5J0

36XDV


Item# GFDE-I-N3J1-GFDL3J0-GFDJ5J0     Price: $0.00

Item Description (Part Number)

QTY: 1- LOG SET [COMPLETE] (10009367) *No Longer Available* +$*0.00*

QTY: 1A- LOG REAR [B152] (10009361) +$Call to order

QTY: 1B- LOG CENTER RIGHT [B153] (10009362) +$Call to order

QTY: 1C- LOG RIGHT TOP [B154] (10009363) +$Call to order

QTY: 1D- LOG FRONT [B155] (10009364) +$Call to order

QTY: 1E- LOG CROSSOVER CENTER [B156] (10009365) +$Call to order

QTY: 1F- LOG LEFT TOP [B157] (10009396) +$Call to order

QTY: 2- VOLCANIC LAVA ROCK [1LB PACKAGE] ~Old Part #s 10001454, 00F0540~ (SRV00F0540) +$34.40

QTY: 3- EMBER PACKAGE- ~Old part #51915K ~ (58D0443) +$12.26

QTY: 4- BRACKET REAR LOG ASSEMBLY BLACK (10008856) +$Call to order

QTY: 5- GRATE ASSEMBLY BLACK (10008831) +$Call to order

QTY: 6A- BURNER HOUSING ASSEMBLY NATURAL GAS (10008864) +$Call to order

QTY: 6B- BURNER HOUSING ASSEMBLY PROPANE (10010125) +$Call to order

QTY: 7- BRACKET SUPPORT CANTER LOG ASSEMBLY (10009024) *No longer available* +$ *0.00*

QTY: 8- ANGLE FRONT LOG SUPPORT ASSEMBLY (10009142) +$Call to order

QTY: 9- BI-METAL AIR SHUTTER (10009140) +$Call to order

QTY: 10- CERAMIC TILE SINGLE ~Old part #57803~ (SRV57803) Would recommend purchasing a new gasket. The gasket will need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$30.12

QTY: 11- BURNER TUBE ASSEMBLY (10009157) +$Call to order

QTY: 12- FRAME WINDOW WITH GLASS ASSEMBLY (10007490) +$Call to order

QTY: 12A- GLASS ONLY [GASKET SOLD SEPARATELY] (10007488) +$300.87

QTY: 12B- GLASS GASKET [12FT PKG] ~Old part #10000992, 10000992K ~ (10000992K/12) +$124.68

QTY: 12C- WINDOW METAL FRAME ONLY (10007093) +$Call to order

QTY: 13- CLAMP FRAME WINDOW (54174) *No longer available* +$ *0.00*

QTY: 14- LOUVER ASSEMBLY TOP ~No longer available~ (10007090K) +$ *0.00*

QTY: 15- LOUVER ASSEMBLY BOTTOM ~No longer available~ (10007092K) +$ *0.00*

QTY: BOTTOM LOUVER BRACKET (10008614) +$11.18

QTY: 16- BRACKET BURNER TUBE (10009155) +$Call to order

QTY: 17A- ORIFICE REAR BURNER 42 NATURAL GAS (54866) +$41.99

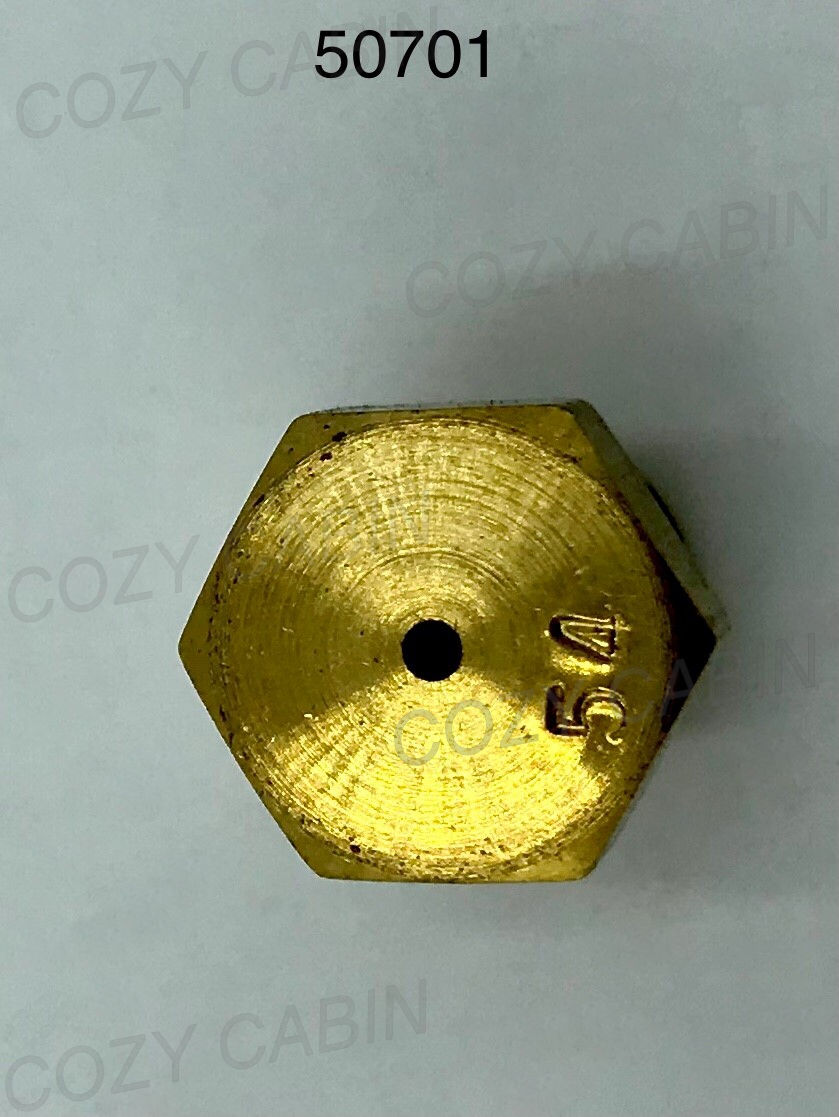

QTY: 18A- ORIFICE FRONT BURNER 54 NATURAL GAS (50701) +$41.98

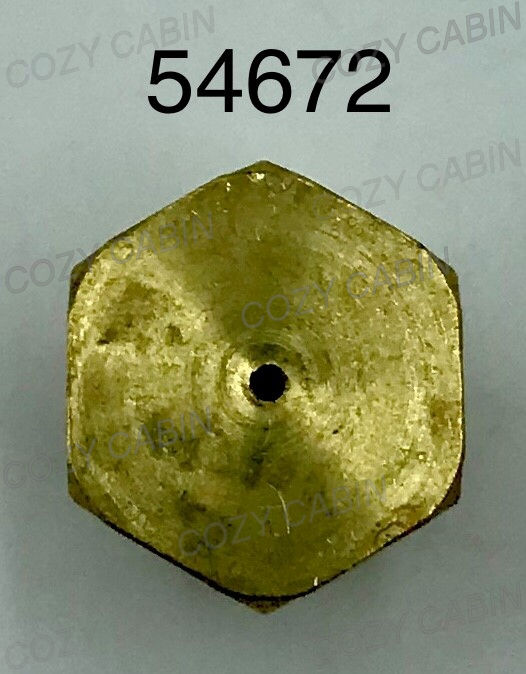

QTY: 18B- ORIFICE FRONT BURNER 64 PROPANE (54672) +$41.99

QTY: 19- SWITCH ROCKER ~Old Part # 53606~ (30000874) +$10.86

QTY: 20- REMOTE SWITCH KIT (20010793) +$Call to order

QTY: 21A- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT (37D0022) +$19.61

QTY: 21B- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 (37D0023) +$28.52

QTY: 22A- 3-way Top Convertible Pilot Assembly - NG-SIT [Includes: thermopile, thermocouple, pilot, pilot tube & electrode with wire] (Call for part #) +$Call to order

QTY: 22B-PILOT ASSEMBLY 3-way PROPANE GAS [SIT] ~Old part #10002265~ (SRV10002265) +$138.02

QTY: 23A- PILOT ASSEMBLY EN (10002387) +$136.69

QTY: 23B- PILOT ASSEMBLY EP (10002388) *No longer available* [CAN SUB (1) 10002387 TOGETHER WITH (1) 37D0023] +$ *0.00*

QTY: 24- PILOT TUBE WITH FITTINGS SIT (26D0665) +$34.40

QTY: 25- PILOT HOOD- ~Old part #10002385~ (37D0018K) +$132.69

QTY: 26- THERMOCOUPLE 24IN SIT MILLIVOLT ~Old part #24D0808~ (SRV24D0808) +$43.59

QTY: 27- THERMOPILE 24IN ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 28- ELECTRODE IGNITOR WITH CABLE RN/RP (10001297) +$28.72

QTY: 29- ELECTRODE IGNITOR EN/EP (52465) +$16.46

QTY: 30- CABLE ELECTRODE EN/EP (10000696) *No longer available* +$ *0.00*

QTY: 31- SENSING ELECTRODE EN/EP (57885) +$32.92

QTY: 32- IGNITOR PIEZO WITH NUT SIT RN/RP (50932) +$31.33

QTY: 33A- ORIFICE PILOT HOOD-NG-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000908) +$15.06

QTY: 33B- ORIFICE PILOT HOOD-LP-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000907) +$15.06

QTY: 34A- PILOT ASSEMBLY RFN (20002266) +$285.33

QTY: 34B- PILOT ASSEMBLY RFP [NG GAS] [MUST ORDER PROPANE ORIFICE TO CONVERT TO PROPANE GAS] (20002268) *No longer available* [This Pilot Assembly only comes NG, use part #20002266, must add 20000907 PROPANE Orifice to convert to LP] +$ *0.00*

QTY: 34C- ORIFICE PILOT HOOD-LP-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000907) +$15.06

QTY: 36- PILOT TUBE LONG WITH FITTINGS [UNIVERSAL] (10003279) +$28.72

QTY: 37- IGNITOR PIEZO HONEYWELL (20000062) +$135.77

QTY: 38- VALVE SIT 820.662 NATURAL GAS (20010563) +$200.92

QTY: 38- VALVE SIT 820.707 PROPANE (20010645) +$216.27

QTY: 39- VALVE SIT 822.634 [EN] ~Old Part # 20011013~ (37D0016) +$269.98

QTY: 40A- RFN VALVE TO RCSITEA CONVERSION NATURAL GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] ~Old Part #20003719~ (20301076) +$1064.18

QTY: 40B- RFP VALVE CONVERSION KIT - PROPANE GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] ~Old Part #20003720~ (20301077) +$1064.18

QTY: 41- FLEXIBLE GAS LINE WITH SHUT-OFF ~Old part #20002500~ (SRV20002500) +$68.80

QTY: 42- MANIFOLD TUBING WITH FITTINGS [UNIVERSAL KIT MUST BE FORMED ON SITE] (57318) +$75.32

QTY: 43- FAN KIT ASSEMBLY. FK24 [OPTIONAL] (GAFA2E0) +$Call to order

QTY: 44-FAN AND CORD 160CFM (FK12) +$405.80

QTY: 45- FAN & BRACKET- SUB FK12 & RE-USE BRACKET ~Old part #54103~ (FK24) +$583.05

QTY: 46- ELECTRICAL CORD [6FT] ~Old Part # 51865~ (26D0619) +$50.26

QTY: 47- FAN TEMPERATURE SWITCH [FK24] ~Old part #51704~ (SRV51704) +$40.92

QTY: 48- SPEED CONTROL [FK24] ~Old part #51738 (SRV51738) +$75.32

QTY: 49- SPEED CONTROL KNOB [FK24] (51882) +$26.61

QTY: 50- REMOTE SWITCH WIRE ASSEMBLY (20010345) +$11.18

QTY: 51- GASKET PLATE AIR INLET (10007706) +$11.18

QTY: 52- GASKET PLATE COVER FLUE PRODUCTS (10002233) +$11.18

QTY: 53- GASKET PLATE COVER FLUE PIPE (10002237) +$16.46

QTY: PLATE COVER FLUE PRODUCTS (10002298) +$18.73

QTY: COVER PLATE WITH 7IN COLLAR ASSEMBLY (10006846) +$83.86

QTY: FLUE PIPE ASSEMBLY (10008500) +$Call to order

QTY: 54- GASKET BURNER BASE (10007087) +$ *0.00*

QTY: 55- RELIEF PLATE ASSEMBLY [BURNER BASE] (10004192K) +$147.36

QTY: 56- RELIEF PLATE ASSEMBLY [FIREBOX TOP] (10002429K) *No longer available* +$ *0.00*

QTY: 57A- CONSOLE ASSEMBLY RN/RP (10009153) +$Call to order

QTY: 57B- CONSOLE ASSEMBLY RFN (10009377) +$Call to order

QTY: 58- VALVE ON/OFF [No longer available] (10009138) +$ *0.00*

QTY: 59-TRANSMITTER HONEYWELL [REMOTE] [Can upgrade to 20301076 NATURAL GAS or 20301077 LP] (20002047) *No longer available* +$ *0.00*

QTY: 59A- TRANSMITTER NATURAL GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] (20301076) +$1064.18

QTY: 59B- TRANSMITTER - PROPANE GAS [HONEYWELL COMFORT CONTROL GAS VALVE TO SIT RETROFIT GAS VALVE] [INCLUDES: VALVE, VALVE STEPPER, PILOT ASSEMBLY, REMOTE, CONTROL CENTER & REGULATOR] (20301077) +$1064.18

QTY: 60- CORD SET RF VALVE (20002541) +$35.44

QTY: 61- ANTENNAE HW395783-1 RFN/RFP VALVE (20003561) +$68.25

QTY: 62- SHIELD HEAT PILOT ~Old part #10000248~ (10000248K) +$13.66

QTY: 63A- IGNITION CONTROL FROM SYNETECH EN/EP (10007940) *No longer available* +$ *0.00*

QTY: 63B- IGNITION CONTROL FROM SYNETECH WITH HARNESSES (10007940) *No longer available* +$ *0.00*

QTY: 64- WIRE HARNESS [EN] SYNETECH [LOW VOLTAGE] (10008139) +$ *0.00*

QTY: 65- WIRE HARNESS [EN] SYNETECH [HIGH VOLTAGE] (10008140) +$ *0.00*

QTY: 66- ELECTRICAL CORD [6FT] IGNITON CTRL EN/EP (10008298) +$35.73

QTY: 67- CLEVIS PIN (10008615) +$13.10

QTY: 68- CLEVIS PIN HITCH (10008616) +$13.10

QTY: 69- WIRE WITH TERMINALS ASSEMBLY (10009179) +$Call to order

QTY: 70- KNOB VALVE ON/OFF (76525) +$14.92

QTY: 71- SHIELD FRONT PILOT (10009154) +$Call to order

QTY: 72- CONVERSION KIT NATURAL GAS TO PROPANE RN/EN (10009419) +$287.58

QTY: 73- CONVERSION KIT NATURAL GAS TO PROPANE RFN (10008276) +$547.83

QTY: 74- CONVERSION KIT PROPANE TO NATURAL GAS RP/EP (10009421) +$287.58

QTY: 75- CONVERSION KIT PROPANE TO NATURAL GAS RFP [No longer available for SUB please call 518-623-4349] (10008277) +$ *0.00*

QTY: 76- FIREBOX BAFFLE ASSEMBLY (10007688) +$Call to order

QTY: 77- DEFLECTOR CABINET TOP (10007091) +$Call to order

QTY: 78- RER VENT FIRESTOP PLATE (52523) +$Call to order

QTY: 79- ZERO CLEARANCE SLEEVE (54623) +$28.72

QTY: 80- AIR INLET DEFLECTOR FRONT (10007727) +$Call to order

QTY: 81-INVIN SPACER (3030157) +$Call to order

QTY: 82- DEFLECTOR WINDOW FRAME (10008124) +$Call to order

QTY: 83- COVER IGNITION MODULE (10008350) +$42.26

QTY: 84- REAR LOG BRACKET AIR DEFLECTOR ASSEMBLY [PART OF RP296- ADDED DEC- 2006] (10009747) +$Call to order

QTY:
