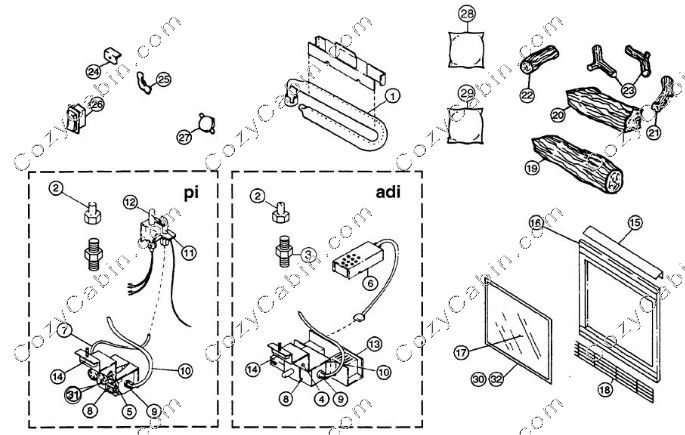

Includes Models:G36DVpi, G36DVpiLP, G36DVadi, G36DVadiLP
Item Description (Part Number)
QTY: 1 Burner with Tube Assembly (7540431) +$Call to Order
QTY: 2 Burner Orifice [41] Natural Gas (7535130) *No Longer Available* +$*0.00*
QTY: 2 Burner Orifice [53] Propane (7535131) *No Longer Available* +$*0.00*
QTY: 3 3/8 Inches Male Connector (7523137) +$Call to Order
QTY: 4 Indicator Light Assembly ADI-1 (3994115) +$Call to Order
QTY: 6 Igniter & Connector Assembly ADI-1 (NS30) *No Longer Available* +$*0.00*
QTY: 7 1/4 Inches Pilot Gas Tube (7549135) +$Call to Order
QTY: 8A Valve G36DVPI Natural Gas ~Old Part # 7529109~ (SRV7529109) +$482.04
QTY: 8B Valve G36DVADI Natural Gas ~Old Part # 7529116~ (20004991) *No Longer Available* +$*0.00*
QTY: 8C Valve G36DVPI Propane (7529110) +$539.60
QTY: 8D Valve G36DVADI Propane ~Old Part # 7529117~ (20004992) *No Longer Available* +$*0.00*
QTY: 9 3/8 Inches Fitting (7523133) +$19.01
QTY: 10 3/8 Inches Burner Gas Tube (7534247) +$Call to Order
QTY: 11A NG Pilot Frame with Electrode G36DVPI (7531117) +$110.91
QTY: 11B LP Pilot Frame with Electrode G36DVPI ~Old Part # 20000720~ (7531118) +$180.42
QTY: 11C NG Pilot Assembly [recommend using Hi Temp Silicone] (4021-330) +$174.30
QTY: 13A ADI System Assembly Propane [RP230] (20004992)*No Longer Available* +$*0.00*
QTY: 13B ADI System Assembly Natural Gas [RP229] (20004991) *No Longer Available* +$*0.00*
QTY: 14 Microswitch [Door] (7540214) *No Longer Available* +$*0.00*
QTY: 15 Hood (3957551) +$Call to Order
QTY: 16 Trim Strips (7540209) *No Longer Available* +$*0.00*
QTY: 17A Glass Assembly with Frame Plain (5370154) *No Longer Available* +$*0.00*
QTY: 17B Glass Assembly with Frame Bevelled (NS20) *No Longer Available* +$*0.00*
QTY: 18 Louver Welded Assembly [Painted] (570131) +$Call to Order
QTY: 19 Bottom Front Log [25 1/2 Inches] (7211102) +$Call to Order
QTY: 20 Bottom Rear Log [21IN] (7062109) +$Call to Order
QTY: 21 Top Cross Log Right (7060124) +$Call to Order
QTY: 22 Top Cross Log Left (7060150) +$Call to Order
QTY: 23 Top Middle Log (7060122) +$Call to Order
QTY: 24 Glass Retainer Assembly 12 (3957542) +$Call to Order
QTY: 25 Wing Nuts (7511154) +$Call to Order
QTY: 26 On/Off-RS Switch ~Old Part #41D0048~ (SRV41D0048) +$48.93
QTY: 27 Thermal Disk (7540218) +$46.26
QTY: 28 Black Volcanic Rock [2 per unit, each sold separately] ~Old Part # 20000376~ (SRV00F0540) +$63.46
QTY: 29 Ember Package 2 ~Old Part #51915K ~ (58D0443) +$32.92
QTY: 30 Glass Gasket [9 ft per package] (7547151-9) +$87.39
QTY: 31 Long Pilot Tube Fitting (7523214) +$Call to Order
QTY: 32 Frame Assembly [Glass Assembly] (5370155) +$Call to Order
QTY: 33 Owners Manual [hard copy] [G36DVII/992] (OMHC-VC) +$9.99
QTY: 34 Owners Manual [electronic copy] [G36DVII/992] (OMEL-VC) +$0.00
|
