Manufactured Between August 2002 - October 2007

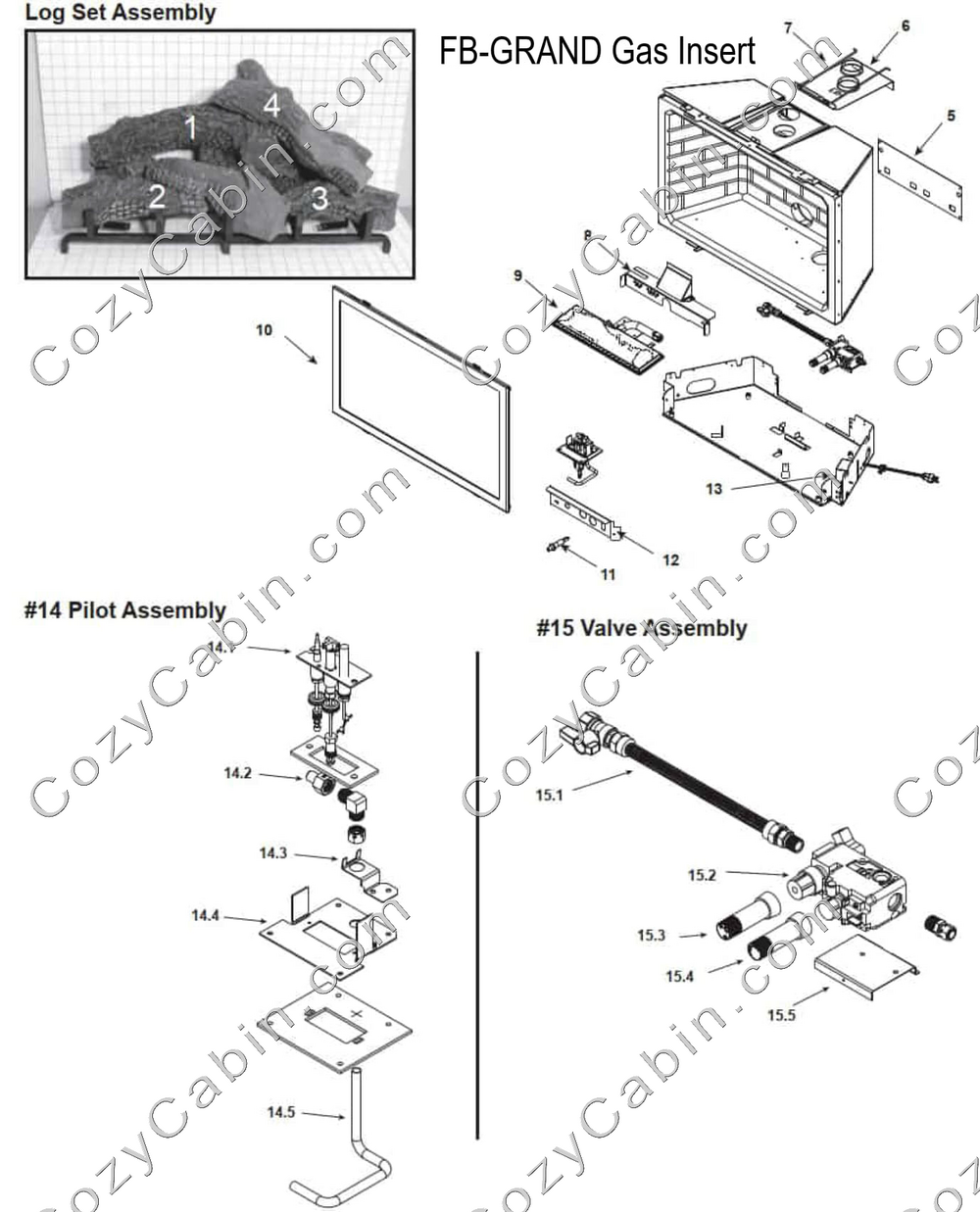

MAIN ASSEMBLY
Item Description (Part Number)
QTY: Log Set (LOGS-CFXGB) +$546.73
QTY: 1 Log 1 (SRV768-701) *No Longer Available* [can sub complete log set] +$*0.00*
QTY: 2 Log 2 (SRV768-704) *No Longer Available* [can sub complete log set] +$*0.00*
QTY: 3 Log 3 (SRV768-705) *No Longer Available* [can sub complete log set] +$*0.00*
QTY: 4 Log 4 (SRV582-705) *No Longer Available* [can sub complete log set] +$166.87
QTY: 5 Cover Plate (778-185) *No Longer Available* +$*0.00*
QTY: 6 Air Passage (783-108A) *No Longer Available* +$*0.00*
QTY: 7 Slide Plate Handle (2019-201) +$13.91
QTY: 8 Baffle Assembly (783-147A) *No Longer Available* +$*0.00*
QTY: 8A Baffle Assembly (2020-046) *No Longer Available* +$*0.00*
QTY: 9 Burner with Baffle and Grate [pre002474387] (SRV768-180A) *No Longer Available* +$792.73
QTY: 9A Burner [post 002474387] ~Old Part # 768-180A~ (SRV768-180A) +$792.73
QTY: 10 Glass Door Assembly (GLA-FBG) *No Longer Available* +$*0.00*
QTY: 11 Piezo Ignitor (291-513) +$27.81
QTY: 12 Valve Cover Plate (783-120) *No Longer Available* +$*0.00*
QTY: 13 Junction Box (040-250A) *No Longer Available* +$*0.00*
BURNER ASSEMBLY
Item Description (Part Number)
QTY: 14.1 Pilot Assembly NG [recommend using Hi-Temp Red Silicone] (4021-736) +$176.86
QTY: 14.1 Pilot Assembly LP [recommend using Hi-Temp Red Silicone] (4021-737) +$174.36
QTY: High Temperature Red Silicone (70AW) +$20.13
QTY: Pilot Tube (SRV485-301) +$151.93
QTY: Thermocouple (446-511) +$43.03
QTY: Thermopile (2103-512) +$91.76
QTY: 14.2 Burner Orifice NG (.125A) (768-801) *No Longer Available* +$*0.00*
QTY: 14.2 Burner Orifice LP (#49A) (065-801) *No Longer Available* +$*0.00*
QTY: 14.3 Bracket: Orifice (778-169) *No Longer Available* +$*0.00*
QTY: 14.4 Pilot Bracket (783-170) *No Longer Available* +$*0.00*
QTY: 14.5 Burner Tube (477-301A) +$98.60
QTY: 15.1 Flex Ball Valve Assembly (SRV302-320) +$86.30
QTY: 15.2 Valve NG (060-522) +$423.32
QTY: 15.2 Valve LP (060-523) +$423.32
QTY: 15.3 Pilot Control Knob (571-530) *No Longer Available* +$*0.00*
QTY: 15.4 Flame Control Knob (571-531) *No Longer Available* +$*0.00*
QTY: 15.5 Bracket: Valve (773-145) *No Longer Available* +$*0.00*
ACCESSORIES
Item Description (Part Number)
QTY: 20 Decorative Front (DF-FBG) *No Longer Available* +$*0.00*
QTY: 22 Fiber Patch Kit (PATCHKIT-FB) +$Call to Order
QTY: 23 Gasket Kit [Includes: Pilot Gasket, Air Passage Gasket, and Pilot Bracket Gasket] (778-430A) *No Longer Available* +$*0.00*
QTY: 24 Glass Latch Support Assembly (386-122A/2) +$93.13
QTY: 25 Log Grate (768-360A) *No Longer Available* +$*0.00*
QTY: 26 Mineral Wool (050-721) +$11.03
QTY: 27 Remote [On/Off, Temperature Readout, Thermostat Mode, Timer Mode] (SMART-STAT-HHT) +$296.23
QTY: 28 Vermiculite Embers (MYSTIC-EMBERS) +$30.68
QTY: 29 Wire Assembly (2020-059) *No Longer Available* +$*0.00*
QTY: 30 Conversion Kit and Burner NG (SRV768-180A) *No Longer Available* +$792.73
QTY: 31 Conversion Kit NG (NGK-FBG2) *No Longer Available* +$*0.00*
QTY: 32 Conversion Kit and Burner LP (SRV768-180A) *No Longer Available* +$792.73
QTY: 33 Conversion Kit LP (LPK-FBG2) *No Longer Available* +$*0.00*
QTY: 34 Regulator NG (SRV060-518) +$90.40
QTY: 35 Regulator LP (060-519) +$91.76
QTY: 36 Pilot Orifice NG (SRV446-505) +$15.34
QTY: 37 Pilot Orifice LP (SRV446-517) +$16.78
QTY: 38 Owners Manual [hard copy] (OMHC-VC) +$9.99
QTY: 39 Owners Manual [electronic copy] (OMEL-VC) +$0.00
|
