Unit: GFCN3M0

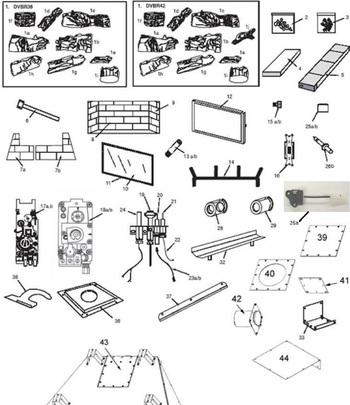

Item Description (Part Number)
QTY: 1 Log Set Complete (20008743) +$Call to Order
QTY: 1A Left Log (20008508) +$Call to Order
QTY: 1B Right Log (20008510) +$Call to Order
QTY: 1C Right Rear Log (20008509) +$Call to Order
QTY: 1D Left Cross Log (20008511) +$Call to Order
QTY: 1E Right Cover Log (20008515) +$Call to Order
QTY: 1F Left Rear Log (20008516) +$Call to Order
QTY: 1G Center Log (20008514) +$Call to Order
QTY: 1H Left Front Log (20008823) +$Call to Order
QTY: 1I Left Cover Log (20008512) +$Call to Order
QTY: 1J Log Top Right (B29) +$Call to Order
QTY: 2 Black Lava Rock ~Old Part #s 20000198, 00F0540~ (SRV00F0540) +$59.19
QTY: 3 Mineral Wool ~Old Part # 5110184~ (DV-RW) +$38.88
QTY: 4 Ceramic Tile Single ~Old Part #57803~ (SRV57803) recommend replacing a new Gasket. the Gasket will Need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$47.13
QTY: 5 Burner Housing with Tile (20008836) +$Call to Order
QTY: 6 Manifold Tubing with Fittings (20000538) +$Call to Order
QTY: 7A Ceramic Hearth Panel [Left] (20008813K) +$Call to Order
QTY: 7B Ceramic Hearth Panel [Right] (20008814K) *No Longer Available* +$*0.00*
QTY: 8 Ceramic Panel [Rear] (20000906) +$Call to Order
QTY: 9 Ceramic Panel [side] (20000904) +$Call to Order
QTY: 10-Glass Gasket [12ft per package] ~Old Part #10000992, 10000992K ~ (10000992K/12) +$140.72
QTY: 11 Glass 20 3/4 [gasket sold separately] (20007413) +$156.09
QTY: 11 Glass 18 3/4 [gasket sold separately] (20000566) +$Call to Order
QTY: 12 Window Frame Only Serial Start GFCN (20008934) +$Call to Order
QTY: 11 12 & 38 Window Frame with Glass Assembly Serial Start GFCN (20007412) +$Call to Order
QTY: 13A Propane Gas Valve Conversion Pin-Honeywell [Red Screw] (20000550) +$238.74
QTY: 13B-Honeywell to SIT Gas Valve Conversion Kit Propane Gas [Kit includes: Valve, Valve Bracket, Piezo, Piezo Bracket & Hardware] ~Old Part #10001759~ (20010680) +$371.84
QTY: 14 Grate (20000539) +$26.97
QTY: 15A Orifice Propane [Front Burner] (20000537) +$15.68
QTY: 15B Orifice Natural Gas [Front Burner] (20000978) +$40.88
QTY: 16 Switch On/Off (51842) +$48.29
QTY: 17A Valve Honeywell ~Discontinued Part#20000541~ (10001782) *No Longer Available* [Dependent upon Model # there may be a SIT Retrofit Kit Available] +$*0.00*
QTY: 17B-Honeywell to SIT Gas Valve Conversion Kit Propane Gas [Kit includes: Valve, Valve Bracket, Piezo, Piezo Bracket & Hardware] ~Old Part #10001759~ (20010680) +$371.84
QTY: 17C-Honeywell to SIT Gas Valve Conversion Kit Natural Gas [Kit includes: Valve, Valve Bracket, Piezo, Piezo Bracket & Hardware] (20010811) +$325.44
QTY: 20 Electrode Igniter [SIT] (52465) +$24.69
QTY: 21 Sensing Electrode [Sensing Electrode Nut Only] (57886)*No Longer Available* [can Sub pilot assembly 37D0018K] +$*0.00*
QTY: 22 Thermocouple PSE-~Old Part #30000313~ (10001825) +$46.60
QTY: 23A Cable Igniter [SIT] (7522432) +$15.59
QTY: 23B Cable Igniter [EN/EP] (10000696) *No Longer Available* +$*0.00*
QTY: 25A Orifice Pilot Hood-NG-PSE Honeywell [FITS between the Pilot Assembly and the Pilot Tube] (20000908) +$15.06
QTY: 25B Orifice Pilot Hood-LP-PSE Honeywell [FITS between the Pilot Assembly and the Pilot Tube] (20000907) +$29.06
QTY: 26B-226B Piezo Igniter-SIT ~Old Part #057958~ (057958A) +$47.13
QTY: 27 Remote Switch Kit Switch Wire & Bracket (53875) +$67.64
QTY: 28 Air Shutter Propane (20000680) +$24.69
QTY: 29 Air Shutter NG (20000129) +$69.83
QTY: 30 Conversion Kit [NG to LP] (20009087) +$Call to Order
QTY: 31 Conversion Kit [LP to NG] (20000975) *No Longer Available* +$*0.00*
QTY: 32 Valve Cover for Serial #GFCN3M0 (20007411) +$Call to Order
QTY: 32 Valve Cover for Serial #G11E7 (20000559K) +$Call to Order
QTY: 32 Valve Cover for Serial #G12E7 (20001816) +$18.67
QTY: 32 Valve Cover for Serial #G13E7 & G14E7 (20003397) +$Call to Order
QTY: 33 Zero Clearance Sleeve (54623) +$31.35
QTY: 36 Rear Vent Firestop Plate ~Old Part # 52523~ (52523K) +$51.23
QTY: 37 Hood (20000901K) +$Call to Order
QTY: 38 Frame Latch (30000114) *No Longer Available* +$*0.00*
QTY: 39 Outer Collar Gasket Flue Cover (20000650) +$Call to Order
QTY: 40 Outer Collar Gasket Flue Pipe (20000649) +$Call to Order
QTY: 41 Flue Cover (20000448K) +$Call to Order
QTY: 42 Flue Pipe Adapter (20000560) +$Call to Order
QTY: 43 Outer Cover Assembly (20000712) *No Longer Available* +$*0.00*
QTY: 44 Heat Shield Cover Plate (20007921) +$Call to Order
QTY: 45 Conversion Kit [NG to LP] SIT (20009082) +$287.58
QTY: 46 Conversion Kit [LP to NG] SIT (20009083) +$287.58
QTY: 48 SIT Regulator Head Propane (37D0025) +$70.64
QTY: 49 Nailing Flange Bag of 4 with Screws (2253160) +$45.33
QTY: 50 Valve Access Plate [Interior] (20008322) +$Call to Order
QTY: 51 Wall Switch Kit ~Old Part # 3078150~ (MVWS) +$40.00
QTY: 52 Rear Vent Firestop Plate ~Old Part # 52523~ (52523K) +$51.23
QTY: 53 Pilot Shield (20002234) +$Call to Order
|
