33 XDV (GFDE3I1, GFDN3I1) #33XDV

33 XDV (GFDE3I1, GFDN3I1)


Item# 33XDV     Price: $0.00

Item Description (Part Number)

QTY: LOG SET COMPLETE (10009399) +$Call to order

QTY: 1A-LOG REAR (10009392) +$Call to order

QTY: 1B-LOG CENTER RIGHT (10009394) +$Call to order

QTY: 1C-LOG RIGHT TOP (10009395) +$Call to order

QTY: 1D-LOG FRONT (10009393) +$Call to order

QTY: 1E-LOG CROSSOVER CENTER (10009396) +$Call to order

QTY: 1F-LOG LEFT TOP (10009397) +$Call to order

QTY: 2-VOLCANIC LAVA ROCK ~Old Part #s 10001454, 00F0540~ (SRV00F0540) +$34.40

QTY: 3- EMBER PACKAGE (58D0443) +$12.26

QTY: 4-BRACKET REAR LOG ASSEMBLY BLACK (10009403) +$Call to order

QTY: 5-GRATE ASSEMBLY BLACK (10008831) +$Call to order

QTY: 6C-BURNER HOUSING ASSEMBLY NATURAL GAS (10009163) +$Call to order

QTY: BURNER HOUSING ASSEMBLY PROPANE (10009744) +$Call to order

QTY: 7-BRACKET SUPPORT CENTER LOG (10009024) *No longer available* +$ *0.00*

QTY: 8-ANGLE FRONT LOG SUPPORT ASSEMBLY (10009386) +$Call to order

QTY: 9-BI-METAL AIR SHUTTER ASSEMBLY (10009140) +$Call to order

QTY: 10-CERAMIC TILE SINGLE ~Old part #57803~ (SRV57803) Would recommend purchasing a new gasket. The gasket will need to be custom cut. Gasket Part #CFPAP 1/2-48-65-1. +$30.12

QTY: 11-BURNER TUBE ASSEMBLY (10009168) +$Call to order

QTY: FRAME WINDOW WITH GLASS ASSEMBLY (10009483) +$312.90

QTY: 12A-GLASS WITH GASKET ASSEMBLY (10008086) +$261.92

QTY: 12B-GLASS GASKET [12FT PKG] ~Old part #10000992, 10000992K ~ (10000992K/12) +$124.68

QTY: 12C-WINDOW METAL FRAME ONLY (10007399) +$Call to order

QTY: 13-CLAMP WINDOW FRAME (54174) *No longer available* +$ *0.00*

QTY: 14-LOUVER ASSEMBLY TOP (10007400) +$Call to order

QTY: 15-LOUVER ASSEMBLY BOTTOM (10007397) +$Call to order

QTY: 15A-BOTTOM LOUVER BRACKET (10008614) +$11.18

QTY: 15B-CLIP PIN HITCH (10008616) +$13.10

QTY: 16-BRACKET BURNER TUBE (10009146) +$27.74

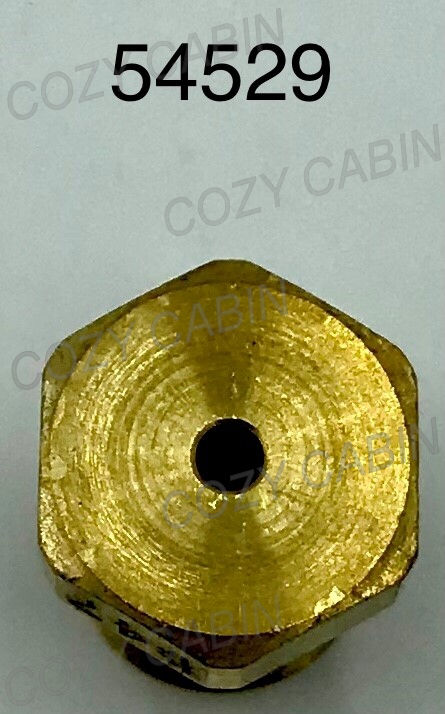

QTY: 17A- ORIFICE REAR BURNER #47 NATURAL GAS (54529) +$11.56

QTY: 17-ORIFICE REAR BURNER #57 PROPANE (20002409) +$41.99

QTY: 18A-ORIFICE FRONT BURNER #56 NATURAL GAS (50999) +$41.99

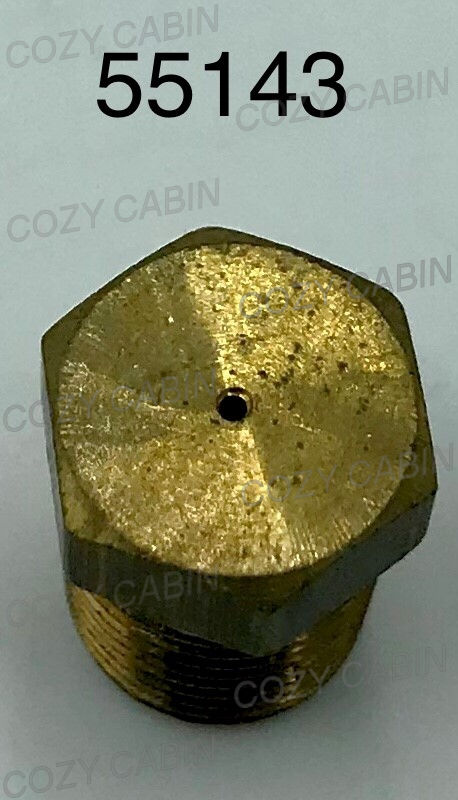

QTY: 18B-ORIFICE FRONT BURNER #66 PROPANE (55143) +$40.88

QTY: 19-SWITCH ROCKER ~Old Part # 53606~ (30000874) +$10.86

QTY: 20-REMOTE SWICTH KIT (20010793) +$Call to order

QTY: 21A- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT (37D0022) +$19.61

QTY: 21B-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 (37D0023) +$28.52

QTY: 22A- 3-way Top Convertible Pilot Assembly - NG-SIT [Includes: thermopile, thermocouple, pilot, pilot tube & electrode with wire] (Call for part #) +$Call to order

QTY: 22B-PILOT ASSEMBLY 3-way PROPANE GAS [SIT] ~Old part #10002265~ (SRV10002265) +$138.02

QTY: 23A-PILOT ASSEMBLY EN (10002387) +$136.69

QTY: 23B- PILOT ASSEMBLY EP (10002388) *No longer available* [CAN SUB (1) 10002387 TOGETHER WITH (1) 37D0023] +$ *0.00*

QTY: 24-PILOT TUBING WITH FITTINGS SIT (26D0665) +$34.40

QTY: 25-PILOT HOOD ~Old part #10002385~ (37D0018K) +$132.69

QTY: 26-THERMOCOUPLE RN/RP ~Old Part # 24D0808, 7531137~ ~Old part #24D0808~ (SRV24D0808) +$43.59

QTY: 27-THERMOPILE RN/RP ~Old part #26D0566~ (SRV26D0566) +$115.34

QTY: 28-ELECTRODE IGNITER WITH CABLE RN/RP (10001297) +$28.72

QTY: 29-ELECTRODE IGNITER EN/EP (52465) +$16.46

QTY: 30-CABLE IGNITER EN/EP (10000696) *No longer available* +$ *0.00*

QTY: 31-SENSING ELECTRODE EN/EP (57885) +$32.92

QTY: 32-IGNITER PIEZO WITH NUT SIT RN/RP (50932) +$31.33

QTY: 34A-PILOT ASSEMBLY RF 3WAY NATURAL GAS (20002266) +$285.33

QTY: 34B-PILOT ASSEMBLY 3WAY DV/RFP CS3003A2017 [ NATURAL GAS] [MUST ORDER PROPANE ORIFICE TO CONVERT TO PROPANE GAS] (20002268) *No longer available* [This Pilot Assembly only comes NG, use part #20002266, must add 20000907 PROPANE Orifice to convert to LP] +$ *0.00*

QTY: 34C- ORIFICE PILOT HOOD-LP-PSE- HONEYWELL [FITS BETWEEN THE PILOT ASSEMBLY AND THE PILOT TUBE] (20000907) +$15.06

QTY: 38-VALVE SIT 820.662 NATURAL GAS (20010563) +$200.92

QTY: 38-VALVE SIT 820.707 PROPANE (20010645) +$216.27

QTY: 39-VALVE SIT 822.634 EN ~Old Part # 20011013~ (37D0016) +$269.98

QTY: 41-FLEXIBLE GAS LINE WITH SHUT-OFF VALVE (Call for part #) +$Call to order

QTY: 42-MANIFOLD TUBING WITH FITTINGS (57318) +$75.32

QTY: 43-FAN KIT ASSEMBLY ~Old part #GAFA2E0~ (FK24) [HEAT ACTIVATED ON/OFF VARIABLE SPEED WITH RHEOSTAT] +$583.05

QTY: 44-FAN & CORD WITHOUT BRACKET ~Old part #GAFA2S0~ (FK12) +$405.80

QTY: 45-FAN WITH BRACKET FK24 ~Old part #54103~ (FK24) +$583.05

QTY: 46-ELECTRICAL CORD FAN ~Old Part # 51865~ (26D0619) +$50.26

QTY: 47-FAN TEMPERATURE SWITCH -FK24 ~Old part #51704~ (SRV51704) +$40.92

QTY: 48-SPEED CONTROL -FK24 ~Old part #51738 (SRV51738) +$75.32

QTY: 49-KNOB SPEED CONTROL -FK24 (51882) +$26.61

QTY: 50-REMOTE SWITCH WIRE ASSEMBLY (20010345) +$11.18

QTY: 51-GASKET PLATE AIR INLET (10008179) +$Call to order

QTY: 52-GASKET PLATE COVER FLUE PRODUCTS (10002233) +$11.18

QTY: 52A-FLUE PIPE ASSEMBLY (10004933) +$Call to order

QTY: 52B-FLUE PLATE COVER (10002298) +$18.73

QTY: 52C-COVER PLATE AIR INLET ASSEMBLY (10008181) +$Call to order

QTY: 53-GASKET PLATE COVER FLUE PIPE (10002237) +$16.46

QTY: 54-GASKET BURNER BASE (10007387) +$11.18

QTY: 55-RELIEF PLATE ASSEMBLY -BURNER BASE ~Old part #10004192~ (10004192K) +$147.36

QTY: 56-RELIEF PLATE ASSEMBLY FIREBOX TOP (10007396) +$Call to order

QTY: 57A-CONSOLE ASSEMBLY RN/RP (10009153) +$Call to order

QTY: 58-VALVE ON/OFF [No longer available] (10009138) +$ *0.00*

QTY: 59-TRANSMITTER HONEYWELL [REMOTE] [Cannot sub a Honeywell to SIT Update Kit. No retrofit kit available.] (20002047) *No longer available* +$ *0.00*

QTY: 62-SHIELD HEAT PILOT ~Old Part #10000248~ (10000248K) +$13.66

QTY: 63A-IGNITION CONTROL FROM SYNETECH -EN/EP (10007939) +$Call to order

QTY: 63B-IGNITION CONTROL FROM SYNETECH WITH HARNESSES (10007940) *No longer available* +$ *0.00*

QTY: 64-WIRE HARNESS EN- SYNETECH -LOW VOLTAGE (10008139) +$ *0.00*

QTY: 65-WIRE HARNESS EN- SYNETECH -HIGH VOLTAGE (10008140) +$ *0.00*

QTY: 66-ELECTRICAL CORD -IGNITION CONTROL EN/EP (10008298) +$35.73

QTY: 67-CLEVIS PIN (10008615) +$13.10

QTY: 68-CLEVIS PIN HITCH (10008616) +$13.10

QTY: 69-WIRE WITH TERMINALS ASSEMBLY (10009179) +$Call to order

QTY: 70-KNOB VALVE ON/OFF (76525) +$14.92

QTY: 71-SHIELD PILOT FRONT (10009404) +$Call to order

QTY: 72-CONVERSION KIT NATURAL GAS TO PROPANE (10009427) +$Call to order

QTY: 73-CONVERSION KIT PROPANE TO NATURAL GAS (10009429) +$287.58

QTY: 74-REAR VENT FIRESTOP PLATE (52523) +$Call to order

QTY: 75-ZERO CLEARANCE SLEEVE (54623) +$28.72

QTY: 76-REAR LOG AIR DEFLECTOR (10009750) +$Call to order

QTY: 77-COVER IGNITION MODULE (10008350) +$42.26
