Dutchwest Natural Vent Gas Heater (2467, 2468)  #2467-2468

Dutchwest Natural Vent Gas Heater (2467, 2468)


Item#: 2467-2468

Price: $0.00


Order Now

Item Description (Part Number)

QTY: 1-COMPLETE LOG SET ~Old Part #20003458~ (20003458K) +$314.74

QTY: 1A-REAR LOG ~Old Part #20003459 (20003459K) +$112.68

QTY: 1B-RIGHT LOG ~Old Part #20003460 (20003460K) +$87.33

QTY: 1C-LEFT LOG ~Old Part #20003461 (20003461K) +$87.33

QTY: 2-SMALL LAVA ROCK PACKAGE (57897K) +$34.32

QTY: 3-TOP NATURAL VENT (30002005) +$122.18

QTY: 4-GRILLE (30002044) *No Longer Available* +$ *0.00*

QTY: 5-FRONT ~Old Part #30001928~ (30001928A) +$281.49

QTY: 6-DOOR ~Old Part #30001929~ (30001929A) +$106.01

QTY: 7-LEG (30001930) +$59.46

QTY: 8-END RIGHT ~Old Part #30001927~ (30001927A) +$179.18

QTY: 9-END LEFT ~Old Part #30001926~ (30001926A) +$202.20

QTY: 10-GLASS GASKET (1203702K) +$17.86

QTY: 11- GLASS (1601691) +$420.89

QTY: 12-GLASS FRAME (30000127) +$207.31

QTY: 13-MANIFOLD TUBE DOUBLE BEAD (20003739) +$166.39

QTY: 14A-HONEYWELL TO SIT GAS VALVE CONVERSION KIT - NATURAL GAS - STANDARD VALVE [KIT INCLUDES: VALVE, VALVE BRACKET, THERMOCOUPLE, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part #10001782~ (20010812) +$350.55

QTY: 14B- HONEYWELL TO SIT VALVE CONVERSION KIT - PROPANE - STANDARD VALVE [KIT INCLUDES: VALVE, VALVE BRACKET, THERMOCOUPLE, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part # 10001759~ (20010684) +$391.48

QTY: 15A- 3-WAY TOP CONVERTIBLE PILOT ASSEMBLY - NG-SIT [Includes: thermopile, thermocouple, pilot, pilot tube & electrode with wire] [original had interrupter in block not thermocouple. ensure that unit has an interrupter] ~Old Part # 10002264~ (SRV1002264) +$138.02

QTY: 15B-PILOT ASSEMBLY 3-WAY PROPANE GAS [SIT] [original had interrupter in block not thermocouple. ensure that unit has an interrupter]~Old Part #10002265~ (SRV10002265) +$138.02

QTY: 16-THERMOCOUPLE 24IN WITHOUT INTERRUPTER SIT MILLIVOLT [serial #s pre 1746] ~Old Part #s 53373, 7531137, 24D0808~ (SRV24D0808) +$43.59

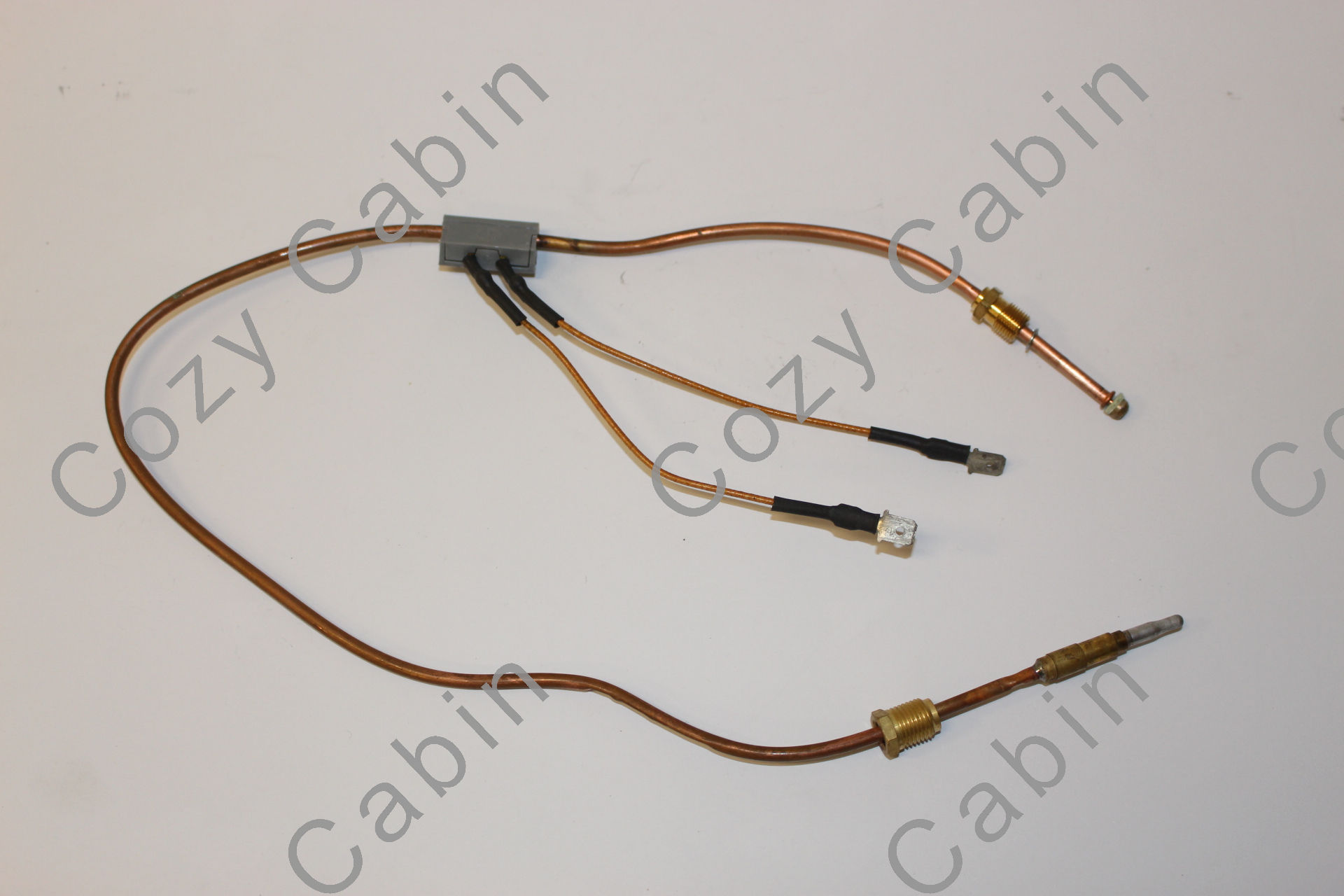

QTY: 16A-THERMOCOUPLE SIT WITH INTERRUPTOR SIT [SERIAL #S STARTING AT 1746] [MUST REUSE YOUR NUT] ~Old Part #54912~ (SRV54912) +$52.93

QTY: 17-ELECTRODE IGNITER WITH CABLE SIT (10001297) 24 +$28.72

QTY: 18-PILOT TOP CONVERTIBLE (10002266) *No Longer Available* [Can sub SRV10002264-NG or SRV10002265-LP] +$ *0.00*

QTY: 19-THERMOPILE 24IN ~Old Part #s 51892, 7533113, 26D0566~ (SRV26D0566) +$115.34

QTY: 20-PILOT TUBING WITH FITTINGS SIT ~Old Part # 10001296~ (26D0665) +$34.40

QTY: 21-NUT ELECTRODE SIT [Sensing Electrode Nut Only] (57886) +$13.28

QTY: 22A-ORIFICE HOOD #69 0.0292IN [FRONT LP] (30000513) +$41.98

QTY: 22B-ORIFICE HOOD #54 [FRONT NG] (20000130) +$41.98

QTY: 22C-ORIFICE HOOD #54 [REAR- LP] (20000130) +$41.98

QTY: 22D-ORIFICE HOOD #44 [REAR NG] ~Old Part # 30000334~ (SRV30000334) +$47.97

QTY: 23A- PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE NATURAL GAS #62 SIT ~Old Part # 10002268~ (37D0022) +$19.61

QTY: 23B-PILOT INJECTOR [ORIFICE] [SCREW-IN] TOP CONVERTIBLE PROPANE #35 ~Old Part # 10002269~ (37D0023) +$28.52

QTY: 24-BURNER HOUSING ASSEMBLY [call for a sub] (20005264) *No Longer Available* +$*0.00*

QTY: 25-NUT HEX JAM 3/8-16 TOP LK-Z (1203290) +$11.18

QTY: 26-PAWL ASSEMBLY ~Old Part # 5004025~ (30002362) +$10.86

QTY: 26A-ALLEN WRENCH FOR PAWL ASSEMBLY (1205116) +$12.26

QTY: 27-FRONT STEEL HANDLE/SHAFT N/VER (5004237) +$64.79

QTY: 28-HANDLE PACKAGE CERAMIC [WHITE] (0004342) +$101.43

QTY: 29-GRATE BURNER (20002167) +$12.26

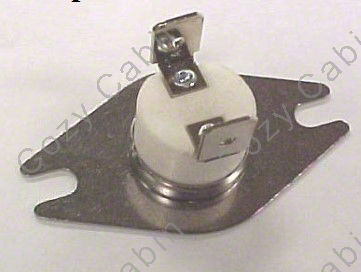

QTY: 30A-SENSOR SPILL SWITCH [1 1/4 inch mounting holes] ~Old Part #51866 (SRV51866) +$191.97

QTY: 30B-SPILL SWITCH [1 inch mounting holes] (20005039) +$50.26

QTY: 31-SWICH ROCKER (30000874) +$10.86

QTY: 32-WIRE WITH STRAIGHT TERM 2 END 50IN. (10002582) +$28.72

QTY: 33-SPILL SWITCH WIRE (30000108) +$95.33

QTY: 34-BRACKET RIGHT LOG (20005259) +$12.26

QTY: 35-BRACKET LEFT LOG (20005258) +$28.72

QTY: 37-GASKET BASE PAN INNER (20002566) +$10.86

QTY: 38-INTERRUPTER BLOCK [SERIAL #s PRE 1745] ~Old Part # 30000069~ (SRV54912) +$52.93

QTY: 39-DRAFT HOOD/FLUE COLLECTOR (20005227) +$Call to order

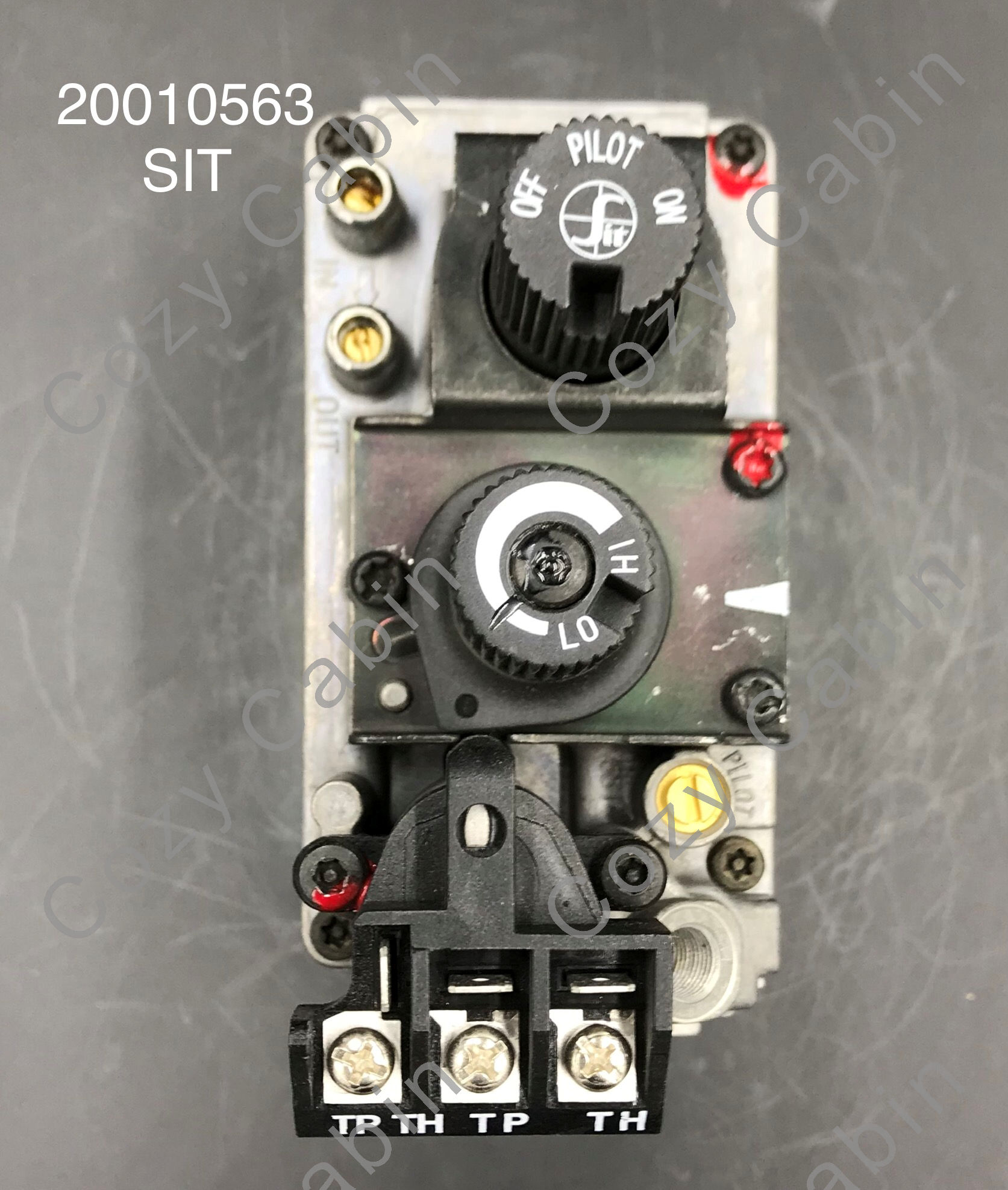

QTY: 40A-VALVE SIT 820.662 NATURAL GAS [SERIAL #STARTING WITH 1746] (20010563) +$200.92

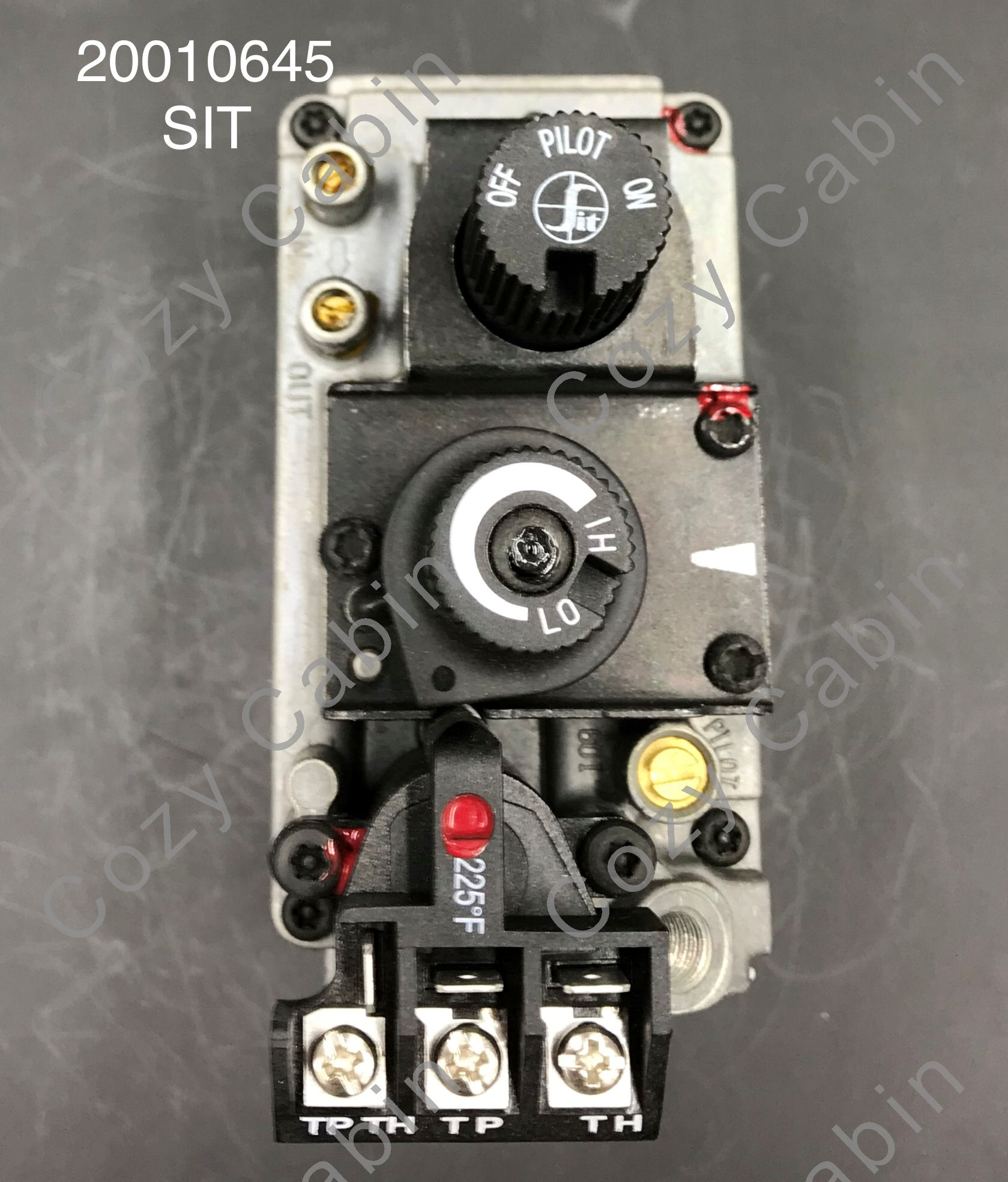

QTY: 40B-VALVE SIT 820.707 PROPANE [SERIAL #STARTING WITH 1746] (20010645) +$216.27

QTY: 41-IGNITER PIEZO WITH NUT SIT ~Old Part #057958~ (057958A) +$34.32

QTY: 42-BRACKET PIEZO IGNITER [NOT SHOWN] ~Old part #20010876~ (20010876K) +$77.99

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 43 CONVERSION KIT NATURAL GAS TO PROPANE GAS [FITS HONEYWELL VALVE ONLY] (0005022) +$417.90

QTY: 44-CONVERSION KIT PROPANE TO NATURAL GAS [FOR SIT VALVE ONLY] (0005021) +$167.67

QTY: 45-CONVERSION KIT PROPANE TO NATURAL GAS [FOR HONEYWELL VALVE ONLY] (0005021H) +$417.90

QTY: 46-HONEYWELL TO SIT GAS VALVE CONVERSION KIT - PROPANE GAS [KIT INCLUDES: VALVE, VALVE BRACKET, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part # 10001759~ (20010680) +$319.86

QTY: 47-VALVE HONEYWELL (20010811) +$278.93

QTY: 48-HEAT ACTIVATED FAN - VARIABLE SPEED (FK26) +$409.00

QTY: 49-HAND HELD THERMOSTAT [LCD screen, battery receiver and wall cover plate] ~Old Part # MRC3~(RCST) +$209.00

QTY: 50-WALL THERMOSAT / HAND HELD WIRELESS REMOTE - ON/OFF/THERMOSTAT/TIMER ~Old Part # IMT~ (SKY-5301) +$259.80

QTY:
