Dutchwest Large Catalytic Stove (2641) #2461

Dutchwest Large Catalytic Stove (2641)


Item# 2461     Price: $0.00

Item Description (Part Number)

QTY: 1- BOTTOM ~Old Part #7000978~ (7000978A) +$440.93

QTY: 2- OUTER BACK [AFTER 9/97 NO OUTSIDE AIR SLOT] ~Old Part #7001231~ (7001231A) +$465.05

QTY: 2A- OUTER BACK [BEFORE 9/97 SLOT FOR OUTSIDE AIR] [TO SN 47114] (7001123) +$290.44

QTY: 3- INNER BOTTOM (7001116) +$248.00

QTY: 4- INNER BACK [AFTER9/97 NO OUT SIDE AIR SLOT] (7001230) +$152.98

QTY: 4A- INNER BACK [BEFORE9/97 SLOT FOR OUTSIDE AIR] (7001174) *No Longer Available* +$ *0.00*

QTY: 5A- INNER TOP [ONLY] ~Old Part #7001119~ (7001119A) +$249.34

QTY: 5B- INNER TOP WITH WEB [INCLUDES: INNER TOP, WEB, WEB GASKET,WEB HARDWARE, BAFFLE, BAFFLE HARDWARE] (7001171) +$416.82

QTY: 5C- INNER TOP WITH WEB [INCLUDES: INNER TOP, WEB, WEB GASKET,WEB HARDWARE] (0000004) +$426.20

QTY: 6- INNER TOP WEB ~Old Part #7001110~ (7001110A) +$111.05

QTY: 6A- INNER TOP WEB INTERAM GASKET [2 per unit, each sold separatelyUIRED, EACH SOLD SEPARATELY] (1203540) +$11.38

QTY: 7- INNER TOP CHANNEL CAP (7000974) +$73.47

QTY: 8- AIR DISTRIBUTOR (7000952) +$67.88

QTY: 9- BAFFLE ~Old Part #7000953~ (7000953A) +$116.64

QTY: 9A- BAFFLE HARDWARE KIT (7000953H) +$33.55

QTY: 10- RIGHT SIDE [AFTER 7/97 NO OUTSIDE AIR] ~Old Part # 7001229~ (7001229A) +$209.15

QTY: 11- LEFT SIDE (7001120) +$199.64

QTY: 12- SIDE DOOR 55 ~Old Part #7001121~ (7001121A) +$137.61

QTY: 13- FRONT AND SIDE DOOR HANDLE NICKEL [CURRENT] [FRONT AND SIDE NUB WITH SHAFT] (5004245) +$73.47

QTY: 13A- FRONT AND SIDE DOOR HANDLE GOLD +D43 [FRONT AND SIDE NUB WITH SHAFT] (5004273) +$73.47

QTY: 13B- FALLAWAY HANDLE WITH GOLD NUB - (0005854) +$99.16

QTY: 13C- INSERTER LIFTER HANDLE GOLD NUB ONLY (1600651) +$34.49

QTY: 13D- WHITE CERAMIC HANDLE (1600620) *No longer available* Call for substitute +$*0.00*

QTY: 13E- GOLD HANDLE SCREW ONLY (1201293) +$11.38

QTY: 13F- FRONT DOOR HANDLE ASSEMBLY [INCLUDES: FALLAWAY HANDLE, FAUCETT STUB WITH SHAFT, PAWL ASSEMBLY & JAM NUT] (0004240) +$208.68

QTY: 14- PAWL ASSEMBLY FRONT DOOR 5004025 (30005157) +$54.05

QTY: 14- PAWL ASSEMBLY ASH DOOR (30002362) +$12.84

QTY: 14A- ALLEN WRENCH FOR PAWL ASSEMBLY (1205116) +$12.84

QTY: 15B- JAM NUT (1203290) +$11.18

QTY: 16- PRIMARY AIR MANIFOLD (7001122) +$136.21

QTY: 17- FRONT ~Old Part #7001124~ (7001124A) +$300.25

QTY: 18- GASKET [15FT PKG] ~Old Part #7000910~ (1-00-7000910) +$48.46

QTY: 19- ASH DOOR (7001126) +$150.02

QTY: 20- GRATE ~Old Part #30002092~ (30002092A) +$160.91

QTY: 21- RETAINER TAB FOR THE WEB BYPASS GATE & AIR CONTROL (1601488) +$11.18

QTY: 22- FAN PLATE ~Old Part #7000037~ (7000037A) +$125.03

QTY: 23- DAMPER [HARDWARE KIT SOLD SEPARATELY] ~Old Part #7000954~ (7000954A) +$80.31

QTY: 23A-DAMPER HARDWARE KIT (7000954H) +$48.93

QTY: 24- DAMPER ADJUSTER ~Old Part #7000950~ (7000950A) +$85.90

QTY: 24A- DAMPER ADJUSTER HARWARE KIT (7000950H) +$18.88

QTY: 29- DAMPER CRANK (7000951) +$63.69

QTY: 30- UNTHREADED ROD [USE WITH 1202561 & 1203068] (7001131) +$42.87

QTY: 30A- WASHER (1202561) +$13.28

QTY: 30B- BYPASS OPERATING ROD CLIP (1203058) +$11.38

QTY: 31- GRATE BACK ~Old Part #7001166~ (7001166A) +$137.61

QTY: 32- TOP ~Old Part #7000972~ (7000972A) +$332.41

QTY: 33- HEARTH ~Old Part #7001127~ (7001127A) +$201.11

QTY: 34- FLUE COLLAR ~Old Part #7000969~ (7000969A) +$133.41

QTY: LEG [NOW ONLY SOLD AS A SET OF 4] ~Old Part # 7000016 ~ (30006014) +$242.64

QTY: 35A- LEG SET OF 4 ~Old Part #[7000SL6] ~ (30006014) +$242.64

QTY: LEG SHORT [2IN] SET OF 4 (0000SL2) +$102.94

QTY: 36- DAMPER HANDLE STUB NICKEL [CURRENT] (5004267) +$87.29

QTY: 37- ASH DOOR HANDLE WITH SHAFT NICKEL (5004237) +$73.47

QTY: 37A- ASH DOOR HANDLE WITH SHAFT GOLD (5004271) +$87.29

QTY: 38- ASH PAN (7000G69) +$106.86

QTY: 40- GLASS (7001132) +$264.08

QTY: 40A- GLASS GASKET [15FT] ~Old Part #1203591~ (1-00-1203591) +$44.27

QTY: 41- MANIFOLD CAP (7001164) +$28.62

QTY: 42- HOLDER FOR DOOR HANDLE INSERT (1600600) +$25.69

QTY: 43- PRIMARY AIR CONTROL (30002739) +$45.67

QTY: 45- SPRING FOR PRIMARY CONTROL (1201846) +$11.18

QTY: 47- FRONT DOOR (7001125) +$180.45

QTY: 48- INNER BOTTOM SCREW 1/4 -20 X 3_BEIN (1201394) +$11.18

QTY: 50- ANDIRON ~Old Part #7001117~ (7001117A) +$62.29

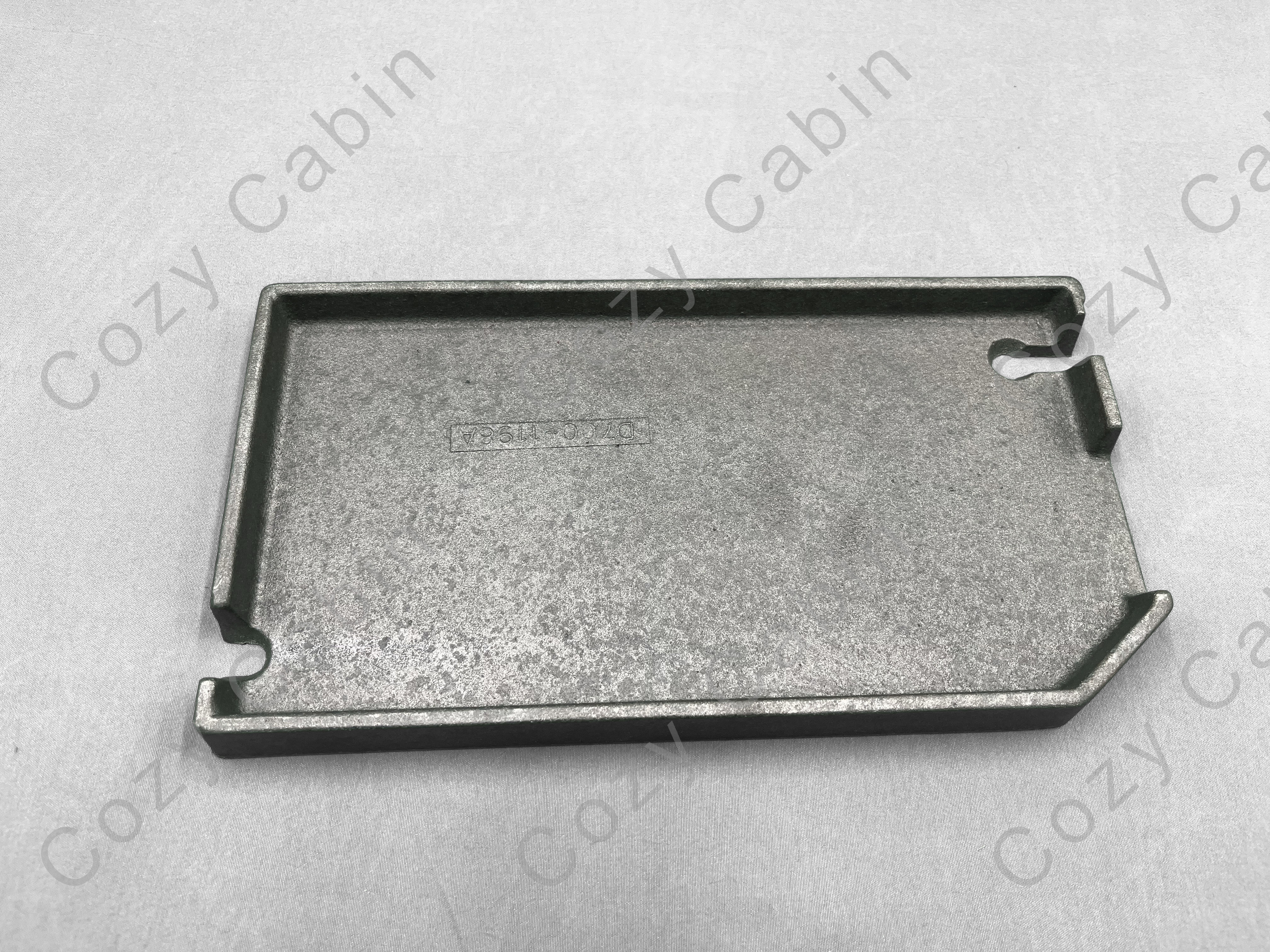

QTY: 53- SIDE WEAR PLATE ~Old Part # 7001198~ (7001198A) +$97.08

QTY: 54- INTERAM GASKET [FOR CATALYTIC COMBUSTOR] ~Old Part #1203533~ (1203533A) +$30.09

QTY: 55- CATALYTIC COMBUSTOR ~Old Part #000CB56~ (SRV50001038) +$670.04

QTY: 55A- UPGRADED METAL CATALYTIC COMBUSTOR ~Old Part #000C56M~ (000CB56) *No Longer Available* +$ *0.00*

QTY: 56- REFRACTORY (1602515) +$426.20

QTY: 58- PROBE THERMOMETER [2_BDIN STEM] ~Old Part #7000948~ (7000948A) +$106.86

QTY: 63- BLACK WOOD HANDLE WITH LIFTER NICKEL (30002787) +$37.43

QTY: 64- BOTTOM HEAT SHIELD (0001075) +$155.53

QTY: 65- FALLAWAY HANDLE COMPLETE [ITEMS 31 32 33] (0005854) +$99.16

QTY: 67- INSERTER LIFTER HANDLE GOLD NUB ONLY (1600651) +$34.49

QTY: 69- HANDLE SCREW (1201294) +$12.18

QTY: 70- DAMPER HANDLE SCREW (1201310) +$15.06

QTY: 71- STOVE GASKET KIT (000GK99) +$164.93

QTY: 73- GLASS CLIP [4 REQUIRED, EACH SOLD SEPARATELY] (1601396) +$12.26

QTY: 73A- GLASS CLIP SCREW [4 REQUIRED, EACH SOLD SEPARATELY (1200996) +$11.18

QTY: 74- DIAL DAMPER THEADED STUD (1204253) +$14.31

QTY: 76- HANDLE STUB (1600650) +$27.15

QTY: 77- BLACK WOOD HANDLE WITH LIFTER NICKEL (30002787) +$37.43

QTY: DUAL SPEED CONVECTION FAN (0009973) +$739.71

QTY: AIR CONTROL BALL NICKEL [CURRENT] (30002729) +$12.84

QTY: BYPASS OPERATING ROD CLIP (1203058) +$11.38

QTY: LEFT SIDE WITH DOOR ASSEMBLY (7001170) +$Call to Order

QTY: DIAL DAMPER ~Old Part #7001128~ (7001128A) +$66.48

QTY: 59- CHROME BAR [CURRENT] (30002732) +$67.88

QTY: 75- WASHER (1202561) +$13.28

QTY: 3/16 -16 HEX NUT (1203161) +$12.26

QTY: 1/4 -20 X 11/4IN HEX HEAD CAP SCREW (30002680) +$11.38

QTY: 1/4 -20 X 1IN HEX HEAD CAP SCREW (1201337) +$11.18

QTY: PHILLIPS FLAT HEAD SCREW (1200881) +$11.18

QTY: 1/4 -20 X _BDIN STAINLESS HEX HEAD CAP SCREW+D88 (1201340) +$11.18

QTY: 10-24 X _BDIN HEX HEAD CAP SCREW (1201322) +$12.65

QTY: 1/4 -20 X 2IN STAINLESS HEX HEAD CAP SCREW (1201399) +$14.31

ITEM NOT SHOWN

Item Description (Part Number)

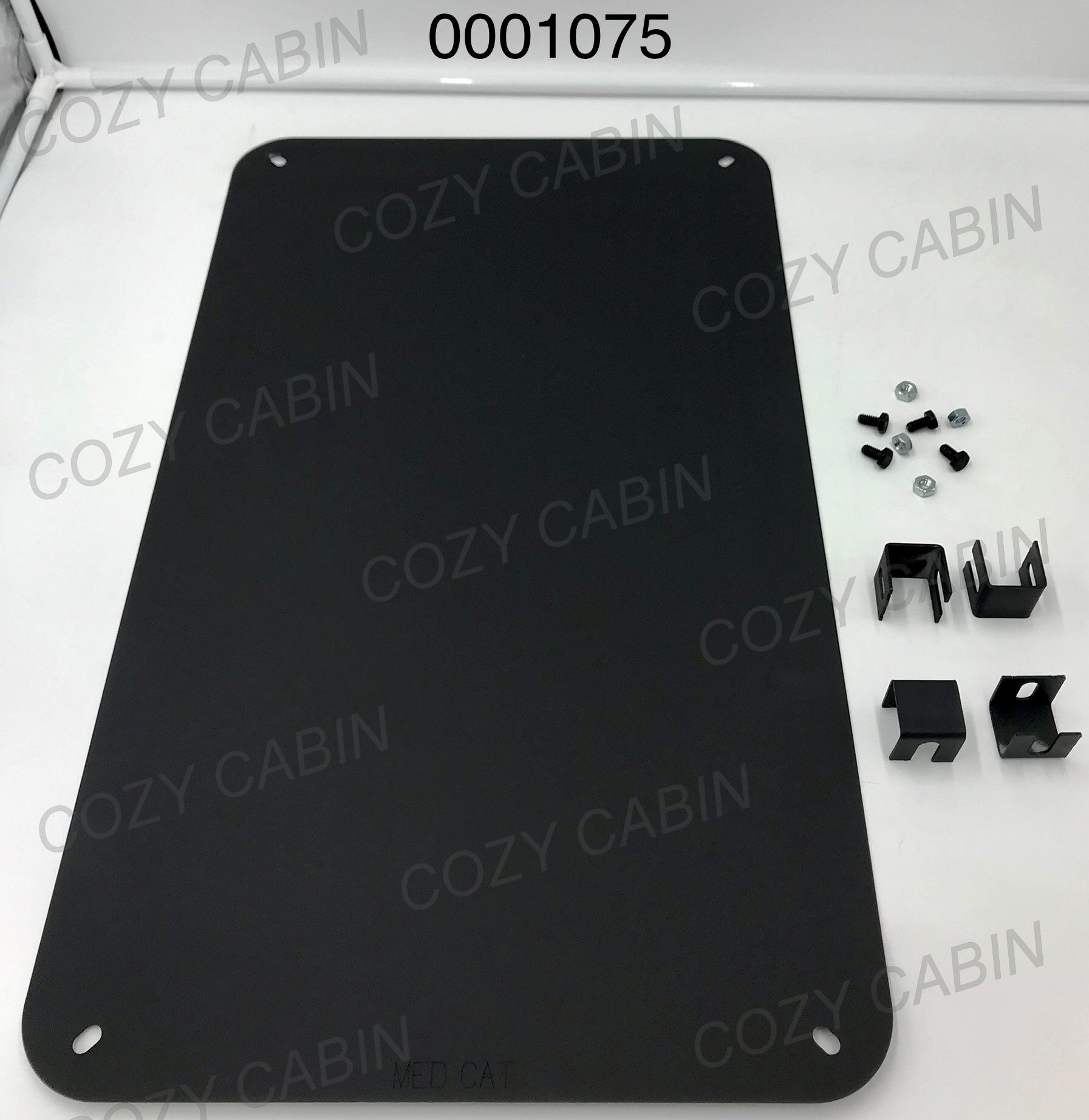

QTY: BOTTOM HEAT SHIELD LARGE [INCLUDES HARDWARE KIT] (0001075) +$155.53

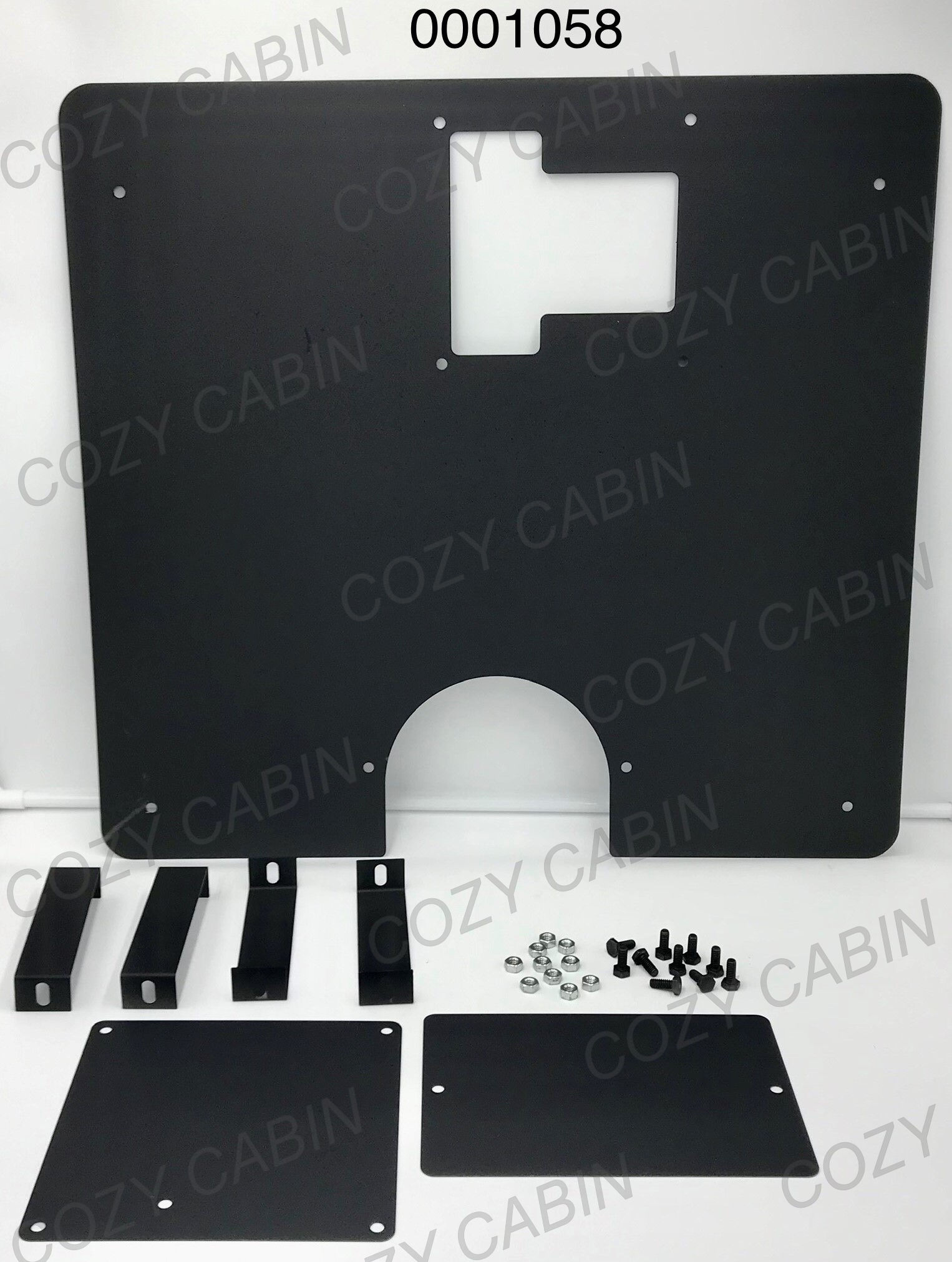

QTY: REAR HEAT SHIELD LARGE [INCLUDES HARDWARE KIT] (0001058) +$400.74

QTY: HARDWARE KIT ONLY [FITS BOTTOM OR REAR HEATSHIELD] (0001075H) +$110.50

QTY: WARMING SHELF BRACKET ~Old Part #7001223~ (7001223A) +$66.48

QTY: FAN THERMOSTAT WITH CORD (000FT1) +$Call to Order

QTY: FAN THERMOSTAT WITH O CORD (0000FT3) +$85.45

QTY: FAN RHEOSTAT (000FT5) +$127.68

QTY: 2IN SHORT LEG [2 per unit, each sold separatelyUIRED, EACH SOLD SEPARATELY] (000SL2) +$Call to Order

DUTCHWEST HARDWARE

Item Description (Part Number)

QTY: 4MM X 14MM PHILLIPS TRS HD SHEET METAL SCREW [STOVEPIPE TO FLUE COLLAR] (1202089) *No Longer Available* +$*0.00*

QTY: 8MM X 1 1/4 PHIL TRUS HD WD SCREW [WALL BRACKET] (1201301) +$11.18

QTY: 1/4_20 X 1/2 HEX HEAD CAP SCREW [HEAT SHIELD BYPASS CONNECTOR CLIP SEQUOIA GLASS FRAME] (1201338) +$12.65

QTY: _BC-20 HEX NUT [HEAT SHIELD] (1203210) +$11.18

QTY: PHILLIPS FLAT HEAD SCREW (1200881) +$11.18

QTY: 1/4_20 X 1-1/4 HEX HD CAP SCR [BOTTOM BACK LEG BOLT] (1201378) +$11.18

QTY: 1/4 X 7/8 FLAT WASHER [BOTTOM BACK FRONT TOP LEG BOLT] (1202470) +$12.26

QTY: 1/4_20 X 3/4 HEX HEAD CAP SCREW [SIDE PART REAR PART BYPASS GATE SIDE SUPPORT GRATE BACK SIDE HALF WALL BOOT PLATE SEQUOIA INNER BACK & FLUE COLLAR] (1201374) +$11.18

QTY: 1/4 STD FLAT WASHER [SIDE & REAR PART BACK BAFFLE TOP FRONT DOOR BOOT PLATE SEQUOIA INNER BACK SIDES FRONT GRATE BACK HINGES] (1202474) +$11.18

QTY: 1/4_20 X 5/8 PHIL FL HEAD MACHINE SCREW [BACK COVER PANEL] (1200865) +$14.31

QTY: 1/4_20 X 5/8 HEX HEAD CAP SCREW [BACK INLET PLATE SEQUOIA HINGES & HEARTH (1201372) +$11.18

QTY: 1/4_20 X 1-1/2 CRS STUD [BACK FRONT TOP] (1204214) +$20.18

QTY: 1/2-20 HEX NUT [BACK FRONT TOP SIDES TO BOTTOM A PLUS ASH DOOR FRAME] (1203210) +$11.18

QTY: HINGE PIN (1201836) +$11.38

QTY: 1/4_20 X 1 HEX HEAD CAP SCREW [BAFFLE A PLUS ASH BIN] ~Old Part #1201326~ (1201370) +$11.18

QTY: 1/4_20 X 1/2 HEX HEAD CAP SCREW [DOOR PANEL TORSION BAR CLIP] (1201338) +$12.65

QTY: 3/8-16 HEX JAM NUT [DOOR SHAFT] ~Old Part #1203157~ (1203290) +$11.18

QTY: 1/4 X 1-1/4 FENDER WASHER [ROCKER GRATE] (1202527) +$12.26

QTY: 1/4_20 X 1-1/2 PHIL FL HD SCREW [ROCKER GRATE] (1200815) +$11.18

QTY: WING NUT 1/4_20 [ROCKER GRATE] (1203110) +$11.38

QTY: 10-24 X 1/2 HEX HEAD CAP SCREW [ROCKER GRATE] (1201322) +$12.65

QTY: 3/8-16 X 1-1/2 HEX HEAD CAP SCREW [BYPASS GRATE CONNECTOR] (1201456) +$11.18

QTY: 3/8-16 HEX TOP LOCK JAM NUT [BYPASS GRATE CONNECTOR] (1203290) +$11.18

QTY: 1/4_20 X 7/8_94 10MM HEX HD CAP SCREW [TOP SIDE FOR SHROUD] (1201375) +$11.18

QTY: 7/16 X 5/8 LOCK WASHER [BRASS DIAL] (1202463) +$Call to Order

QTY: 3/8-16 NARROW HEX NUT [BRASS DIAL] (1203161) +$12.26

QTY: 1/4_20 X 1 3/4 PH FL HD [SIDES TO BOTTOM A PLUS ASH DOOR FRAME] (1200830) +$11.38

QTY: 1/4 X 3/4 WASHER [GRATEBACK] ~Old Part #1202469~ (1202470) +$12.26

QTY: 1/4_20 X 2 PIN HEX HD CS [INNER TOP CHANNEL SEQUOIA BAFFLE] (1201392) +$12.84

QTY: 1/4_20 X 1 1/4 STUD [SEQUOIA BACK] (1204212) +$11.18

QTY: 1/4_20 X 2 PHILLIPS FLAT HD MS [SEQUOIA AIR DISTRIBUTOR] (1200848) +$11.18

QTY: 1/4_20 X 1 1/4 PHILLIPS FLAT HD SCREW [SEQUOIA SHAKER GRATE COVER INLET PLATE] (1200811) +$11.18

QTY: 1/4_20 1 PHILLIPS FLAT HEAD SCREW [SEQUOIA TOP] (1200809) +$11.18

QTY: 1/4 FLAT WASHER [SEQUOIA SIDE HINGE] [each sold separately] (1202473) +$12.26

QTY: 5/16-18 X 5/16 SOCKET SET SCREW [SEQUOIA DOOR CATCH] (1200563) +$11.18

QTY: 1/4 X .5 OD FLAT WASHER [SEQUOIA HEARTH] (1202475) +$11.18

QTY: 1/4_20 X 1 HEX HD CAP SCREW [SEQUOIA LEG BOLT] (1201376) +$11.18
