Main : Wood Burning : Wood Stove Parts
Defiant Encore (2190) #2190

Defiant Encore (2190)

Item#: 2190

Price: $0.00


Order Now

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1-Secondary Air Cover Plate (1601492) +$59.17

QTY: 2-Secondary Air Probe ~Old Part #1601489~ (1601489A) +$139.62

QTY: 3-Secondary Air Linkage (1601486) +$10.95

QTY: 4-Secondary Air Flap (1601490) +$28.69

QTY: 5-Flue Collar Classic Black ~Old Part # 1304280~ (0000555) +$240.07

QTY: 5-Flue Collar Red (2324280) +$371.28

QTY: 5-Flue Collar Sand ~Old Part #1324280~ (SRV1324280) *No Longer Available* +$*0.00*

QTY: 5-Flue Collar Blue (1334280) +$Call to Order

QTY: 5-Flue Collar Ebony Black (1344280) +$Call to Order

QTY: 5-Flue Collar Forest Green (2324280) +$371.28

QTY: 6 Back Classic Black (1308620) +$337.04

QTY: 6 Back Sand (1328620) +$Call to Order

QTY: 6 Back Blue (1338620) +$Call to Order

QTY: 6 Back Midnight Black [Ebony] (1348620) +$Call to Order

QTY: 6 Back Forest Green (2318620) +$Call to Order

QTY: 7-Left Deflector (1608629) +$117.47

QTY: 8-Right Deflector (1608630) +$117.47

QTY: 9-Refractory Assembly with Access Panel ~Old Part #1602510~ (1602510A) +$700.48

QTY: 10-Ceramic Catalyst [Combustor] (30001152) +$464.64

QTY: 10A Metal Catalyst [Combustor] ~Old Part #30004588~ (30001152) +$464.64

QTY: 11-Refractory Access Panel Only (1602511) +$141.61

QTY: 12-Secondary Air SHIM (1201986) +$10.95

QTY: 13-Set Screw Only (1200563) +$11.18

QTY: 14-Right Griddle Quad ~Old Part #1301832~ (1301832A) +$97.23

QTY: 14A-1/4_20X1/2_94 Hex Head Cap Screw (1201338) +$12.65

QTY: 15-Left Griddle Quad ~Old Part #1301807~ (1301807A) +$97.23

QTY: 15A-1/4_20X1/2_94 Hex Head Cap Screw (1201338) +$12.65

QTY: 16-Griddle [no Quads] ~Old Part #1300797~ (1300797A) +$226.80

QTY: 17-Griddle Handle Complete ~Old Part # 5004022~ (30002775) +$95.88

QTY: 17B-Griddle Handle Wood Knob Only (1600661) +$11.68

QTY: 17C-Griddle Handle Bushing Only (1201900) +$11.18

QTY: 17D-Griddle Handle Wood Handle Screw (1201308) +$11.18

QTY: 17E-Griddle Handle Wood Handle Nut Only (1203210) +$11.18

QTY: 18 Top Classic Black ~Old Part #1308618~ (1308618A) +$272.31

QTY: 18A Top Bordeaux ~Old Part #2328618~ (SRV2328618) +$608.23

QTY: 18B Top Sand ~Old Part # 1328618~ (SRV1328618) +$755.87

QTY: 18C Top Blue (1338618) +$Call to Order

QTY: 18D Top Ebony Black (1348618) +$Call to Order

QTY: 18E Top Forest Green (2318618) +$390.33

QTY: 19-Damper Actuator Linkage (1601034) +$19.85

QTY: 20-Damper Actuator Rod (1601033) +$103.47

QTY: 21-Wedge ~Old Part # 1301810~ (1301810A) +$41.66

QTY: 22-Upper Fireback Only (1308624) *No Longer Available* [can sub 5008623] +$*0.00*

QTY: 22A-Upper Fireback/Damper Assembly [Includes: Upper Fireback, Damper Assembly, Lower Fireback, Combustion Throat Hood, Secondary Probe, Refractory Assembly, Gasket & Hardware] ~Old Part # 5008623~ (0005926) +$1652.85

QTY: 22B Fireback Hardware Kit (1308624H) +$26.84

QTY: 23-Damper Only (1308626) +$192.02

QTY: 24-Damper Tab (1601488) +$11.18

QTY: 25-Torsion Bar [Damper Rod] (1601035) +$137.22

QTY: 26-Torsion Bar Clip (1601036) +$40.25

QTY: 27-Combustion Throat ~Old Part # 1301145~ (1308625A) +$128.68

QTY: 28 Lower Fireback ~Old Part #1308646~ (1308646A) +$208.07

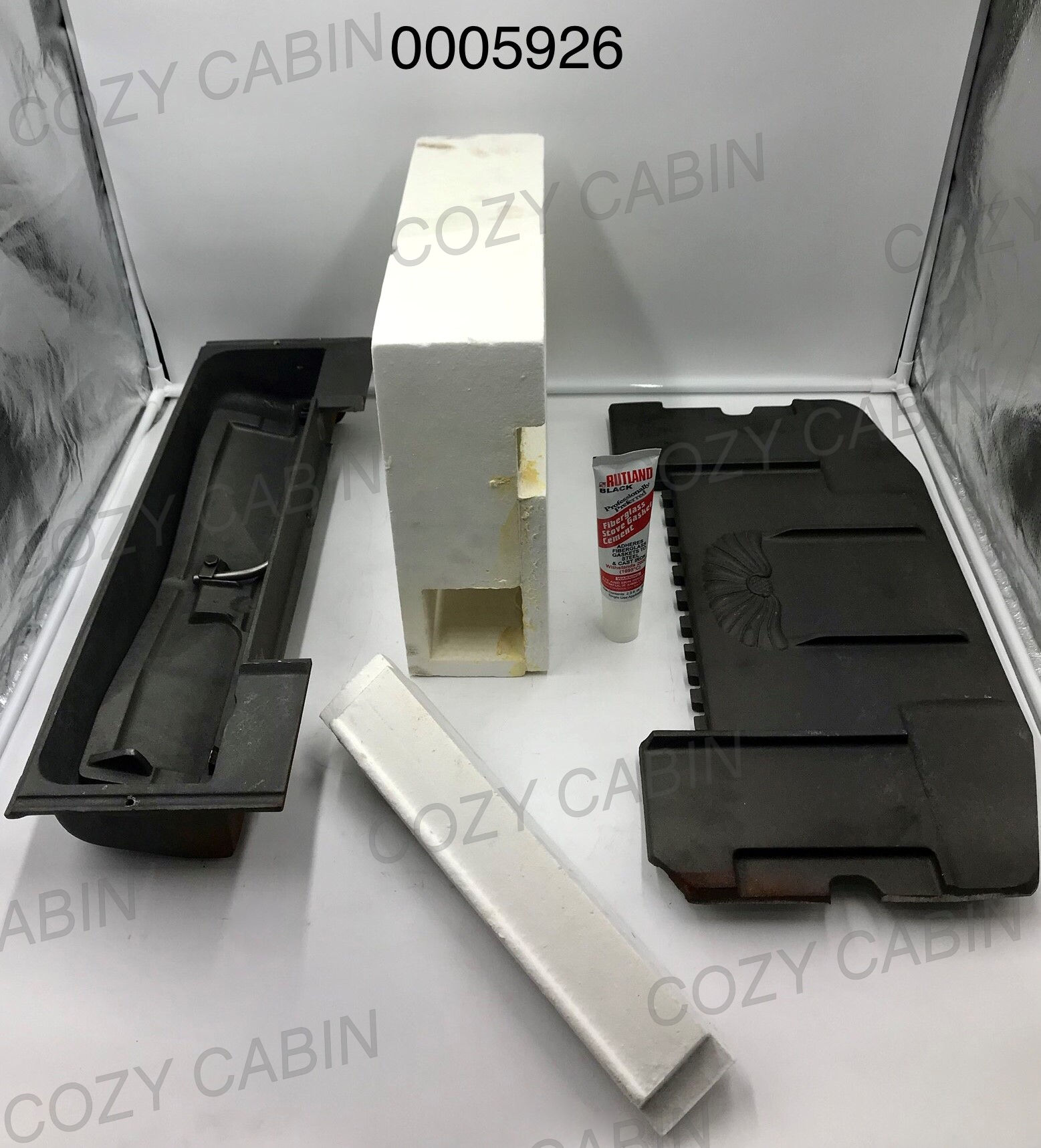

QTY: 28A Fireback Kit includes Part # 2 9 22A 27 28 & Hardware (0005926) +$1652.85

QTY: 28B Lower Fireback Gasket [15 ft per package] ~Old Part #1203588~ (1-00-1203588) +$59.19

QTY: 29-White Ceramic Handle with Screw & Insert (0004342) *No Longer Available* [can sub black handle 30004175K] +$*0.00*

QTY: 29A- Black Fallaway Handle Kit [includes: Black Handle, Screw & Nickel nub] (30004175K) +$83.56

QTY: 30-Damper Handle Screw Only (1201310) +$15.06

QTY: 31-Black Maple Damper Handle [Wood Part Only] (1600664) +$11.68

QTY: 32-Threaded Damper Nub Only (1600650) +$27.35

QTY: 33-Damper Handle Stub with Set Screw (5004265) +$73.01

QTY: 34 Left End Classic Black (1308616) *No Longer Available* +$*0.00*

QTY: 34 Left End Sand (1328616) *No Longer Available* +$*0.00*

QTY: 34 Left End Forest Green (2318616) *No Longer Available* +$*0.00*

QTY: 35-Left Air Plate (1308621) +$89.52

QTY: 36-Right Air Plate ~Old Part #1308622~ (1308622A) +$134.15

QTY: 33 Right End Classic Black ~Old Part #1308619~ (1308619A) +$294.90

QTY: 33 Right End Sand (1328619) +$Call to Order

QTY: 33 Right End Blue (1338619) +$Call to Order

QTY: 33 Right End Forest Green (2318619) *No Longer Available* +$*0.00*

QTY: 38B-Thermostat Wooden Handle Only (1600660) +$11.68

QTY: 38A-Thermostat Handle Stub with Set Screw ~Old Part # 5004264~ (30002716) +$46.60

QTY: 38C-Thermostat Handle Long Screw Only (1201243) +$10.95

QTY: 39-Thermostat (5005470) +$95.88

QTY: 40-Bottom Grate ~Old Part #1307434~ (1307434A) +$161.88

QTY: 41-Primary Cover Plate (1308609) +$102.23

QTY: 42-Primary Air Frame Only (1307411) +$55.36

QTY: 42A-Primary Air Valve Only (1307412) +$76.82

QTY: 42B-Primary Air Rod Only (1601493) +$44.06

QTY: 43-Primary Air Control Gasket (1203518) +$10.95

QTY: 44 Bottom (1308604) +$198.66

QTY: 45-Ashlip Sand (1327406) *No Longer Available* +$*0.00*

QTY: 45-Ashlip Ebony Black (1347406) +$Call to Order

QTY: 45-Ashlip Forest Green (2317406) +$Call to Order

QTY: 46-Friction Spring (1201846) +$11.18

QTY: 47-Flat Washer (1202471) +$10.95

QTY: 48-Eyelet for Thermostat Only (1201985) +$10.95

QTY: 49-Primary Air Cable (5005471) +$32.76

QTY: 50-Andiron ~Old Part #1307419~ (1307419A) +$108.17

QTY: 51-Leg Classic Black ~Old Part #1307427~ (1307427A) +$106.81

QTY: 51-Leg Sand ~Old Part # 1327427~ (SRV1327427) +$254.76

QTY: 51-Leg Blue (1337427) *No Longer Available* +$*0.00*

QTY: 51-Leg Ebony Black (1347427) +$72.20

QTY: 51-Leg Forest Green (2317427) +$73.82

QTY: 51-Leg Leveler Bolt (1201745) +$27.32

QTY: 53-AshDROP ~Old Part #1308603~ (1308603A) +$260.50

QTY: 54-Pawl Assembly 5004025 (30005157) +$49.14

QTY: 58A-Allen Wrench for Pawl Assembly (1205116) +$11.68

QTY: 55-Ashdoor ~Old Part #1308607~ (1308607A) +$166.87

QTY: 56-Ashdoor Handle Shaft Only (1600622) +$50.41

QTY: 56A-Ashdoor Wood Handle Only (1600663) +$13.01

QTY: 57-Ashdoor Hinge Pin (1208608) +$10.95

QTY: 59-Ashdoor Hinge ~Old Part # 1308605~ (1308605A) +$99.97

QTY: 60-Ashpan and Cover Assembly (5005746) +$175.52

QTY: 60A-Ashpan Only (1601025) +$127.64

QTY: 61-Ashpan Bracket (1601039) +$118.74

QTY: 62-Ashpan Cover (1601027) +$93.33

QTY: 63-Large Pawl Jam Nut (1203290) +$11.18

QTY: 64-Front Door Handle Set Screw (1200417) +$11.18

QTY: 65-7/16-20 X 1 Inch Socket Set Screw (1200334) +$10.95

QTY: 66 White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 66A Maple Wood Black Handle (1600664) +$11.68

QTY: 67-Ceramic Handle Screw Only (1201294) +$12.18

QTY: 70-Front Air Manifold (1308615) +$97.15

QTY: 71-Front Classic Black (1308612) +$Call to Order

QTY: 71A-Front Sand (1328612) +$Call to Order

QTY: 71B-Front Forest Green (2318612) +$Call to Order

QTY: 72-Left Door Air Manifold (1307403) +$49.14

QTY: 73-Left Door Only Classic Black ~Old Part # 1308613~ (1308613A) +$97.08

QTY: 73A-Left Door Only Blue (1338613) +$Call to Order

QTY: 73B-Left Door Hinge (1307402) *No Longer Available* +$*0.00*

QTY: 75-Right Door Manifold (1307404) +$55.36

QTY: 76-Right Door Hinge (1307402) *No Longer Available* +$*0.00*

QTY: 76A-Upper Hinge Pin (1600416) +$11.68

QTY: 76B-Lower Hinge Pin ~Old Part #1600417~ (30002727) +$10.95

QTY: 77-Front Handle Stub (30001759) +$113.66

QTY: 77A-Socket for Handle (1200334) +$10.95

QTY: 78-Right Door Only Classic Black ~Old Part #1308614~ (1308614A) +$198.43

QTY: 78A-Right Door Only Sand (1328614) +$Call to Order

QTY: 78B-Right Door Only Blue (1338614) *No Longer Available* +$*0.00*

QTY: 79-Glass Right Side IR Coated ~Old Part #1408629~ [recommend replacing the Glass Gasket] (1408629A) +$188.09

QTY: 80-Glass Gasket [both Windows] [10ft per package] ~Old Part #s 1203556, 1203556A, 1-00-1203556~ (1-00-1186258229) +$34.99

QTY: 81-Glass Left Side IR Coated (1408630) +$198.66

QTY: 84-Glass Clip Long SOLD per EACH (1601396) *No Longer Available* +$*0.00*

QTY: 84A-Clip Screw [sold separately] (1200980) +$11.18

QTY: 86-Gasket Kit [includes: Door, Damper, Flue Collar, Cat Access, Griddle, Ashpan Door and Glass Gaskets and Gasket Cement] (0003419) +$144.15

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 87 Rear Heat Shield (0000173) +$290.64

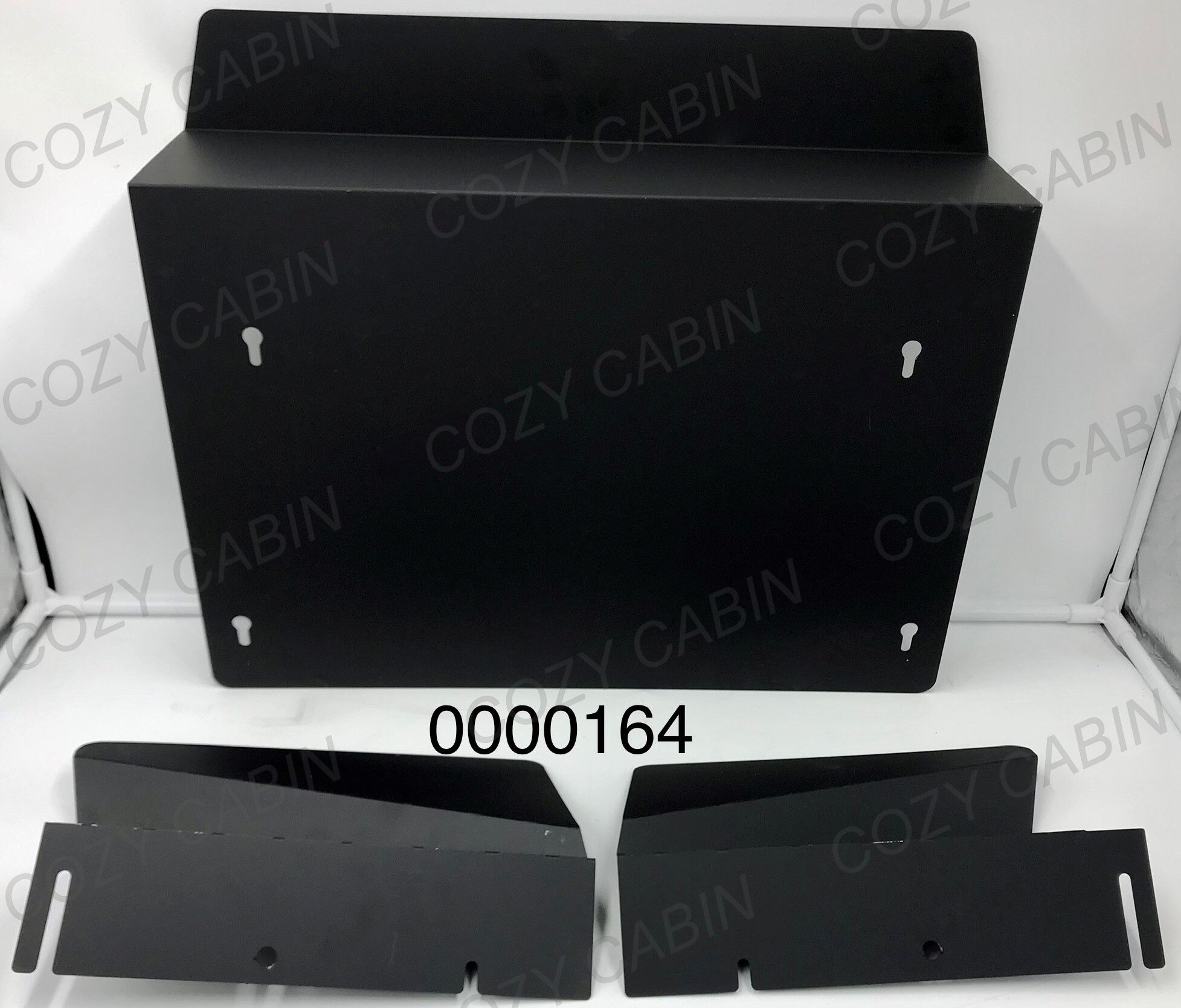

QTY: 88 Bottom Heat Shield (0000164) +$406.64

QTY: 89 Ash Pan Door (1402252) +$166.99

QTY: 90 Bottom Heat Shield (1201781) +$13.01

QTY: 91 Heat Shield Hardware [Rear or Bottom] (0005834) +$80.63

STOVE PIPE

Item Description (Part Number)

QTY: 94 8 Inch Oval to 8 Inch Round Low Profile Stove Adapter (0001836) +$165.77

QTY: 95 8 Inch Oval to 6 Inch Round Adapter Black (0001860) +$121.29

QTY: 96 8 Inch Oval to 8 Inch Round Standard Adapter Black (0001855) +$85.00

QTY: 97 8 Inch Oval to 8 Inch Round Offset Stove Adapter Black (0001841) +$165.77

QTY: 98 8 Inch Oval to 8 Inch Round Elbow Adapter Black (0001846) +$174.30

Accessories

Item Description (Part Number)

QTY: 99 Sparkscreen ~Old Part #0000127A~ (0000127) +$169.00

QTY: 100 Vermont Castings Leather Stove Gloves (0000112) +$56.00

QTY: 101 Stove Surface Thermometer (0000574) +$81.90

QTY: 102 Woodbox Cast Iron (0000930) +$679.00

QTY: 103 Child Guard Fence 3 Sided (0000975) +$219.00

QTY: 104 Trivet with Handle (0000094) +$76.00

QTY: 105 Cast Iron Steamer Twilight (0000794) +$309.00

QTY: 106 Cast Iron Steamer Bordeaux Enamel (0000793) +$409.00

QTY: 107 Cast Iron Steamer Majolica Brown Enamel (0000791) +$409.00

QTY: 108 Cast Iron Steamer Ebony Black Enamel (0000784) *No Longer Available* +$*0.00*

QTY: 109 Cast Iron Steamer Biscuit Enamel (0000775) *No Longer Available* +$*0.00*

WARMING SHELF PARTS

Item Description (Part Number)

QTY: 1 Shelf Only [Classic Black] ~Old Part # 1302208~ [2 per unit, each sold separately] (1302208A) +$149.19

QTY: 2 Shelf Only [Old Red] [2 per unit, each sold separately] (1312208) *No Longer Available* +$*0.00*

QTY: 3 Shelf Only [Sand] [2 per unit, each sold separately] (1322208) *No Longer Available* +$*0.00*

QTY: 4 Shelf Only [Blue] [2 per unit, each sold separately] (1332208) *No Longer Available* +$*0.00*

QTY: 5 Shelf Only [Midnight] [2 per unit, each sold separately] (1342208) *No Longer Available* +$*0.00*

QTY: 6 Shelf Only [Forest Green] [2 per unit, each sold separately] (2312208) *No Longer Available* +$*0.00*

QTY: 7 Shelf Only [Antique Brown] [2 per unit, each sold separately] (NLA) *No Longer Available* +$*0.00*

QTY: 8 Dragon Bracket [Classic Black] [2 per unit, each sold separately]~Old Part # 1302220~ (1302220A) +$99.97

QTY: 9 Dragon Bracket [Old Red] [2 per unit, each sold separately] (1312220) *No Longer Available* +$*0.00*

QTY: 10 Dragon Bracket [Sand] [2 per unit, each sold separately] (1322220) +$180.72

QTY: 11 Dragon Bracket [Blue] [2 per unit, each sold separately] (1332220) *No Longer Available* +$*0.00*

QTY: 12 Dragon Bracket [Midnight] [2 per unit, each sold separately] ~Old Part # 1342220~ (SRV1342220) +$337.71

QTY: 13 Dragon Bracket [Forest Green] [2 per unit, each sold separately] (2312220) *No Longer Available* +$*0.00*

QTY: 14 Dragon Bracket [Antique Brown] [2 per unit, each sold separately] (NLA) *No Longer Available* +$*0.00*

QTY: 15 Left Cast Bracket [2 per unit, each sold separately] ~Old Part # 1302221~ (1302221A) +$70.13

QTY: 16 Right Cast Bracket [2 per unit, each sold separately] ~Old Part # 1302222~ (1302222A) +$64.66

QTY: 17 Mittenrack [2 per shelf, each sold separately] (1601705) +$17.01

QTY: 18 Hardware Package (5007234) +$28.69

QTY: 19 Allen Wrench (1205116) +$11.68
