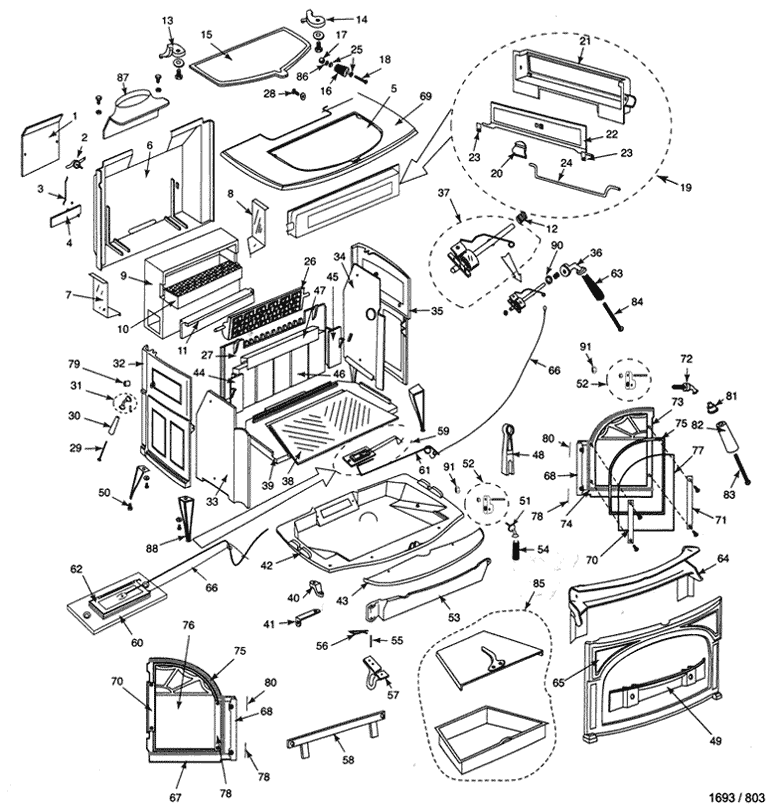

Defiant Woodburning Stove (1945) #1945

Defiant Woodburning Stove (1945)


Item#: 1945

Price: $0.00


Order Now

Item Description (Part Number)

QTY: 1 Secondary Air Cover Plate (1601492) +$45.67

QTY: 2 Secondary Air Probe Assembly ~Old Part #1601489~ (1601489A) +$112.45

QTY: 3 Secondary Air Link (1601486) +$11.38

QTY: 4 Secondary Air Flap (1601490) +$28.62

QTY: 6 Back (30001581) +$407.44

QTY: 7 Left Heat Deflector (1608629) +$113.85

QTY: 8 Right Heat Deflector (1608630) +$113.85

QTY: 9 Refractory Assembly with Access Panel ~Old Part #1602510~ (1602510A) +$574.49

QTY: 10 Ceramic Catalytic Combustor [Boxed] (30001152) +$439.59

QTY: 10A Metal Catalyst [Combustor] ~Old Part # 30004588~ (30001152) +$439.59

QTY: 11 Refractory Access Panel (1602511) +$143.20

QTY: 12 Thermostat Friction Spring (1201846) +$11.18

QTY: 13 Left Griddle Quad ~Old Part #1301807~ (1301807A) +$91.49

QTY: 13A Cap Screw (1201338) +$12.65

QTY: 14 Right Griddle Quad ~Old Part #1301832~ (1301832A) +$91.49

QTY: 14A Cap Screw (1201338) +$12.65

QTY: 15 Griddle ~Old Part #1300641~ (1300641A) +$335.09

QTY: 16 Griddle Handle ~Old Part #1600657~ (1600657A) +$28.62

QTY: 16a Griddle Handle Package [includes Part# 16 17 18 25&86] (0004362) +$80.31

QTY: 17 Griddle Handle Spacer (1600070) +$18.71

QTY: 18 Griddle Handle Bolt (1200907) +$11.18

QTY: 19 Upper Firebrick Assembly (5000030) +$482.47

QTY: 20 Damper Ramp (1300643) +$25.69

QTY: 20a Damper Ramp Hardware Kit (1300643H) +$16.66

QTY: 21 Upper Fireback (1300633) +$179.67

QTY: 22 Damper (1300634) +$83.10

QTY: 23 Damper Tab (1601488) +$11.18

QTY: 24 Damper Rod (1600065) +$137.61

QTY: 25 Griddle Handle Bushing (1201895) +$24.52

QTY: 26 Throat Baffle ~Old Part #1300635~ (SRV1300635) +$129.22

QTY: 27 Lower Fireback (1300638) +$136.21

QTY: 28 Upper Fireback Bolt (1201374) +$11.18

QTY: 29 Damper Handle Screw (1201310) +$15.06

QTY: 30 Black Maple Damper Handle [Wood Part Only] (1600664) +$12.84

QTY: 31 Damper Handle with Set Screw ~Old Part #30002720~ (30002720A) +$85.90

QTY: 32 Left Side Classic Black ~Old Part #30001580~ (30001580A) +$272.12

QTY: 32A Left Side Biscuit ~Old Part #30002963~ (SRV30002963) +$690.14

QTY: 32B Left Side Bordeaux ~Old Part #30002953~ (SRV30002953) +$797.32

QTY: 32C Left Side Chestnut Brown (30002973) +$Call To Order

QTY: 32D Left Side Ebony (30002983) +$670.04

QTY: 32E Left Side Forest Green (30001626) +$Call To Order

QTY: 32F Left Side Midnight Blue (30001620) +$Call To Order

QTY: 32G Left Side Sand (30001614) +$Call To Order

QTY: 32H Left Side Suede Brown (30002574) +$Call To Order

QTY: 32I Left Side Vermont Classic Green (30002993) +$Call To Order

QTY: 32J Left Side Brick Blue (30003343) +$Call To Order

QTY: 32K Left Side Country Cookware Gray (30003354) +$Call To Order

QTY: 32L Left Side Granite Gray (30003365) +$Call To Order

QTY: 32M Left Side Sage Green (30003376) +$Call To Order

QTY: 33 Left Air Plate [Inner Side] (1300637) +$139.00

QTY: 34 Right Air Plate [Inner Side] (1300636) +$129.22

QTY: 35 Right Side Classic Black ~Old Part #30001579~ (30001579A) +$225.23

QTY: 35A Right Side Biscuit ~Old Part #30002962~ (SRV30002962) +$708.89

QTY: 35B Right Side Bordeaux ~Old Part #30002952~ (SRV30002952) +$797.32

QTY: 35C Right Side Chestnut Brown (30002972) +$Call To Order

QTY: 35D Right Side Ebony (30002982) +$670.04

QTY: 35E Right Side Forest Green (30001625) +$Call To Order

QTY: 35F Right Side Midnight Blue (30001619) +$Call To Order

QTY: 35G Right Side Sand (30001613) +$Call To Order

QTY: 35H Right Side Suede Brown (30002573) +$Call To Order

QTY: 35I Right Side Vermont Classic Green (30002992) +$Call To Order

QTY: 35J Right Side Brick Blue (30003342) +$Call To Order

QTY: 35K-Right Side Country Cookware Gray (30003353) +$Call To Order

QTY: 35L Right Side Granite Gray (30003364) +$Call To Order

QTY: 35M Right Side Sage Green (30003375) +$Call To Order

QTY: 36 Thermostat Stub with Set Screw Brushed Nickel (30002716) +$44.27

QTY: 36a Thermostat Handle Base Assembly (1600660) +$12.84

QTY: 36b Thermostat Handle Long Screw Only (1201243) +$12.26

QTY: 37 Thermostat (5005470) +$85.90

QTY: 38 Grate ~Old Part #1300639~ (1300639A) +$143.20

QTY: 39 Primary Air Cover Plate (1300622) +$186.37

QTY: 40 Top Ashdoor Hinge ~Old Part # 30001689~ (30001689A) +$45.67

QTY: 41 Door Handle Holer (1600600) +$25.69

QTY: 42 Bottom ~Old Part # 30001577~ (30001577A) +$481.13

QTY: 43 Ashlip Classic Black ~Old Part # 1300621~ (1300621A) +$105.46

QTY: 43a Ashlip Biscuit (30002961) +$Call To Order

QTY: 43b Ashlip Bordeaux ~Old Part #30002951~ (SRV30002951) +$253.36

QTY: 43c Ashlip Chestnut Brown (30002971) +$Call To Order

QTY: 43d Ashlip Ebony (30002981) +$469.07

QTY: 43e Ashlip Midnight Blue (2370621) +$Call To Order

QTY: 43f Ashlip Sand (1320621) +$Call To Order

QTY: 43g Ashlip Suede Brown (30002583) +$148.69

QTY: 43h Ashlip Vermont Classic Green (30002991) +$Call To Order

QTY: 43i Ashlip Brick Blue (30003341) +$Call To Order

QTY: 43j Ashlip Country Cookware Gray (30003352) +$Call To Order

QTY: 43k Ashlip Granite Gray (30003363) +$140.67

QTY: 43l Ashlip Sage Green (30003374) +$Call To Order

QTY: 44 Left Side Wedge (1300628) +$51.26

QTY: 45 Right Side Wedge (1300644) +$45.67

QTY: 46 Firebrick (1601103) +$12.84

QTY: 47 Firebrick Retainer (1600066) +$118.04

QTY: 48 Andiron ~Old Part #1300646~ (1300646A) +$55.45

QTY: 49 Andiron Shelf ~Old Part #1300640~ (1300640A) +$81.70

QTY: 50 Leg Leveler (1201745) +$27.32

QTY: 51 Ashdoor Handle Shaft (1600622) +$48.46

QTY: 52 Pawl Assembly ~Old Part # 5004025~ new Upgraded Roller Style (30005157) +$54.05

QTY: 53 Ashdoor ~Old Part # 1300619~ (1300619A) +$154.38

QTY: 54 Ashdoor Handle [Wood] (1600663) +$12.84

QTY: 55 Ashdoor Hinge Rod (30004028) +$25.69

QTY: 56 Cotter Pin Ashdoor (30001749) +$12.26

QTY: 57 Ashdoor Bottom Hinge Support ~Old Part #s 1300642, 1-00-1300642~ (1300642A) +$60.89

QTY: 58 Ashpan Bracket ~Old Part # 30001908~ (30001908A) +$66.48

QTY: 59 Primary Air Valve Assembly [#S 60 61 62] (5000024) +$Call To Order

QTY: 60 Primary Air Frame (1307411) +$45.67

QTY: 61 Primary Air Rod (1600058) +$20.18

QTY: 62 Primary Air Valve (1307412) +$66.48

QTY: 63 Thermostat Handle [Wood] (1600660) +$12.84

QTY: 64 Airwash Manifold (1300627) +$137.61

QTY: 65 Front Classic Black ~Old Part #30001578~ (30001578A) +$410.12

QTY: 65A Front Biscuit ~Old Part #30002964~ (SRV30002964) +$833.49

QTY: 65B Front Bordeaux ~Old Part #30002954~ (SRV30002954) +$1050.54

QTY: 65C Front Chestnut Brown (30002974) +$Call To Order

QTY: 65D Front Ebony (30002984) +$Call To Order

QTY: 65E Front Forest Green (30001624) +$Call To Order

QTY: 65F Front Midnight Blue (30001618) +$Call To Order

QTY: 65G Front Sand (30001612) +$Call To Order

QTY: 65H Front Suede Brown (30002575) +$Call To Order

QTY: 65I Front Vermont Classic Green (30002994) +$Call To Order

QTY: 65J Front Brick Blue (30003344) +$Call To Order

QTY: 65K Front Country Cookware Gray (30003355) +$Call To Order

QTY: 65L Front Granite Gray (30003366) +$Call To Order

QTY: 65M Front Sage Green (30003377) +$Call To Order

QTY: 66 Thermostat Cable (5005471) +$31.55

QTY: 67 Left Door ~Old Part # 1300626~ (1300626A) +$203.79

QTY: 67A Left Door Biscuit ~Old Part #30002966~ (SRV30002966) +$690.14

QTY: 67B Left Door Bordeaux ~Old Part #30002956~ (30002956A) +$447.63

QTY: 67C Left Door Chestnut Brown (30002976) +$Call To Order

QTY: 67D Left Door Ebony (30002989) +$Call To Order

QTY: 67E Left Door Forest Green (2310626) +$277.65

QTY: 67F Left Door Midnight Blue (2370626) +$353.85

QTY: 67G Left Door Sand ~Old Part #1320626~ (SRV1320626) +$386.00

QTY: 67H Left Door Suede Brown (30002577) +$Call To Order

QTY: 67I Left Door Vermont Classic (30002996) +$Call To Order

QTY: 67J Left Door Brick Blue 186.40 (30003346) +$Call To Order

QTY: 67K Left Door Country Cookware Gray 186.40 (30003357) +$Call To Order

QTY: 67l Left Door Granite Gray 186.40 (30003368) +$Call To Order

QTY: 67M Left Door Sage Green 186.40 (30003379) +$Call To Order

QTY: 68 Door Hinge Strip ~Old Part #1300645~ (1300645A) +$45.67

QTY: 69 Top Classic Black ~Old Part #30001582~ (30001582A) +$482.47

QTY: 69A Top Biscuit ~Old Part # 30002967~ (SRV30002967) +$1034.46

QTY: 69B Top Bordeaux ~Old Part #30002957~ (SRV30002957) +$892.45

QTY: 69C Top Chestnut Brown ~Old Part #30002977~ (SRV30002977) +$833.49

QTY: 69D Top Ebony (30002987) +$619.12

QTY: 69E Top Forest Green (30001627) +$559.01

QTY: 69F Top Midnight Blue ~Old Part #30001621~ (SRV30001621) +$1013.03

QTY: 69G Top Sand ~Old Part #30001615~ (SRV30001615) +$700.97

QTY: 69H Top Suede Brown (30002578) +$487.82

QTY: 69I Top Vermont Classic Green (30002997) +$746.41

QTY: 69J Top Brick Blue (30003347) +$Call To Order

QTY: 69K Top Country Cookware Gray (30003358) +$Call To Order

QTY: 69L Top Granite Gray (30003369) +$Call To Order

QTY: 69M Top Sage Green (30003380) +$Call To Order

QTY: 70 Glass Clip (30001715) +$66.48

QTY: 70A Glass Clip Screw [2 per unit, each sold separately] (1200998) +$11.18

QTY: 71 Glass Clip [Right Door Only] (30001716) +$66.48

QTY: 71A Glass Clip Screw [2 per unit, each sold separately] (1200998) +$11.18

QTY: 72 Front Door Handle & Shaft (30002717) +$83.10

QTY: 73 Right Door ~Old Part # 1300625~ (1300625A) +$234.60

QTY: 73A Right Door Biscuit (30002965) +$684.78

QTY: 73B Right Door Bordeaux (30002955) +$465.05

QTY: 73C Right Door Chestnut Brown ~Old Part #30002975~ (SRV30002975) +$538.74

QTY: 73D Right Door Ebony ~Old Part #30002985~ (SRV30002985) +$762.48

QTY: 73E Right Door Forest Green (2310625) +$277.65

QTY: 73F Right Door Midnight Blue (2370625) +$386.00

QTY: 73G Right Door Sand ~Old Part #1320625~ (SRV1320625) +$538.74

QTY: 73H Right Door Suede Brown (30002576) +$277.65

QTY: 73I Right Door Vermont Classic (30002995) +$Call To Order

QTY: 73J Right Door Brick Blue (30003345) +$245.88

QTY: 73K Right Door Country Cookware Gray (30003356) +$Call To Order

QTY: 73L Right Door Granite Gray (30003367) +$Call To Order

QTY: 73M Right Door Sage Green (30003378) +$Call To Order

QTY: 74 Door Gasket [15 ft per package] ~Old Part #1203588~ (1-00-1203588) +$45.67

QTY: 76 Left Door Glass [Ir Coated] (1600064) +$264.08

QTY: 77 Right Door Glass [Ir Coated] (1600062) +$264.08

QTY: 78 Lower Door Hinge Pin (30002727) +$11.38

QTY: 79 Spacer [for Damper Rod] (1201779) +$11.18

QTY: 80 Upper Door Hinge Pin (30002727) +$11.38

QTY: 81 Fallaway Handle Base Stub (30002714) +$30.09

QTY: 82 Black Maple Damper Handle [Wood Part Only] (1600664) +$12.84

QTY: 83 Handle Bolt (1201294) +$12.18

QTY: 83A Black Wood Handle with Lifter Nickel ~Old Part #0004345~ (30002787) +$37.43

QTY: 83B Wood Complete Fallaway Handle Assembly with Nickel Nub includes Part# 81 82 83 (30002787) +$37.43

QTY: 84 Thermostat Handle Bolt (1201243) +$12.26

QTY: 85 Ash Pan Assembly (30001690) +$203.79

QTY: 85A Ash Pan Cover Only (30001691) +$47.69

QTY: 86 Flat Washer (1202475) +$11.18

QTY: 87 Flue Collar Classic Black ~Old Part #30001576~ (30001576A) +$190.39

QTY: 87A Flue Collar Biscuit ~Old Part # 30002947~ (SRV30002947) +$329.73

QTY: 87B Flue Collar Bordeaux ~Old Part #30002921~ (SRV30002921) +$402.08

QTY: 87C Flue Collar Chestnut Brown ~Old Part #30002932~ (SRV30002932) +$302.93

QTY: 87D Flue Collar Ebony ~Old Part #30002910~ (SRV30002910) +$653.96

QTY: 87E Flue Collar Forest Green (30001623) +$Call To Order

QTY: 87F Flue Collar Midnight Blue ~Old Part #30001617~ (SRV30001617) +$386.00

QTY: 87G Flue Collar Sand (30001611) +$Call To Order

QTY: 87H Flue Collar Suede Brown (30002579) +$239.28

QTY: 87I Flue Collar Vermont Classic Green (30002943) +$Call To Order

QTY: 87J Flue Collar Brick Blue (30003349) +$224.32

QTY: 87K Flue Collar Country Cookware Gray (30003360) +$Call To Order

QTY: 87L Flue Collar Granite Gray (30003371) +$Call To Order

QTY: 88 Leg Defiant Classic Black [4 per unit, each sold separately] (30001583A) +$92.89

QTY: 88A Leg Biscuit [4 per unit, each sold separately] (30002968) +$161.27

QTY: 88B Leg Bordeaux [4 per unit, each sold separately] ~Old Part # 30002958~ (SRV30002958) +$252.02

QTY: 88C Leg Chestnut Brown [4 per unit, each sold separately] (30002978) +$125.03

QTY: 88D Leg Ebony [4 per unit, each sold separately] ~Old Part # 30002988~ (SRV30002988) +$419.50

QTY: 88E Leg Forest Green [4 per unit, each sold separately] (30001628) +$166.39

PIPE

Item Description (Part Number)

QTY: 89 8 Inch Oval to 8 Inch Round Black Low Profile Stove Adapter (0001836) +$125.38

QTY: 90 8 Inch Oval to 8 Inch Round Black Standard Stove Adapter (0001855) +$77.00

QTY: 91 8 Inch Oval to 8 Inch Round Offset Stove Adapter (0001841) +$112.00

QTY: 92 8 Inch Oval to 8 Inch Round Black Elbow Stove Adapter (0001846) +$119.00

QTY: 93 8 Inch Oval to 6 Inch Round Black Standard Stove Adapter (0001860) +$77.00

Accessories

Item Description (Part Number)

QTY: 94 Vermont Castings Leather Stove Gloves (0000112) +$49.00

QTY: 95 Stove SurFace Thermometer (0000574) +$61.06

QTY: 96 Cast Iron Woodbox (0000930) +$509.00

QTY: 97 3 Sided Child Guard Fence (0000975) +$179.00

QTY: 98 Trivet with Handle (0000094) +$59.00

QTY: 99 Twilight Cast Iron Steamer (0000794) +$249.00

QTY: 100 Bordeaux Enamel Cast Iron Steamer (0000793) +$309.00

QTY: 101 Majolica Brown Enamel Cast Iron Steamer (0000791) +$299.00

QTY: 102 Ebony Black Enamel Cast Iron Steamer (0000784) +$823.75

QTY: 103 Biscuit Enamel Cast Iron Steamer (0000775) *No Longer Available* +$*0.00*

QTY: 104 Spark Screen [for use with 8 Inch Venting Only] (0001907) +$136.50

QTY: 105 Gasket Kit (0004322) +$150.18

QTY: 106 Outside Air Adapter (0001904) +$*0.00*

QTY: 107 Rear Heat Shield (0001901) +$319.01

QTY: 107A Hardware Package for Rear and Bottom Heat Shield (0005834) +$77.69

QTY: 107B Ashdoor Heat Shield (1401911) +$225.73

QTY: 108 Owners Manual [hard copy] (OMHC-VC) +$9.99

QTY: 109 Owners Manual [electronic copy] (OMEL-VC) +$0.00

WARMING SHELF KITS

[Includes: 1 Shelf, 1 Left Bracket, 1 Right Bracket, 1 Dragon Bracket, 2 Mittenracks and Hardware]

Item Description (Part Number)

QTY: 110 Warming Shelf Kit [Classic Black] [2 per unit, each sold separately] (0001560) +$179.00

QTY: 111 Warming Shelf Kit [Majolica Brown] [2 per unit, each sold separately] (0001553) +$279.00

QTY: 112 Warming Shelf Kit [Biscuit] [2 per unit, each sold separately] (0001555) *No Longer Available* +$*0.00*

QTY: 113 Warming Shelf Kit [Chestnut Brown] [2 per unit, each sold separately] (0001556) *No Longer Available* +$*0.00*

QTY: 114 Warming Shelf Kit [Ebony] [2 per unit, each sold separately] (0001557) *No Longer Available* +$*0.00*

QTY: 115 Warming Shelf Kit [Vermont Classic Green] [2 per unit, each sold separately] (0001558) *No Longer Available* +$*0.00*

QTY: 116 Warming Shelf Kit [Bordeaux] [2 per unit, each sold separately] (0001565) +$577.59

QTY: 117 Warming Shelf Kit [Sand] [2 per unit, each sold separately] (0001562) +$Call to Order

QTY: 118 Warming Shelf Kit [Forest Green] [2 per unit, each sold separately] (0001566) +$210.41

QTY: 119 Warming Shelf Kit [Midnight Blue] [2 per unit, each sold separately] (0001567) *No Longer Available* +$*0.00*

INDIVIDUAL PARTS

Item Description (Part Number)

QTY: 120 Shelf Only [Classic Black] [2 per unit, each sold separately] (1302208A) +$111.05

QTY: 121 Shelf Only [Majolica Brown] [2 per unit, each sold separately] (SRV30004817) +$289.54

QTY: 122 Shelf Only [Biscuit] [2 per unit, each sold separately] (SRV30003090) +$289.54

QTY: 123 Shelf Only [Chestnut Brown] [2 per unit, each sold separately] (30003091) +$Call to Order

QTY: 124 Shelf Only [Ebony] [2 per unit, each sold separately] (30003092) +$Call to Order

QTY: 125 Shelf Only [Vermont Classic Green] [2 per unit, each sold separately] (30003093) +$Call to Order

QTY: 126 Shelf Only [Bordeaux] [2 per unit, each sold separately] [Prior to July 2013] (SRV2322208) +$491.85

QTY: 127 Shelf Only [Sand] [2 per unit, each sold separately] (1322208) +$Call to Order

QTY: 128 Shelf Only [Forest Green] [2 per unit, each sold separately] (2312208) +$Call to Order

QTY: 129 Shelf Only [Midnight Blue] [2 per unit, each sold separately] (2372208) +$Call to Order

QTY: 130 Dragon Bracket [Classic Black] [2 per unit, each sold separately] (1302220A) +$90.09

QTY: 131 Dragon Bracket [Majolica Brown] [2 per unit, each sold separately] (SRV30004818) +$164.93

QTY: 132 Dragon Bracket [Biscuit] [2 per unit, each sold separately] ~Old Part # 30002948~ (SRV30002948) +$167.61

QTY: 133 Dragon Bracket [Chestnut Brown] [2 per unit, each sold separately] (30002949) +$Call to Order

QTY: 134 Dragon Bracket [Ebony] [2 per unit, each sold separately] ~Old Part # 1342220~ (SRV1342220) +$258.72

QTY: 135 Dragon Bracket [Vermont Classic Green] [2 per unit, each sold separately] (30002950) +$Call to Order

QTY: 136 Dragon Bracket [Bordeaux] [2 per unit, each sold separately] [Prior to July 2013] (SRV2322220) +$233.26

QTY: 137 Dragon Bracket [Sand] [2 per unit, each sold separately] (1322220) +$180.72

QTY: 138 Dragon Bracket [Forest Green] [2 per unit, each sold separately] (2312220) +$Call to Order

QTY: 139 Dragon Bracket [Midnight Blue] [2 per unit, each sold separately] (2372220) *No Longer Available* +$*0.00*

QTY: 140 Left Cast Bracket [2 per unit, each sold separately] (1302221A) +$62.29

QTY: 141 Right Cast Bracket [2 per unit, each sold separately] (1302222A) +$51.26

QTY: 142 Mittenrack [2 per shelf, each sold separately] (1601705) +$18.71

QTY: 143 Hex Head Cap Screw [used without Washer] [2 per shelf, each sold separately] (1201338) +$12.65

QTY: 144 Hex Head Cap Screw [used with Washer] [2 per shelf, each sold separately] (1201372) +$11.18

QTY: 145 Washer [3 per shelf, each sold separately] (1202473) +$12.26

QTY: 146 Leveling Set Screw [4 per unit, each sold separately] (1200422) +$11.38

QTY: 147 Allen Wrench (1205116) +$12.84

Related Items:
  •  DEFIANT COMPLETE GASKET KIT
  • AVAILABLE IN:
    QTY:

    Continue Shopping


    SmartCart Ecommerce System SmartCart® Ecommerce

    2014 Cozy Cabin Vermont Castings Parts Store
    518-623-4349

    Website Design by Nolee-O Web Design
