MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Rear Cover [Secondary Air Cover] ~Old Part # 1306762~ (1306762A) +$98.48
QTY: 2 Flue Collar ~Old Part # 1306561~ (1306561A) +$214.51
QTY: 3 Back Panel ~Old Part # 1308662~ (1308662A) +$319.01
QTY: 4 Damper Rod (1602523) +$62.29
QTY: 5 Damper D Plate [Damper Clip] ~Old Part # 1306725~ (1306725A) +$45.67
QTY: 6 Damper ~Old Part # 1306701~ (1306701A) +$72.07
QTY: 7 Damper Housing ~Old Part # 1306702~ (1306702A) +$104.07

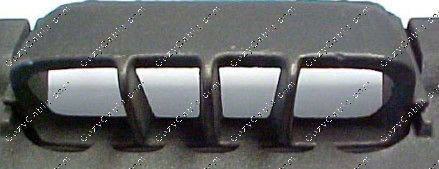

QTY: 8 Throat Hood ~Old Part #30001649~ (1306763A) +$67.88
QTY: 9 Welded Screw [3 per unit, each sold separately] (1201583) +$11.18
QTY: 10 Upper Fireback ~Old Part # 1306703~ (1306703A) +$92.89

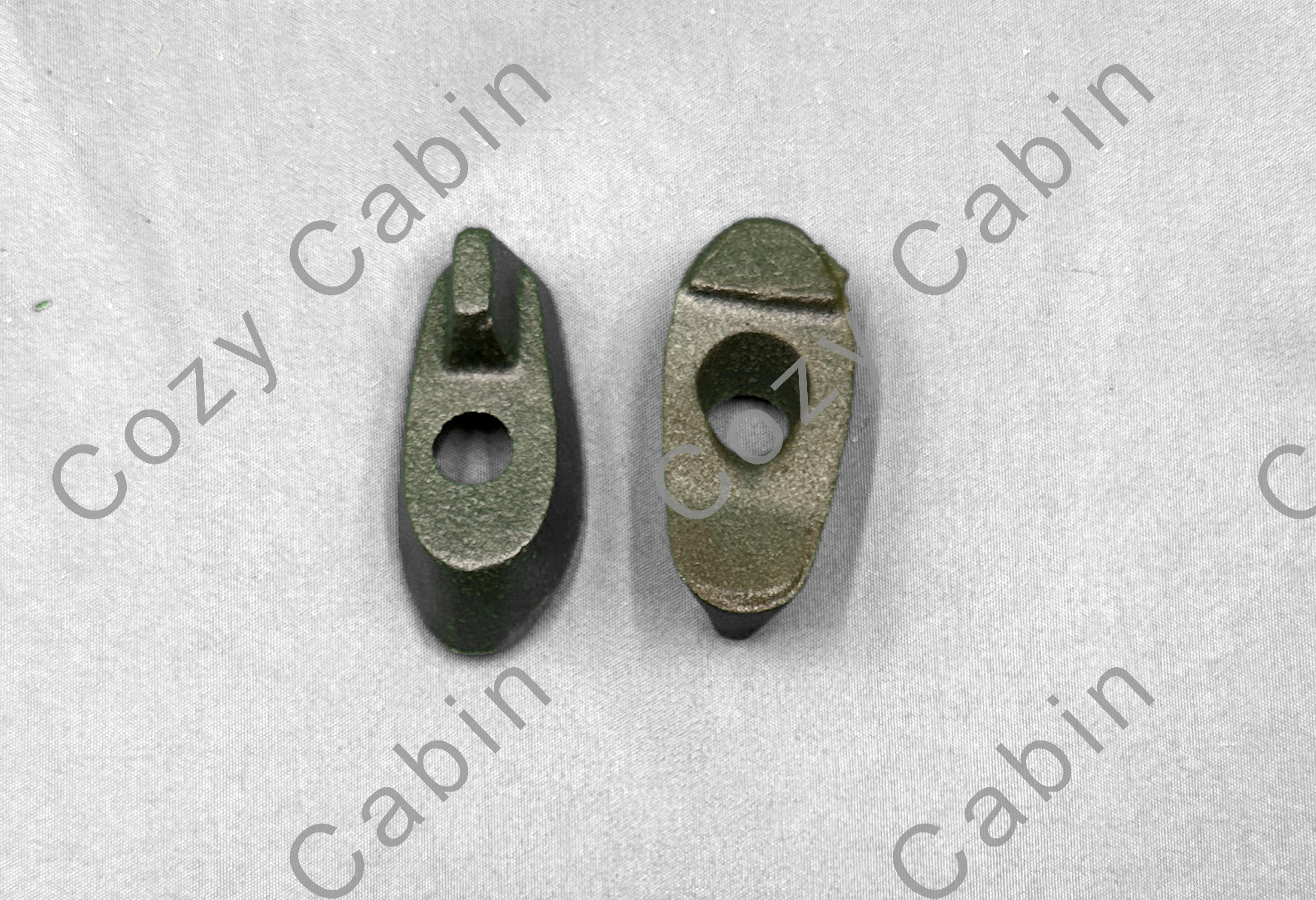

QTY: 11 Fireback Clamp ~Old Part # 1306724~ [2 per unit, each sold separately] (1306724A) +$33.02
QTY: 12 Hex Bolt [2 per unit, each sold separately] (1201456) +$11.18
QTY: 13 Lower Fireback (1306704) +$62.29
QTY: 16 Rear Air Tube (1308658) +$52.66
QTY: 20 Thermostat Cover ~Old Part # 1306711~ (1306711A) +$94.28
QTY: 21 Damper Handle Stub (5004265) +$70.67
QTY: 22 Friction Spring (1201846) +$11.18
QTY: 23 Thermostat (5005506) +$92.89
QTY: 24 Thermostat Clip (1601408) +$11.38
QTY: 25 Ball Chain Fitting [2 per unit, each sold separately] (1201972) +$15.06
QTY: 26 Ball Chain (1201960) +$12.84
QTY: 26A Jump Ring (1201985) +$11.38
QTY: 27 Primary Air Flap (1306710) +$55.45
QTY: 28 Air Flap Pin (1601551) +$11.38
QTY: 29 Clip (1601396) +$12.26
QTY: 30 Pan Head Bolt (1200983) +$11.18
QTY: 35 Cover Plate (1608955) +$34.49
QTY: 45 Side Brick [2 per unit, each sold separately] (1608953) +$98.48
QTY: 46 Brick Clip (1608956) +$28.62
QTY: 47 Flue Deflector (1401158) +$166.27
QTY: 49 Front Grate ~Old Part # 1308659~ (1308659A) +$137.61
QTY: 50 Left Insert (1308661) +$98.48
QTY: 51 Grate ~Old Part # 1308652~ (1308652A) +$132.02
QTY: 52 Right Insert (1308660) +$102.67
QTY: 53 Ashpan ~Old Part # 1400951~ (1400951K) +$95.68
QTY: 54 Ashpan Front ~Old Part # 1306493~ (1306493A) +$87.29
QTY: 55 Ashpan Handle (30000973) +$90.09
QTY: 56 Damper Tab [2 per unit, each sold separately] (1601488) +$11.18
QTY: 57 Slicer/Poker (5005708) +$62.29
QTY: 59 Griddle ~Old Part # 1306356~ (1306356A) +$158.57
QTY: 60 Right Griddle Quad ~Old Part # 1301832~ (1301832A) +$91.49
QTY: 61 Left Griddle Quad ~Old Part # 1301807~ (1301807A) +$91.49
QTY: 62A Top Classic Black ~Old Part # 1308657~ (1308657A) +$285.52
QTY: 62B Top Green (2318657) +$287.67
QTY: 62C Top Red (SRV2328657) +$695.49
QTY: 63A Right Side Classic Black ~Old Part # 1308655~ (1308655A) +$162.25
QTY: 63B Right Side Green (30003205) +$Call to Order
QTY: 63C Right Side Red (2328655) +$420.84
QTY: 64A Bottom Classic Black ~Old Part # 1306764~ (1306764A) +$269.44
QTY: 64B Bottom Green (2316764) +$379.96
QTY: 64C Bottom Red (SRV2326764) +$708.89
QTY: 65A Left Side Classic Black ~Old Part # 1308656~ (1308656A) +$162.25
QTY: 65B Left Side Green (2318656) +$Call to Order
QTY: 65C Left Side Red (2328656) +$420.84
QTY: 66A Leg Classic Black ~Old Part # 1306333~ (1306333A) +$87.29
QTY: 66B Leg Green (2316333) +$100.00
QTY: 66C Leg Red (SRV2326333) +$218.53
QTY: 67 Tie Rod (1601640) +$48.46
QTY: 68 Leg Hex Bolt (1201432) +$12.84
QTY: 69 Right Air Manifold (1308654) +$90.09
QTY: 70 Left Air Manifold (1308653) +$90.09
QTY: 71 Handle Holder (1600600) +$25.69
QTY: 75A Front Classic Black ~Old Part # 1308647~ (1308647A) +$197.09
QTY: 75B Front Green (2318647) +$485.98
QTY: 75C Front Red (SRV2328647) +$557.50
QTY: 83A Left Door Classic Black ~Old Part # 1308649~ (1308649A) +$280.16
QTY: 83B Left Door Green (2318649) +$189.41
QTY: 83C Left Door Red (SRV2328649) +$341.79
QTY: 84 Left Glass Panel (1401157) +$133.41
QTY: 85A Right Door Classic Black ~Old Part # 1308648~ (1308648A) +$305.61
QTY: 85B Right Door Green (2318648) +$331.24
QTY: 85C Right Door Red (SRV2328648) +$365.90
QTY: 86 Right Glass Panel (1401156) +$133.41
QTY: 90 Handle Bolt (1201294) +$12.18
QTY: 91 White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*
QTY: 91A Black Maple Handle (1600664) +$12.84
QTY: 92 Handle Insert (1600650) +$27.15
QTY: 93 Front Door Handle (5004245) +$73.47
QTY: 94 Griddle Handle ~Old Part #5004022~ (30002775) Handle Assembly +$83.10
QTY: 95 Glass Gasket ~Old Part #s 1203556, 1-00-1203556~ (1-00-1186258229) +$25.69
QTY: 96 Owners Manual [hard copy] [2000970] (OMHC-VC) +$9.99
QTY: 97 Owners Manual [electronic copy] [2000970] (OMEL-VC) +$0.00
|
