Intrepid II (1303)

QTY: 1 Bottom (1306700) *No Longer Available* +$*0.00*

QTY: 2 Right End (1306723) *No Longer Available* +$*0.00*

QTY: 3 Back Classic (1306707) +$537.40

QTY: 4 Fiberglass Gasket [10 ft per package] ~Old Part #s 1203560, 1-00-1203560 (834-1460) +$65.52

QTY: 5 Catalyst [Combustor] (30001153) +$348.64

QTY: 6 Refractory Assembly with Access Panel ~Old Part #s 1602522, 1602527~ (SRV1602527) +$474.00

QTY: 6A Refractory Access Panel Only (1602516) +$85.71

QTY: 7 Lower Fireback (1306704) +$62.98

QTY: 8 Damper Clip ~Old Part # 1306725~ (1306725A) +$59.17

QTY: 8A Damper Clip Hardware Kit (1306725H) +$17.89

QTY: 9 Damper ~Old Part #1306701~ (1306701A) +$85.71

QTY: 9A Damper Assembly ~Old Part #5004609~ (K5004609) +$215.71

QTY: 11 1/4_20 X 5/8 Inches Socket Button Head Screw (1201529) +$11.18

QTY: 12 1/4 Inches Flat Washer (1202475) +$11.18

QTY: 13 1/4 -20 X 1 Inch Knurl Cup Socket Screw(1200436) +$11.18

QTY: 14 1/4_20 Hex Nut (1203210) +$11.18

QTY: 15 Damper Housing ~Old Part #1306702~ (1306702A) +$111.12

QTY: 16 Gasket [15 ft per package] ~Old Part #1203588~ (1-00-1203588) +$55.36

QTY: 17 Damper Tab (1601488) +$11.18

QTY: 18 Upper Fireback ~Old Part #1306703~ (1306703A) +$98.42

QTY: 19 Throat Hood [replaces 1306763] ~Old Part #s 30001649, 1306763~ (1306763A) +$80.63

QTY: 20 Lower Fireback Clamp ~Old Part #1306724~ (1306724A) +$41.52

QTY: 21 Hex Head Cap Screw (1201456) +$11.18

QTY: 22 3/8 Inches Narrow Washer (1202560) +$10.95

QTY: 23 3/8-16 X 1 Inch Welded Stud (1201583) +$11.18

QTY: 24 3/8-16 Acorn Nut (1203130) +$11.18

QTY: 25 Secondary Air Probe Assembly ~Old Part #1601489~ (1601489A) +$130.18

QTY: 26 Phillips Pan Head Screw (1200980) +$11.18

QTY: 27 Secondary Air Flap (1601490) +$28.69

QTY: 28 Secondary Air Linkage (1601486) +$10.95

QTY: 29 Shim Ring (1201986) +$10.95

QTY: 30 Catalyst [Combustor] Access Panel (1306726) *No Longer Available* +$*0.00*

QTY: 31 Hole Plug (1201899) +$10.95

QTY: 32 Left End Classic Black (1306709) +$Call to Order

QTY: 32A Left End Classic Sand (1326709) +$Call to Order

QTY: 33 Front Only Classic Black (1306444) *No Longer Available* +$*0.00*

QTY: 33A-Front Only Sand (1326444) *No Longer Available* +$*0.00*

QTY: 33A Front Only Blue (1336444) *No Longer Available* +$*0.00*

QTY: 33B Front with Doors 305-80 (5004608) *No Longer Available* +$*0.00*

QTY: 33B -Front with Doors Single Glass Blue (5006097) *No Longer Available* +$*0.00*

QTY: 33B -Front with Doors Single Glass Ebony Black (5006103) *No Longer Available* +$*0.00*

QTY: 34 Right Door Single Glass Classic Black (1306765) *No Longer Available* [call for sub] +$Call to Order

QTY: 34A Right Door Single Glass Sand (1326765) *No Longer Available* +$*0.00*

QTY: 34B Right Door Single Glass Ebony Black (1346765) +$Call to Order

QTY: 34C Right Door Single Glass Forest Green 214 (2316765) +$Call to Order

QTY: 35 Left Door Single Glass Classic Black (1306766) [call for sub] +$Call to Order

QTY: 35A Left Door Single Glass Sand (1326766) +$Call to Order

QTY: 35B Left Door Single Glass Forest Green (2316766) +$Call to Order

QTY: 36 Door Hinge Pin (1600535) +$10.95

QTY: 36A Felt Door Pin Washer Enamel Units (1202420) *No Longer Available* +$*0.00*

QTY: 37 Top Classic Black ~Old Part #1308657~ (1308657A) +$325.44

QTY: 37A Top Classic Sand ~Old Part #1328657~ (SRV1328657) *No Longer Available* +$*0.00*

QTY: 37B Top Blue (1338657) +$Call to Order

QTY: 37C Top Forest Green (2318657) *No Longer Available* +$*0.00*

QTY: 38 5/16_94 Griddle Gasket [10ft per package] ~Old Part #1203668~ (1-00-1203668) +$71.74

QTY: 39 Shaker Hole Plug (1600561) +$10.86

QTY: 40 Flue Collar Classic Black ~Old Part # 1306561~ (1306561A) +$248.60

QTY: 40A Flue Collar Old Red (1316561) +$Call to Order

QTY: 40B Flue Collar Sand (1326561) *No Longer Available* +$*0.00*

QTY: 40C Flue Collar Blue (1336561) +$Call to Order

QTY: 40D Flue Collar Ebony Black (1346561) +$Call to Order

QTY: 40E Flue Collar Forest Green (2316561) +$Call to Order

QTY: 41 1/4_20 X 3/4 Inches Phillips Pan Head Screw [2 per unit, each sold separately] (1200901) +$11.18

QTY: 42 Rear Air Tube (1306706) +$45.77

QTY: 43 Right Air Tube (1306713) +$26.75

QTY: 44 Left Air Tube (1306714) +$176.62

QTY: 45 Bottom Grate ~Old Part #s 1306712, 1308652~ (1308652A) +$141.61

QTY: 46 Ash Pan Assembly Complete (5003522) +$227.89

QTY: 46A Handle Ash Pan (30000973) +$95.88

QTY: 46B Front Cover Ash Pan ~Old Part # 1306493~ (1306493A) +$107.31

QTY: 46C Pan Only Ash Pan ~Old Part #1400951~ (1400951K) +$100.96

QTY: 47 Andiron ~Old Part #1306717~ (1306717A) +$61.71

QTY: 48 Tie Rod Set with Nuts [4-1601640/4-1203210] (5007499) +$210.49

QTY: 49 Tie Rod Nut Only [replaces 1203210] (30002229) *No Longer Available* +$*0.00*

QTY: 50 Damper Actuator Rod (1602523) +$64.25

QTY: 51 Griddle ~Old Part #1306356~ (1306356A) +$160.90

QTY: 52 Straight Quadrant [2 per unit, each sold separately] ~Old Part #s 0004444 1300809~ (1300809A) +$66.79

QTY: 53 1/4_20 X 1/2 Inches Hex Head Cap Screw (1201338) +$12.65

QTY: 54 Front Handle Stub with Shaft (5004237) +$75.55

QTY: 55 Pawl Assembly 5004025 (30005157) +$49.14

QTY: 55A-Allen Wrench for Pawl Assembly (1205116) +$11.68

QTY: 56 Set Screw (1200417) +$11.18

QTY: 57 Striker Bolt (1200436) +$11.18

QTY: 58 Large Pawl Jam Nut [fits On Handle Shaft] (1203290) +$11.18

QTY: 59 Damper Handle Stub with Set Screw (5004265) +$73.01

QTY: 60 Set Screw (1200563) +$11.18

QTY: 61 Glass Gasket [10ft per package] ~Old Part #s 1203556, 1203556A, 1-00-1203556~ (1-00-1186258229) +$32.69

QTY: 62 Glass One Piece Not IR Coated (1401152) +$84.66

QTY: 63 Glass Gasket with Wire [SUB 2 of 1203668] (5002801) +$60.42

QTY: 64 Stepped Glass Clip [1 per Door] ~Old Part #s 1601393, 1601393K~ (1601393) +$50.41

QTY: 65 5/16 Gasket [15 ft per package] ~Old Part #s 1203591, 1-00-1203591~ (1-00-1203588) +$55.36

QTY: 66 Glass Clip [4 per unit, each sold separately] (1601396) *No Longer Available* +$*0.00*

QTY: 66A-Clip Screw [4 per unit, each sold separately] (1200980) +$11.18

QTY: 67 Right Door Deflector (1306719) *No Longer Available* +$*0.00*

QTY: 68 Short Glass Clip Flat (1601394) +$12.26

QTY: 68A Clip Screw [each sold separately] (1200980) +$11.18

QTY: 69 10-24 X 5/8 Inches Phillips Pan Head Machine Screw (1200986) +$10.95

QTY: 70 Right Air Guide (1601497) *No Longer Available* +$*0.00*

QTY: 71 10-24 X 3/4 Inches Phillips Pan Head Machine Screw (1200991) +$10.95

QTY: 72 Left Door Deflector (1306718) +$42.92

QTY: 73 Left Air Guide (1601496) *No Longer Available* +$*0.00*

QTY: 74 Thermostat Cover Classic Black ~Old Part # 1306711~ (1306711A) +$116.20

QTY: 74A Thermostat Cover Sand (1326711) +$Call to Order

QTY: 74B Thermostat Cover Blue (1336711) +$Call to Order

QTY: 74C Thermostat Cover Forest Green (2316711) +$Call to Order

QTY: 75 Tension Spring (1201846) +$11.18

QTY: 76 10 Flat Washer (1202423) +$10.95

QTY: 77 Thermostat Assembly with Handle (5005506) +$104.77

QTY: 78 Jump Ring (1201985) +$10.95

QTY: 79 Ball Chain Fitting [connector from chain to Split ring] (1201972) +$10.95

QTY: 80 Ball Chain (1201960) +$11.68

QTY: 80A Eyelet Thermostat (1201864) +$10.95

QTY: 81 1/4_20 X 2 Inches Phillips Pan Head Screw (1200995) +$11.18

QTY: 82 Primary Air Flap [not Available in enamel colors] (1306710) +$61.71

QTY: 82A Air Flap Assembly [82 79 83 66 84] (0005896) *No Longer Available* +$*0.00*

QTY: 83 Primary Air Flap Pin 1/8 Inches X 1 1/2 Inches (1601551) +$10.95

QTY: 84 10-24 X 3/8 Inches Phillips Pan Head Screw (1200983) +$10.95

QTY: 86 Secondary Air Cover ~Old Part #1306762~ (1306762A) +$112.39

QTY: 87 Slicer/Poker (5005708) +$56.63

QTY: 88 10-24 X 1/2 Inches Phillips Truss Head Screw (1200998) +$11.18

QTY: 89 3/8-16 X 1 Inch Hex Head Cap Screw Leg Bolt (1201432) +$11.68

QTY: 90 Handle Holder (1600600) +$26.02

QTY: 91 3/8 Inches Washer (1202488) +$11.18

QTY: 92 White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 92A-Black Wood Handle [includes: Black Handle, Screw & Nickel Nub] (30004175K) +$78.09

QTY: 92B Maple Wood Black Handle (1600664) +$11.68

QTY: 93 1/4_20 X 3 3/8 Inches Slot Oval Head Handle Screw (1201294) +$12.18

QTY: 94 Nub for Ceramic Handle Assembly (1600650) +$27.35

QTY: 95 Leg [4 per unit, each sold separately] ~Old Part #1306333~ (1306333A) +$108.58

QTY: 95A Leg [4 per unit, each sold separately] Sand ~Old Part #1326333~ (SRV1326333) *No Longer Available* +$*0.00*

QTY: 95B Leg [4 per unit, each sold separately] Blue (1336333) +$Call to Order

QTY: 95C Leg [4 per unit, each sold separately] Forest Green (2316333) +$100.00

QTY: 96 Rear Heat Shield [includes Hardware Kit] (0000172) +$350.95

QTY: 97-Heat Shield Hardware [Rear or Bottom] (0005834) +$80.63

QTY: 98 Gasket Kit Intrepid [includes: Damper, Left Door, Right Door, Griddle, Damper Housing, Thermostat, Cover, Glass, Flue Collar Gaskets Directions and Gasket Adhesive] (0003440) +$130.18

QTY: 99 Damper, Left Door, Right Door, CAT Access Panel, Fiberglass Rope Gasket [15 ft per package] (1-00-1203588) +$55.36

QTY: 100 Griddle Gasket Wire with Fiberglass Core [10 ft per package] (1-00-1203668) +$71.74

QTY: 101 Damper Housing, Back Fiberglass Rope Gasket Black [10ft per package] ~Old Part # 1-00-1203560~ (834-1460) +$65.52

QTY: 102 Glass Fiberglass Rope Gasket E27905Black [10ft per package]~Old Part #1-00-1203556~ (1-00-1186258229) +$32.69

QTY: 103 Gasket with Wire [Gasket between Glass] [2 per unit, each sold separately] (5002801) +$60.42

QTY: 104 Flue Collar Gasket [15 ft per package] ~Old Part #1-00-1203591~ (1-00-1203588) +$55.36

QTY: 105 Stove Gasket Cement Black (77) +$11.18

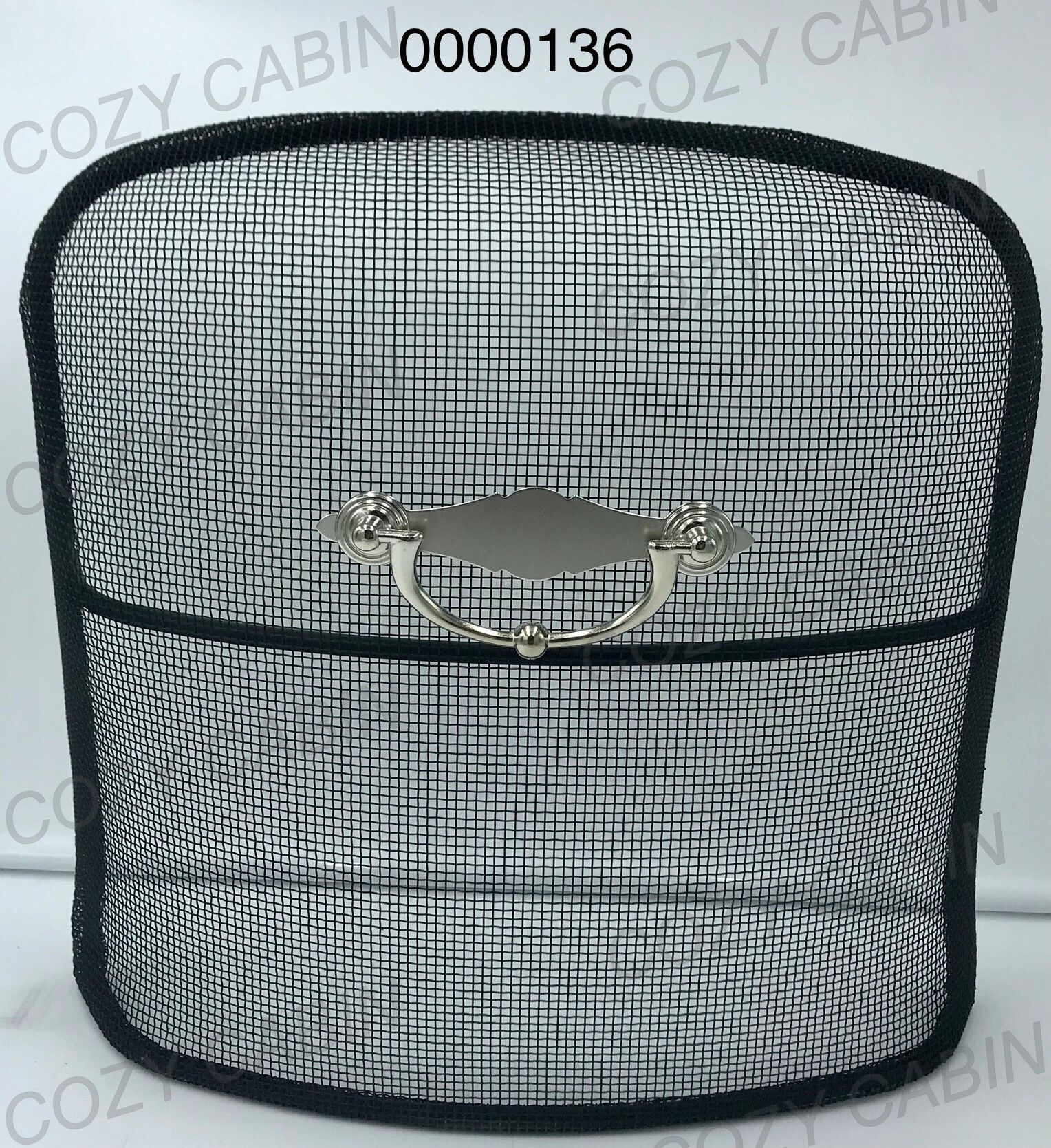

QTY: 106 Spark Screen (0000136) +$202.31
