Main : Wood Burning : Wood Stove Parts
Resolute III (0042-0043-0058) #0042-0043-0058

Resolute III (0042-0043-0058)

Item#: 0042-0043-0058

Price: $0.00


Order Now


Customer ratings: This item has never been rated.
Rate this   Buy this

Includes Models: 0042 with Glass Panels, 0043 without Glass Panels

Manufactured Between 6/29/83 - 6/14/88

In 1985 double glass with frames were added [some models have stainless steel frames, others use clips to hold the glass]

Item Description (Part Number)

QTY: 1 Bottom (1301522) +$Call to Order

QTY: 2 Back (1301683) +$Call to Order

QTY: 3 Left End (1301546) +$Call to Order

QTY: 4 Right End (1301554) +$Call to Order

QTY: 5 Front (1301492) +$Call to Order

QTY: 6 Solid Ash Fettle (1301538) +$198.87

QTY: 6A Ash Fettle with Air Chamber (5002808) *No Longer Available* [can sub 1301538] +$*0.00*

QTY: 7 Baffle (1301589) +$198.23

QTY: 8 Right Insert ~Old Part #1301384~ (1301384A) +$230.58

QTY: 9 Left Insert Pre Dec. '85 [Oval cutout] ~Old Part #1301376~ (1301376A) +$197.09

QTY: 9A Left Insert Post Dec. '85 [no oval cutout] (1301784) *No Longer Available* +$*0.00*

QTY: 10 Upper Fireback Only (1301349) *No Longer Available* +$*0.00*

QTY: 10A Upper Fireback/Damper Assembly ~Old Part # 0005863~ (0005864) *No Longer Available* +$*0.00*

QTY: 11 Original Lower Fireback (NLA) *No Longer Available* +$*0.00*

QTY: 11A Lower Fireback [note difference of Top in photo] (1301356) *No Longer Available* +$*0.00*

QTY: 12 Damper (1301600) +$113.60

QTY: 12A Damper Screw [each sold separately] (1201481) +$13.01

QTY: 13 Adjustable Damper Linkage (0005866) *No Longer Available* +$*0.00*

QTY: 14 Top (1301663) +$Call to Order

QTY: 15 Flue Collar Extension (1301670) *No Longer Available* +$*0.00*

QTY: 16A Flue Collar [2 holes] (1301668A) +$349.98

QTY: 16B Flue Collar [4 holes] (1301668B) *No Longer Available* +$*0.00*

QTY: 17 Thermostat Cover (1301449) +$Call to Order

QTY: 18 Left Door (1301606) *No Longer Available* +$*0.00*

QTY: 19 Right Door (1301615) *No Longer Available* +$*0.00*

QTY: 20 Griddle Quadrant [2 per unit, each sold separately] ~Old Part #s 0004444 1300809~ (1300809A) +$82.36

QTY: 21 Griddle Only (1301674) *No Longer Available* +$*0.00*

QTY: 22 Leg [4 per unit, each sold separately] ~Old Part #1301503, 1301833~ (1301833A) +$108.99

QTY: 22A Legs [set of 4] (5002033) +$Call to Order

QTY: 22B Short Leg [4 per unit, each sold separately] (1300663A) +$127.21

QTY: 23 Fireback Nut 1/4_20 Acorn Nut (1203118) +$14.34

QTY: 24 Secondary Air Control Cover ~Old Part #1300671~ (1300671A) +$117.40

QTY: 26 1/4 Phillips Flat Head Screw (1200811) +$11.18

QTY: 27 Leg Bolt [set of 4] (0005807) +$31.25

QTY: 28 Tie Rod Only (1601640) +$46.60

QTY: 28A Tie Rod [set of 4 with Nuts] (5007499) +$210.49

QTY: 28B Tie Rod Nut [each sold separately] (1203210) +$11.18

QTY: 29 Thermostat ~Old Part #0004333~ (5005499) +$98.48

QTY: 29A Thermostat Cover Screw [each sold separately] (1201010) +$10.86

QTY: 29B Eyelet Thermostat (1201864) +$10.95

QTY: 29C Ball Chain (1201960) +$11.68

QTY: 29D Fitting Ball Chain [connector from chain to Split ring] (1201972) +$10.95

QTY: 31A Flat Washer (1202423) +$10.95

QTY: 31B 12_24 Hex Jam Nut~Old Part #1203157~ (1203290) +$11.18

QTY: 32 1/4_20X1/2 Hex Head Cap Screw (1201338) +$12.65

QTY: 33 1/4_20 X 3/4 Hex Cap Screw ~Old Part #1200521~ (1200881) +$11.18

QTY: 34 Damper Handle (1600820) *No Longer Available* +$*0.00*

QTY: 35 1/2_20 X 3/8 Snake Screw (1200055) *No Longer Available* +$*0.00*

QTY: 36 Striker Bolt-Only (1200436) +$11.18

QTY: 37 Pawl Assembly [includes pawl, set screw, striker bolt, striker bolt nut] [jam nut sold separately] (5004024) +$11.68

QTY: 38 3/8_16 Large Pawl Jam Nut for Shaft (1203290) +$11.18

QTY: 39 White Ceramic Handle with Screw & Insert (0004342) *No Longer Available* [can sub black handle 30004175K] +$*0.00*

QTY: 39 Black Wood Handle [includes: Black Handle, Screw & Nickel Nub] (30004175K) +$83.56

QTY: 39A Fallaway Handle Screw Only (1201294) +$12.18

QTY: 39B White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 39C Chrome Nub (1600650) +$27.35

QTY: 39D Maple Wood Black Handle (1600664) +$11.68

QTY: 40 Chrome Front Handle Stub with Shaft (5004237) +$75.55

QTY: 40A Front Door Handle Assembly [includes: Black Fallaway Handle, Faucets Stub with Shaft, Pawl Assembly & Jam Nut] (0004237) +$221.47

QTY: 41 Door Pin (1600546) +$10.95

QTY: 43 Paw Set Screw Only (1200417) +$11.18

QTY: 44 1/4_20 Hex Head Striker Bolt Nut (1203210) +$11.18

QTY: 45 Tension Spring (1201846) +$11.18

QTY: 46 1/4_20 X 1_ (NLA) *No Longer Available* +$*0.00*

QTY: 47 1/4_20 Flue Collar Plate (1203105) +$10.95

QTY: 48 Thermostat Flap with Eyelet (5005423) +$42.59

QTY: 49 Flap Pin (1601567) +$14.19

QTY: Flat Phillips Head Screw [each sold separately] (1200865) +$14.34

QTY: 51 5/16_18 Damper Nut Plate (1201860) *No Longer Available* +$*0.00*

QTY: 52 Bolt-On Andirons (0000051) +$164.00

QTY: 53 6 Inch Oval to 6 Inch Round 24 Gauge Black Pipe ~Old Part #WM-6x6-610~ (BM0037) +$46.46

QTY: 54 Rear Heat Shield [Hardware sold separately] (1402108) +$189.19

QTY: 54A Rear Heat Shield Hardware (5007110) +$179.17

QTY: 55 Bottom Heat Shield [Hardware sold separately] (1402299) +$158.34

QTY: 56-Heat Shield Hardware [Bottom] (0005834) +$101.99

QTY: 57 Front Panel Classic Black (0005802) +$127.21

QTY: 58 Glass [2 per unit, each sold separately] (1401152) +$84.66

QTY: 58A Glass Gasket [10ft per package] ~Old Part #s 1203556, 1203556A, 1-00-1203556~ (1-00-1186258229) +$34.99

QTY: 59 Glass Clip Screw [4 per door, each sold separately] (1200983) +$10.95

QTY: 60 Glass Clip [4 per unit, each sold separately] for Double Glass Models Only (1601395) +$11.18

QTY: 60A Door Glass Clip [each sold separately] for Single Glass Models Only ~Old Part #s 1601393, 1601393K~ (1601393) +$50.41

QTY: 61 Resolute Screen (0000140) +$156.28

QTY: 62 Stove Gasket Kit Defiant/Vigilant/Resolute/Intrepid [includes: Damper, Left Door, Right Door, Griddle, Damper Housing, Thermostat, Cover, Glass, Flue Collar Gaskets Directions and Gasket Adhesive] (0003440) +$142.50

QTY: 63 Left Double Glass Holder (1601401) +$Call to Order

QTY: 64 Right Double Glass Holder (1601402) +$Call to Order

QTY: 65 Fireback [includes Upper and Lower Damper Hardware Kit] (0005864) *No Longer Available* +$*0.00*

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 66 Door Handle Holder (1600600) +$26.02

QTY: 67 1/8 Allen Wrench (1205116) +$11.68

QTY: 68 5/32 Allen Wrench (1205147) +$13.01

QTY: 69 Felt Door Pin Washer [Enamel Stoves] (1202420) *No Longer Available* +$*0.00*

QTY: 70 Left & Right Door Cast Insert (1301623) +$Call to Order

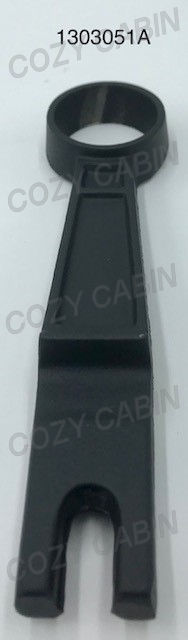

QTY: 71 Drop-In Andiron [2 per unit, each sold separately] ~Old Part #1303051~ (1303051A) +$47.87

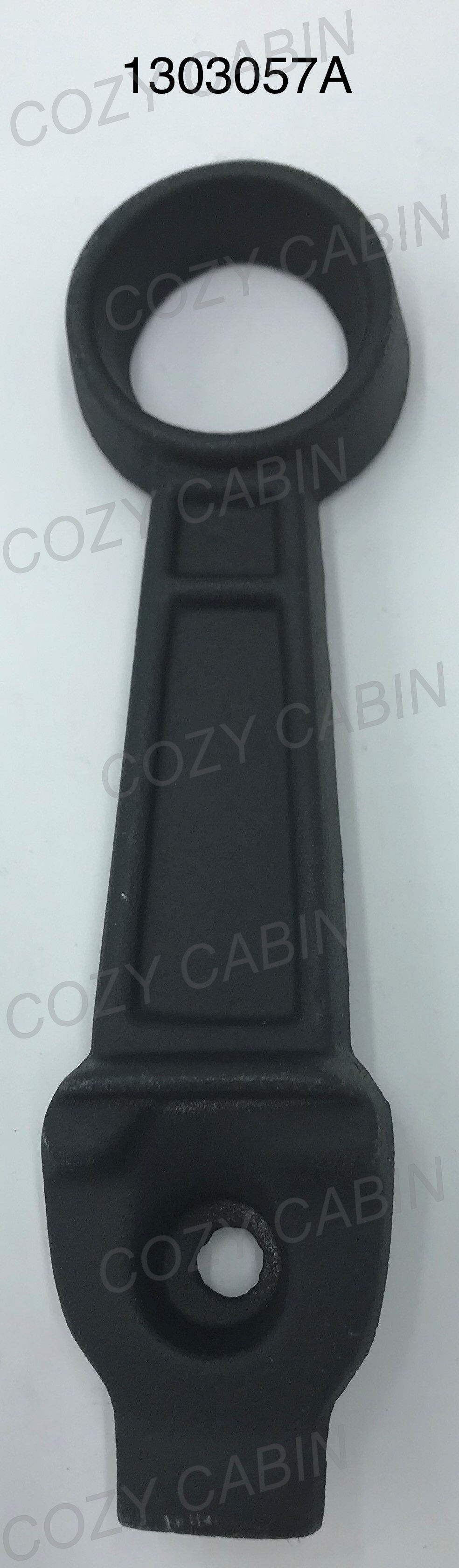

QTY: 72 Left Bolt-On Andiron for Solid Ash Fettle [hardware kit sold separately 1303057H] ~Old Part #1303057~ (1303057A) +$62.66

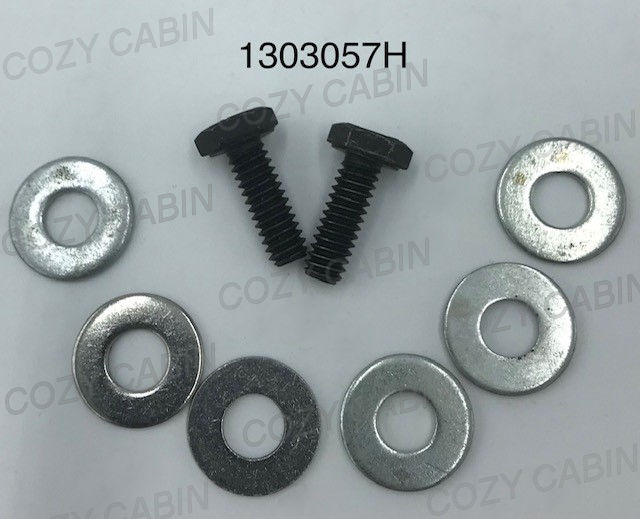

QTY: 73 Andiron Hardware Kit (1303057H) +$22.82

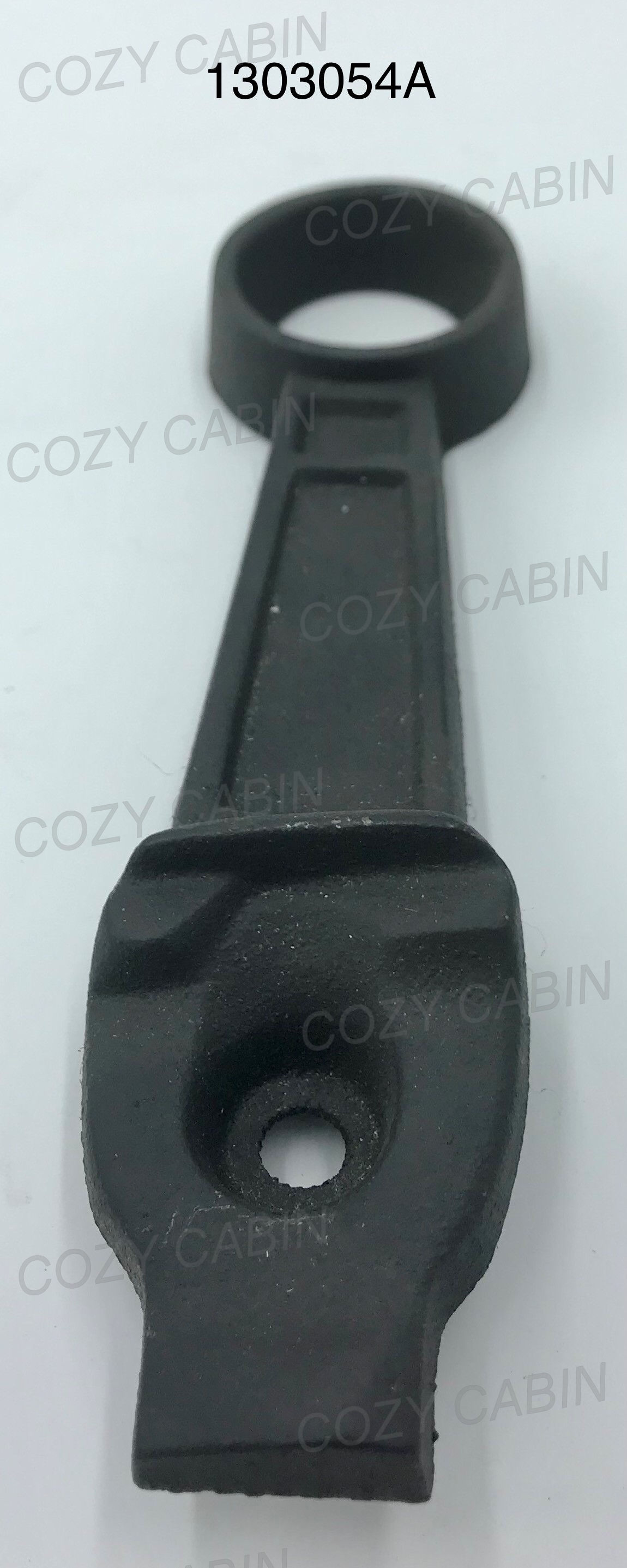

QTY: 74 Right Bolt-On Andiron ~Old Part #1303054~ (1303054A) +$66.48

QTY: 75 Half Throat (1301750) +$208.17
