Defiant Encore (0028-2140) #0028-2140

Defiant Encore (0028-2140)

Item#: 0028-2140

Price: $0.00


Order Now

Item Description (Part Number)

QTY: 1-Bottom (1307410) *No Longer Available* +$*0.00*

QTY: 2-Primary Air Frame Only (1307411) +$59.19

QTY: 3-Primary Air Valve Only (1307412) +$82.19

QTY: 4-Primary Air Rod Only (1601493) +$51.23

QTY: 5-Socket Set SC Cable Adjustable [REP 1200645] (30001794) +$10.86

QTY: 10-Ashdoor Handle Shaft Only (1600622) +$53.96

QTY: 10A-Ashdoor Wood Handle Only (1600663) +$13.91

QTY: 11-Pawl Assembly 5004025 (30005157) +$52.60

QTY: 11AA-Allen Wrench for Pawl Assembly (1205116) +$13.91

QTY: 11A-Large Jam Nut for Pawl Assembly (1203290) +$11.18

QTY: 12-Ashdoor Hinge Pin (1203004) +$13.28

QTY: 12A-Cotter Pin (1203031) +$11.18

QTY: 13-Ash Pan Bracket (1601039) +$127.32

QTY: 14-Ashlip Sand (1327406) *No Longer Available* +$*0.00*

QTY: 14A-Ashlip Midnight Black [Ebony] (1347406) *No Longer Available* +$*0.00*

QTY: 14B-Ashlip Forest Green (2317406) *No Longer Available* +$*0.00*

QTY: 15-Leg Classic Black ~Old Part #1307427~ (1307427A) +$106.81

QTY: 15A-Leg Sand ~Old Part # 1327427~ (SRV1327427) +$254.76

QTY: 15B-Leg Blue (1337427) *No Longer Available* +$*0.00*

QTY: 15C-Leg Midnight Black [Ebony] (1347427) +$72.20

QTY: 15D-Leg Forest Green (2317427) +$73.82

QTY: 15E-Leg Majolica Brown (SRV30004863) +$294.90

QTY: 15F-Leg Bordeaux ~Old Part # 2327427~ (SRV2327427) +$323.44

QTY: 16-Handle Bracket (1600600) +$27.81

QTY: 17-Primary Air Cable (5005471) +$41.66

QTY: 18-Primary Air Cover Plate [REP 1307418] (1308609) +$119.11

QTY: 19 Front Classic Black (1308612) *No Longer Available* +$*0.00*

QTY: 19A Front Sand (1328612) *No Longer Available* +$*0.00*

QTY: 19B Front Forest Green (2318612) *No Longer Available* +$*0.00*

QTY: 20 Left Door Only Classic Black [hinge and hinge strip sold separately] ~Old Part #s 1308613~ (1308613A) +$97.08

QTY: 20A Lower Door Hinge Pin [2 per unit, each sold separately] (30002727) +$11.03

QTY: 20B Door Hinge Strip ~Old Part #1308634~ (1308634A) +$66.03

QTY: 20C Left Door Only Sand (1328613) *No Longer Available* +$*0.00*

QTY: 20D Left Door Only Blue (1338613) *No Longer Available* +$*0.00*

QTY: 21-Glass Clip [4 per unit, each sold separately] (1601396) *No Longer Available* +$*0.00*

QTY: 21A-Clip Screw [4 per unit, each sold separately] (1200980) +$11.18

QTY: 22-Door Hinge Plate (1307402) *No Longer Available* +$*0.00*

QTY: 23-Upper Door Hinge Pin (1600416) +$12.47

QTY: 24-Lower Door Hinge Pin ~Old Part #1600417~ (30002727) +$11.03

QTY: 25-Jump Ring (1201985) +$11.03

QTY: 26 Left Door Air Manifold (1307403) +$60.56

QTY: 26A Left Door Air Manifold Screw [each sold separately] (1200991) +$10.95

QTY: 27-Right Door Only Classic Black ~Old Part #1308614~ [hinge and hinge strip sold separately] ~Old Part #1308614~ (1308614A) +$198.43

QTY: 27A Right Door Only Sand (1328614) *No Longer Available* +$*0.00*

QTY: 27B Right Door Only Blue (1338614) *No Longer Available* +$*0.00*

QTY: 28-Glass Clip Short .62 Inches (1601394) +$12.26

QTY: 28A-Clip Screw [each sold separately] (1200980) +$11.18

QTY: 29-Right Door Manifold (1307404) +$63.29

QTY: 29A Right Door Air Manifold Screw [each sold separately] (1200991) +$10.95

QTY: 30-Handle Stub (30001759) +$113.66

QTY: 30A-Socket for Handle (1200334) +$10.95

QTY: 31-Front Air Manifold (1307424) *No Longer Available* +$*0.00*

QTY: 32 Left End Classic Black (1308616) *No Longer Available* +$*0.00*

QTY: 32A Left End Sand (1328616) *No Longer Available* +$*0.00*

QTY: 32B Left End Forest Green (2318616) *No Longer Available* +$*0.00*

QTY: 33 Right End Classic Black ~Old Part #1308619~ (1308619A) +$294.90

QTY: 33A Right End Sand (1328619) *No Longer Available* +$*0.00*

QTY: 33B Right End Blue (1338619) *No Longer Available* +$*0.00*

QTY: 33C Right End Forest Green (2318619) *No Longer Available* +$*0.00*

QTY: 34-Top Classic Black (1307405) *No Longer Available* +$*0.00*

QTY: 34A-Top Red (1317405) *No Longer Available* +$*0.00*

QTY: 34B-Top Sand (1327405) *No Longer Available* +$*0.00*

QTY: 34C-Top Blue (1337405) *No Longer Available* +$*0.00*

QTY: 34D-Top Midnight Black (1347405) *No Longer Available* +$*0.00*

QTY: 35 Back Classic Black (1308620) +$376.94

QTY: 35A Back Sand (1328620) *No Longer Available* +$*0.00*

QTY: 35B Back Blue (1338620) *No Longer Available* +$*0.00*

QTY: 35C Back Midnight Black [Ebony] (1348620) *No Longer Available* +$*0.00*

QTY: 35D Back Forest Green (2318620) *No Longer Available* +$*0.00*

QTY: 36-Flue Collar Classic Black ~Old Part # 1304280~ (0000555) +$259.23

QTY: 36A-Flue Collar Red (2324280) +$371.28

QTY: 36B-Flue Collar Sand ~Old Part #1324280~ (SRV1324280) *No Longer Available* +$*0.00*

QTY: 36C-Flue Collar Blue (1334280) *No Longer Available* +$*0.00*

QTY: 36D-Flue Collar Midnight Black [Ebony] (1344280) *No Longer Available* +$*0.00*

QTY: 36E-Flue Collar Forest Green (2314280) *No Longer Available* +$*0.00*

QTY: 37 Left Air/Wear Plate Add (1307413) +$151.41

QTY: 39-Left Deflector (1608629) +$136.89

QTY: 40-Right Deflector (1608630) +$136.89

QTY: 41-Refractory Box with Access Panel (5004600) +$504.00

QTY: 42-Access Panel Only ~Old Part #1602503~ (1602503A) *No Longer Available* [can sub Refractory Box with Access Panel 5004600] +$*0.00*

QTY: 43-Ceramic Catalyst [Combustor] Block (30001152) +$452.43

QTY: 43A-Metal Ceramic Catalyst [Combustor] Block ~Old Part # 30004588~ (30001152) +$452.43

QTY: 44-Heat Exchanger (1602506) +$261.40

QTY: 45-Refractory Cover [Stainless Steel piece On Top] (1602507) +$59.47

QTY: 46-Lower Fireback ~Old Part # 1307416~ (1307416A) *No Longer Available* [can sub Fireback Kit] +$*0.00*

QTY: 46A-Lower Fireback Hardware Kit (1307416H) +$20.84

QTY: 46B Fireback Kit [includes Parts # 41 44 46 47A 63 83 & Hardware] (0005925) *No Longer Available* +$*0.00*

QTY: 47-Upper Fireback Only ~Old Part #1307417~ (1307417A) *No Longer Available* [can sub Fireback Kit] +$*0.00*

QTY: 47A-Upper Fireback Assembly [47 to 51] (5000335) +$518.64

QTY: 48-Damper Only (1307421) +$143.29

QTY: 49-Damper Tab (1601488) +$11.18

QTY: 50-Torsion Bar [Damper Rod] Clip (1601036) +$40.25

QTY: 51-Torsion Bar [Damper Rod] (1601035) +$137.22

QTY: 52-Damper Actuator Linkage (1601034) +$19.85

QTY: 53-Damper Actuator Rod (1601033) +$103.47

QTY: 54-Thermostat (5005470) +$102.70

QTY: 55-Thermostat Eyelet Only (1201985) +$11.03

QTY: 56-Friction Spring (1201846) +$11.18

QTY: 57-Thermostat Access Cup (1307415) *No Longer Available* +$*0.00*

QTY: 58-Damper Handle Stub Nickel with Set Screw (5004265) +$83.56

QTY: 58A-Damper Handle Allen Key (1205147) +$15.34

QTY: 60-Bottom Grate ~Old Part #1307434~ (1307434A) +$161.88

QTY: 61-Thermostat Handle Stub with Set Screw ~Old Part # 5004264~ (30002716) +$49.86

QTY: 61A-Thermostat Wooden Handle Only (1600660) +$12.47

QTY: 61B-Thermostat Long Screw Only (1201243) +$10.95

QTY: 63-Secondary Air Probe ~Old Part #1601489~ (1601489A) +$139.62

QTY: 64-Secondary Air Flap (1601490) +$34.99

QTY: 65-Secondary Air Shim Ring (1201986) +$11.03

QTY: 66-Secondary Air Link (1601486) +$11.03

QTY: 67-Secondary Air Cover Plate (1601492) +$59.17

QTY: 68-Glass (1401115) +$147.50

QTY: 68A-Glass Gasket [10 ft per package] ~Old Part #s 1203556, 1203556A, 1-00-1203556~ (1-00-1186258229) +$34.99

QTY: 69A-Interam Formed Gasket [9 inch under the Glass] (1203537) +$15.18

QTY: 69B-Glass Gasket with Wire (5002798) +$58.53

QTY: 70-Andiron ~Old Part #1307419~ (1307419A) +$108.17

QTY: 71-Griddle [no Quads] ~Old Part #1300797~ (1300797A) +$226.80

QTY: 72-Griddle Quad Straight [2 per unit, each sold separately] ~Old Part #s 0004444 1300809~ (1300809A) +$80.83

QTY: 73-Ash Pan Only (1601025) +$149.19

QTY: 74-Ash Pan Cover with Handle (1601027) +$116.38

QTY: 74A-Ash Pan & Cover [73 & 74] (5005746) +$179.35

QTY: 75-Griddle Handle Complete ~Old Part # 5004022~ (30002775) +$102.70

QTY: 75A-Griddle Handle Stub Only (1600658) *No Longer Available* +$*0.00*

QTY: 75B-Griddle Handle Wood Knob Only (1600661) +$12.47

QTY: 75C-Griddle Handle Bushing Only (1201900) +$11.18

QTY: 75D-Griddle Handle Wood Handle Screw (1201308) +$11.18

QTY: 75E-Griddle Handle Wood Handle Nut Only (1203210) +$11.18

QTY: 76-White Ceramic Handle with Screw & Insert (0004342) *No Longer Available* [can sub black handle 30004175K] +$*0.00*

QTY: 76A-Black Wood Handle [includes: Black Handle, Screw & Nickel Nub] (30004175K) +$83.56

QTY: 77 White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 77A Maple Wood Black Handle [Wood Part Only] (1600664) +$12.47

QTY: 78-Ceramic Handle Chrome Nub Only (1600650) +$32.12

QTY: 79-Ceramic Handle Screw Only (1201294) +$12.18

QTY: 80-Black Maple Damper Handle [Wood Part Only] (1600664) +$12.47

QTY: 81-Flat Washer (1202471) +$10.95

QTY: 82-Narrow Flat Washer (1202560) +$10.95

QTY: 83-Kawool (1206115) +$11.68

QTY: 84-Damper Handle Screw Only (1201310) +$15.06

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 86 Rear Heat Shield (0000173) +$290.64

QTY: 87 Bottom Heat Shield (0000164) +$406.64

QTY: 88 Ash Pan Door (1402252) +$166.99

QTY: 89 Heatshield Spacer [2 per unit, each sold separately] (1201781) +$13.01

QTY: 90 Heat Shield Hardware [Rear or Bottom] (0005834) +$99.97

QTY: 91 Outside Air Adapter [this part bolts onto the stove will also need other components] (0003257) *No Longer Available* +$*0.00*

QTY: 91A Outside Air Flexible 3 Inch Liner [sold per foot] (FLEX301) +$10.59

QTY: 91B Outside Air Trim Plate (3VP-TP) +$69.62

QTY: 91C Outside Air Termination Cap (1-10-09542) +$151.89

QTY: 91D High Strength Clear Silicone (SIL500) +$32.82

QTY: 92 Outside Air Termination Kit (0003265) *No Longer Available* +$*0.00*

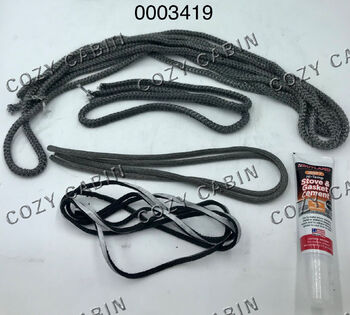

QTY: 93 Stove Gasket Kit [includes: Door, Damper, Flue Collar, Cat Access, Griddle, Ashpan Door and Glass Gaskets and Gasket Cement] (0003419) +$151.89

STOVE PIPE

Item Description (Part Number)

QTY: 94 8 Inch Oval to 8 Inch Round Low Profile Stove Adapter (0001836) +$176.86

QTY: 95 8 Inch Oval to 6 Inch Round Adapter Black (0001860) +$135.52

QTY: 96 8 Inch Oval to 8 Inch Round Standard Adapter Black (0001855) +$89.25

QTY: 97 8 Inch Oval to 8 Inch Round Offset Stove Adapter Black (0001841) +$176.86

QTY: 98 8 Inch Oval to 8 Inch Round Elbow Adapter Black (0001846) +$185.60

Accessories

Item Description (Part Number)

QTY: 99 Sparkscreen ~Old Part #0000127A~ (0000127) +$258.01

QTY: 100 Vermont Castings Leather Stove Gloves (0000112) +$58.80

QTY: 101 Stove Surface Thermometer (0000574) +$94.50

QTY: 102 Woodbox Cast Iron (0000930) +$712.95

QTY: 103 Child Guard Fence 3 Sided (0000975) +$229.95

QTY: 104 Trivet with Handle (0000094) +$79.80

QTY: 105 Cast Iron Steamer Twilight (0000794) +$324.45

QTY: 106 Cast Iron Steamer Bordeaux Enamel (0000793) +$429.45

QTY: 107 Cast Iron Steamer Majolica Brown Enamel (0000791) +$429.45

QTY: 108 Cast Iron Steamer Ebony Black Enamel (0000784) *No Longer Available* +$*0.00*

QTY: 109 Cast Iron Steamer Biscuit Enamel (0000775) *No Longer Available* +$*0.00*
QTY:
