Jefferson Direct Vent Gas Stove (2820) #0002820-22-23-25-27-28

Jefferson Direct Vent Gas Stove (2820)


Item# 0002820-22-23-25-27-28     Price: $0.00

Includes Models: 2820-2822-2823-2825-2827-2828

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1- GAS LOG SET (20002182) *No Longer Available* +$ *0.00*

QTY: 1A- LOG BACK (20002183) *No longer available* +$*0.00*

QTY: 1B- LOG LEFT UPPER (20002187) *No longer available* +$ *0.00*

QTY: 1C- LOG RIGHT UPPER (20002186) *No longer available* +$*0.00*

QTY: 1D- LOG LEFT (20002185) *No longer available* +$*0.00*

QTY: 1E- LOG RIGHT (20002184) *No longer available* +$*0.00*

QTY: 2- GRILLE (30000685) +$48.47

QTY: 3- SCREEN GRILLE (30000665) +$94.13

QTY: 4- FURNACE CEMENT (1206122) +$15.02

QTY: 5- MANIFOLD ASSEMBLY (20003739) +$166.39

QTY: 6- LAVA ROCKS BURNER ~Old Part # 57897~ (57897K) +$34.32

QTY: 7- GASKET GLASS MED- [10 FEET] (1203702K) +$17.86

QTY: 8- GLASS (20002120) +$383.80

QTY: 9- GLASS FRAME ASSEMBLY (20002117) +$287.63

QTY: 10A-VALVE HONEYWELL VC 8420E 2038 NATURAL GAS ~OLD PART#10001782~ RN 275 HONEYWELL VALVE TO SIT RETROFIT VALVE (20010811) +$278.93

QTY: 10B-HONEYWELL TO SIT GAS VALVE CONVERSION KIT - PROPANE GAS [KIT INCLUDES: VALVE, VALVE BRACKET, PIEZO, PIEZO BRACKET & HARDWARE] ~Old Part #10001759~ (20010680) +$319.86

QTY: 11A- 3-way Top Convertible Pilot Assembly - NG-SIT [Includes: thermopile, thermocouple, pilot, pilot tube & electrode with wire] (10002264) *No longer available* +$ *0.00*

QTY: 11A- PILOT ASSEMBLY 3-way PROPANE GAS [SIT] ~Old part #10002265~ (SRV10002265) +$138.02

QTY: 11B-PILOT ASSEMBLY PSE [HONEYWELL] N.G. ~Old part #20001115~ (20001115A) +$235.45

QTY: 11B-PILOT ASSEMBLY PSE [HONEYWELL] L.P. GAS ~Old part #20001116~ (20001116A) +$249.52

QTY: 12- THERMOCOUPLE 24_94 ~Old Part #s 7531137, 24D0808~ (SRV24D0808) +$43.59

QTY: 13- ELECTRODE IGNITOR WITH CABLE SIT24 (10001297) +$28.72

QTY: 14- PILOT TOP CONVERTIBLE (10002266) *No longer available* [Can sub SRV10002264-NG or SRV10002265-LP] +$ *0.00*

QTY: 15- THERMOPILE 18_94 RS ~Old part #7533113, 26D0566~ (SRV26D0566) +$115.34

QTY: 16- NUT ELECTRODE SIT [Sensing Electrode Nut Only] (57886) +$13.28

QTY: 17- TUBING PILOT WITH FITTINGS 1/8 X 24_94 ~Old Part # 10001296~ (26D0665) +$34.40

QTY: 18 BURNER HOUSING ASSEMBLY NG/LP ~Old part #20002214~ (20002214K) +$197.08

QTY: 19- GRATE BURNER (20002167) +$12.26

QTY: 20- WIRING HARNESS (10002582) +$28.72

QTY: 21- SWITCH ON/OFF RN/RP MODELS (30000874) +$10.86

QTY: 22- FRONT CLASSIC BLACK (30000683) +$127.31

QTY: 22A- FRONT MIDNIGHT (30000721) *No longer available* +$*0.00*

QTY: 22B- FRONT GREEN (30000727) *No longer available* +$*0.00*

QTY: 23- DOOR CONTROL (30000686) *No longer available* +$ *0.00*

QTY: 24A- ORIFICE HOOD #69 FRONT PROPANE (30000513) +$41.98

QTY: 24B- ORIFICE HOOD #54 FRONT NATURAL GAS (20000130) +$41.98

QTY: 24C- ORIFICE HOOD #54 REAR PROPANE (20000130) +$41.98

QTY: 24D- ORIFICE HOOD #44 REAR NATURAL GAS ~Old Part # 30000334~ (SRV30000334) +$47.97

QTY: 25- BRACKET RIGHT LOG (20002166) +$32.92

QTY: 26- BRACKET LEFT LOG (20002165) +$40.92

QTY: 27- FRONT HANDLE ASSEMBLY (5004240) *No longer available* +$ *0.00*

QTY: 28- BLACK MAPLE DAMPER HANDLE [WOOD PART ONLY] (1600664) +$10.86

QTY: 29- GASKET BASE PAN (20002282) +$24.52

QTY: 30- GASKET BASE PAN INNER (20002566) +$10.86

QTY: 31- SENSOR 2450 CMG-8184-0032 (10002013) +$148.46

QTY: 32- HEAT EXCHANGE BLOW OFF DOOR GASKET-2 REQUIRED, EACH SOLD SEPARATELY- ~Old part #1203687~ (1203687A) +$19.26

QTY: 33- TOP CLASSIC BLACK (30000680) +$116.74

QTY: 33A- TOP MIDNIGHT (30000717) *No longer available* +$*0.00*

QTY: 33B- TOP GREEN (30000723) *No longer available* +$*0.00*

QTY: 34- LEFT END CLASSIC BLACK (30000682) +$112.78

QTY: 34A- LEFT END MIDNIGHT (30000720) *No longer available* +$*0.00*

QTY: 34B- LEFT END GREEN (30000726) *No longer available* +$*0.00*

QTY: 35- RIGHT END CLASSIC BLACK (30000681) +$112.78

QTY: 35A- RIGHT END MIDNIGHT (30000719) *No longer available* +$*0.00*

QTY: 35B- FRONT GREEN (30000727) *No longer available* +$*0.00*

QTY: 36- LEG CLASSIC BLACK (30000679) +$41.63

QTY: 36A- LEG MIDNIGHT (30000716) *No longer available* +$*0.00*

QTY: 36B- LEG GREEN (30000722) *No longer available* +$*0.00*

QTY: 37- PRESSURE RELEASE GASKET ~Old part #1203687~ (1203687A) +$19.26

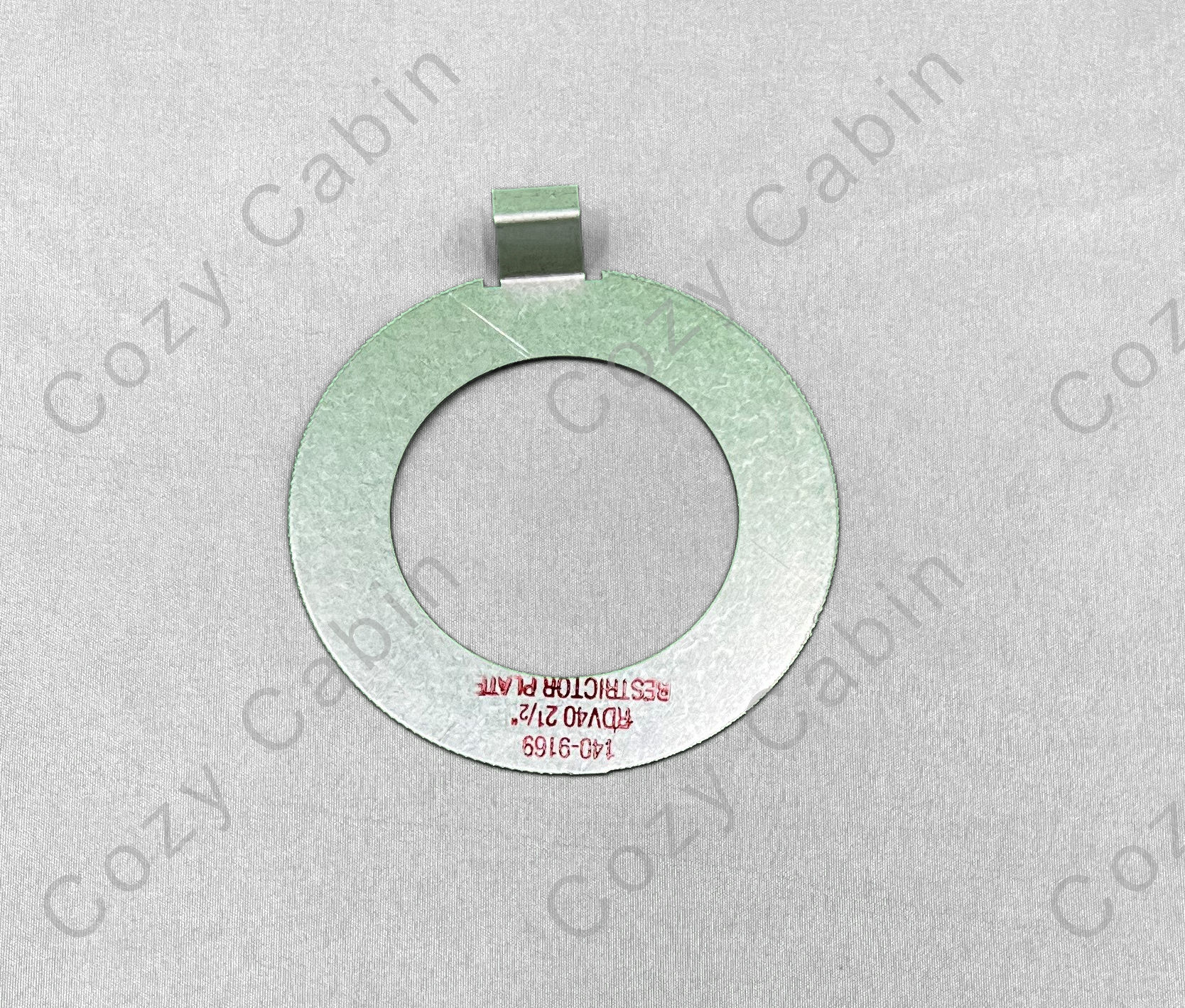

QTY: 38- RESTRICTOR (1409170) *No longer available* +$ *0.00*

QTY: 39- REAR SHROUD (20002173) *No longer available* +$*0.00*

QTY: 40- BOTTOM CASTING (30000684) +$144.64

FUEL CONVERSION KITS

Item Description (Part Number)

QTY: 41- CONVERSION KIT NATURAL GAS TO PROPANE JDV/SDV30R KIT [FITS HONEYWELL VALVE ONLY] (0005022) +$417.90

QTY: 42- CONVERSION KIT PROPANE TO NATURAL GAS [FOR SIT VALVE ONLY] (0005021) +$167.67

QTY: 43- CONVERSION KIT PROPANE TO NATURAL GAS [FOR HONEYWELL VALVE ONLY] (0005021H) +$417.90

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 44- BLOWER (FK28) +$419.00

AVAILABLE IN:
