Dutchwest Small Catalytic Stove #2460

Dutchwest Small Catalytic Stove


Item#: 2460

Price: $0.00


Order Now

Item Description (Part Number)

QTY: 1- BOTTOM (7000958) +$209.62

QTY: 2- OUTER BACK (7001144) +$204.26

QTY: 3- INNER BOTTOM (7001136) +$135.77

QTY: 4- INNER BACK [AFTER 9/97 NO OUT SIDE AIR SLOT] (7001130) +$139.96

QTY: 4A- INNER BACK [BEFORE 9/97 SLOT FOR OUTSIDE AIR] (7001137) +$105.02

QTY: 5- INNER TOP (7001112) +$174.79

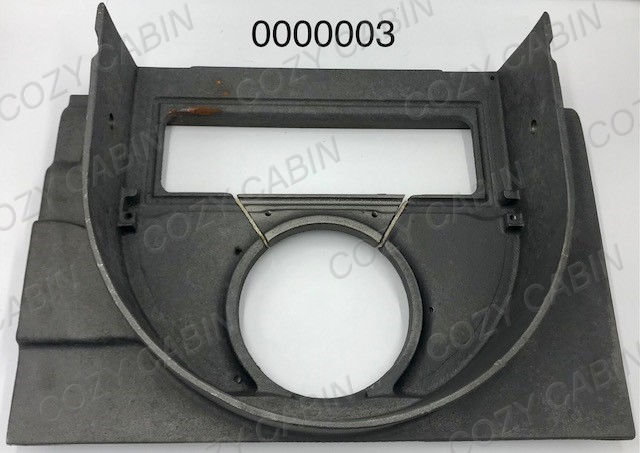

QTY: 5- INNER TOP ASSY [INNER TOP WEB GASKET TABS & BOLTS](0000003) +$304.75

QTY: 6- INNER TOP WEB ~Old part #7001110~ (7001110A) +$88.25

QTY: 6A- INNER TOP WEB INTERAM GASKET [2 REQUIRED EACH SOLD SEPARATELY] (1203540) +$11.01

QTY: 7- INNER TOP CHANNEL CAP (7000961) +$44.57

QTY: 8- AIR DISTRIBUTOR (7000952) +$50.16

QTY: 9- BAFFLE ~Old part #7000953~ (7000953A) +$93.84

QTY: 9A- BAFFLE HARDWARE KIT (7000953H) +$31.95

QTY: 10 RIGHT SIDE [AFTER 7/97 NO OUTSIDE AIR] (7001229) +$170.77

QTY: 11 12 LEFT SIDE (7001120) +$135.77

QTY: 12 SIDE DOOR 55 (7001121) +$88.25

QTY: 13- LOAD DOOR HANDLE [FRONT AND SIDE NUB W/ SHAFT](5004245) +$56.63

QTY: 13B- FALLAWAY HANDLE W/ GOLD NUB - COMPLETE (0005854) +$62.22

QTY: 13C- GOLD HANDLE SCREW ONLY (1201293) +$11.01

QTY: 13D- HANDLE ONLY [WHITE CERAMIC] (1600620) +$11.01

QTY: 13E- INSERT LIFTER HANDLE GOLD NUB ONLY (1600651) +$27.89

QTY: 14- PAWL ASSEMBLY 5004025 (30005157) +$48.76

QTY: 14A-ALLEN WRENCH FOR PAWL ASSEMBLY (1205116) +$11.01

QTY: 16- PRIMARY AIR MANIFOLD (7001137) +$105.02

QTY: 18- FRONT DOOR GASKET [15FT PKG] ~Old part #7000910~ (1-00-7000910) +$40.37

QTY: 19- ASH DOOR (7001141) +$85.46

QTY: 20- GRATE(30002092) +$106.42

QTY: 21- RETAINER TAB FOR THE WEB (1601488) +$10.65

QTY: 22- FAN PLATE (7000037) +$32.29

QTY: 23- DAMPER (7000954) +$44.57

QTY: 24- DAMPER ADJUSTER ~Old part #7000950~ (7000950A) +$65.01

QTY: 24A- DAMPER ADJUSTER HARDWARE KIT (7000950H) +$17.98

QTY: 25- AIR CONTROL BALL NICKEL [CURRENT] (30002729) +$11.01

QTY: 26- DIAL DAMPER THREADED STUD (1204253) +$11.01

QTY: 27- ?-16 HEX NUT (1203161) +$10.65

QTY: 28- DAMPER TAB (1601488) +$10.65

QTY: 29- DAMPER CRANK (7000951) +$45.96

QTY: 30- DAMPER OPERATING ROD (7001145) +$27.89

QTY: 30A- WASHER (1202561) +$12.65

QTY: 30B- BYPASS OPERATING ROD CLIP (1203058) +$11.01

QTY: 31- GRATE BACK ~Old part #7001166~ (7001166A) +$110.61

QTY: 31A- BOLT FOR FLUE COLLAR [2 REQUIRED EACH SOLD SEPARATELY] (1201381) +$10.65

QTY: 32 TOP ~Old part #7000960~ (7000960A) +$206.94

QTY: 33- HEARTH (7001142) +$74.28

QTY: 34- FLUE COLLAR (7000969) +$88.25

QTY: LEG [NOW ONLY SOLD AS A SET OF 4] ~OLD PART # 7000016 ~ (30006014) +$178.81

QTY: 35A- LEG SET OF 4 ~OLD PART #[7000SL6]~ (30006014) +$178.81

QTY: SET OF 4 SHORT [2IN] LEGS (0000SL2) +$98.04

QTY: 36- DAMPER HANDLE STUB NICKEL [CURRENT] (5004265) +$50.16

QTY: 36A- DAMPER HANDLE STUB GOLD (5004267) +$66.41

QTY: 37- ASH DOOR HANDLE NICKEL W/SHAFT (5004237) +$56.63

QTY: 37A- ASH DOOR HANDLE GOLD W/SHAFT (5004271) +$66.41

QTY: 38- ASH PAN (7000G79) +$72.88

QTY: 39- GLASS GASKET-15 FT ~Old part #1203591~ (1-00-1203591) +$33.90

QTY: 40- GLASS (7001146) +$177.47

QTY: 41- MANIFOLD CAP (7001163) +$23.49

QTY: 42- HOLDER FOR DOOR HANDLE INSERT (1600600) +$18.34

QTY: 43- PRIMARY AIR CONTROL (30002738) +$33.90

QTY: 44- GLASS CLIP [4 REQUIRED EACH SOLD SEPARATELY] (1601396) +$11.01

QTY: 44A- GLASS CLIP SCREW [4 REQUIRED EACH SOLD SEPARATELY] (1200996) +$10.65

QTY: 45- SPRING FOR PRIMARY CONTROL (1201846) +$10.65

QTY: 47- FRONT DOOR (7001140) +$95.24

QTY: 47A- DOOR PIN(1201836) +$11.01

QTY: 48- INNER BOTTOM SCREW 1/4_20 X 33/4IN (1201394) +$10.65

QTY: 50- ANDIRON ~Old part #7001117~ (7001117A) +$24.95

QTY: 53- SIDE WEAR PLATE (7001198) +$58.02

QTY: 54- INTERAM GASKET[FOR CATALYTIC COMBUSTOR] ~Old part #1203533~ (1203533A) +$26.42

QTY: 55- CATALYTIC COMBUSTOR (000CB56) +$267.07

QTY: 56- REFRACTORY (1602515) +$327.52

QTY: 57- COMBUSTOR AIR INLET (7001128) +$38.98

QTY: 58- PROBE THERMOMETER ~Old part #7000948~ (7000948A) +$85.46

QTY: 59- CHROME BAR [CURRENT] (30002731) +$43.17

QTY: 63- BLACK WOOD HANDLE W/LIFTER NICKEL (30002787) +$33.75

QTY: 63A- WOOD HANDLE W/LIFTER -GOLD (0005854) +$62.22

QTY: 1/4 -20 X 2IN STAINLESS HEX HEAD CAP SCREW (1201399) +$11.01

QTY: WARMING SHELF BRACKET (7001223) +$38.98

ACCESSORIES

Item Description (Part Number)

QTY: DUAL SPEED CONVECTION FAN (0009973) +$382.46

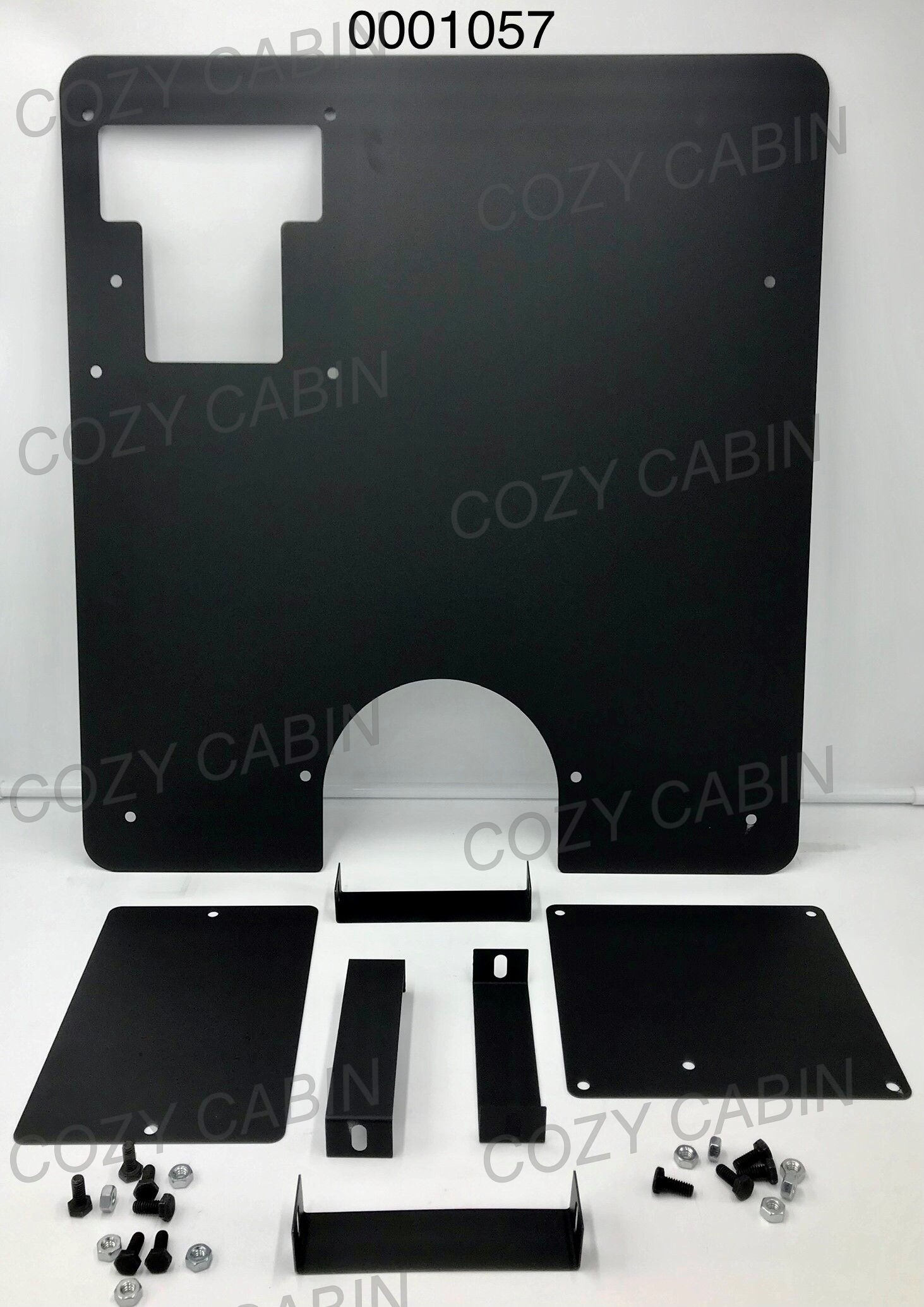

QTY: REAR HEAT SHIELD - SMALL [INCLUDES HARDWARE KIT] (0001057) +$156.03

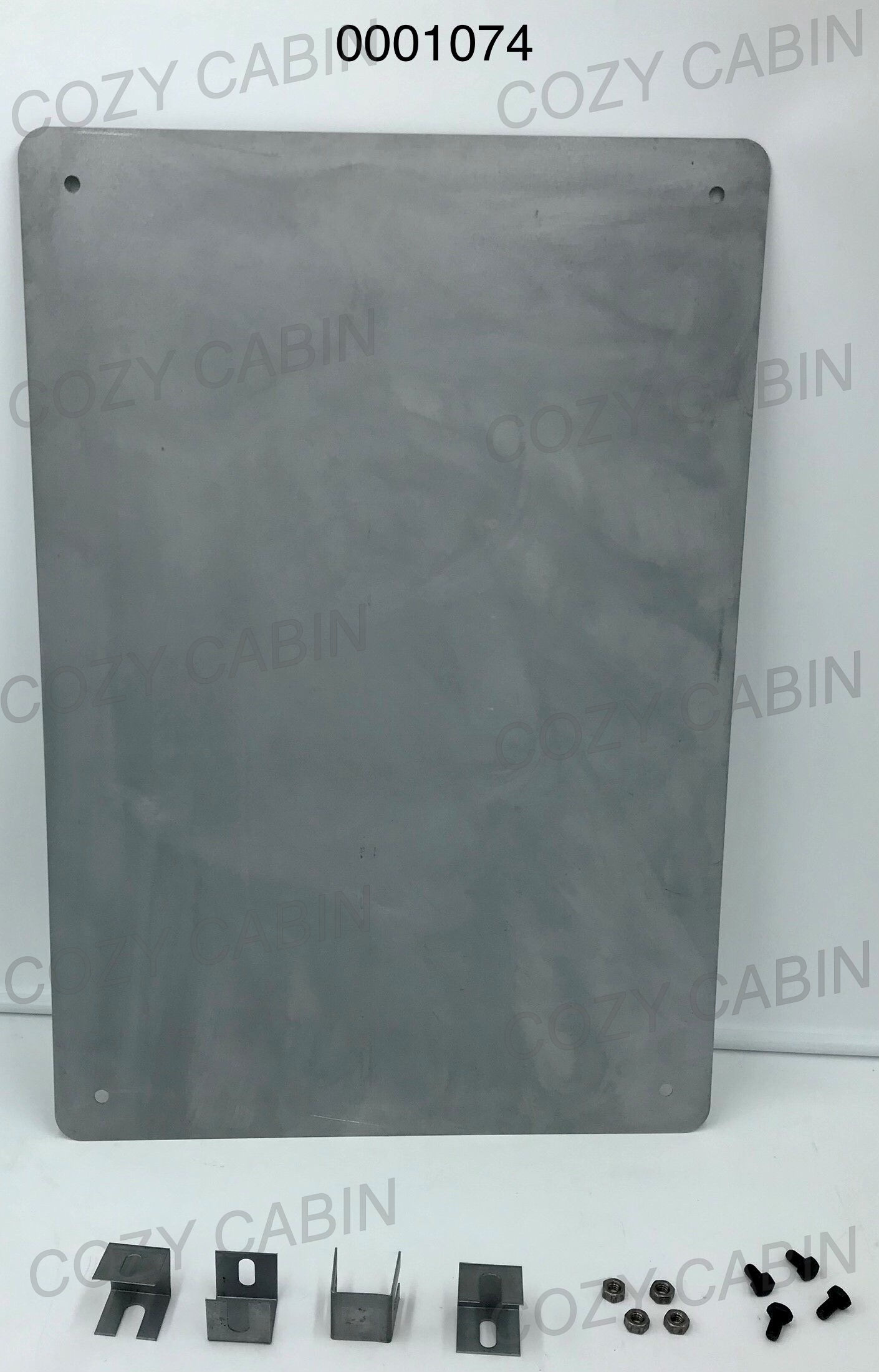

QTY: BOTTOM HEAT SHIELD - SMALL [INCLUDES HARDWARE KIT] (0001074) +$119.00

QTY: HARDWARE KIT ONLY [FITS BOTTOM OR REAR HEATSHIELD] (0001075H) +$105.24

QTY: WARMING SHELF BRACKET (7001223) +$38.98

QTY: FAN THERMOSTAT W/CORD (000FT1) +$134.64

QTY: FAN THERMOSTAT W/O CORD (000FT3) +$81.38

QTY: FAN RHEOSTAT (000FT5) +$121.60

QTY: 2IN SHORT LEG [2 REQUIRED] (7000SL2) +$Call to order

DUTCHWEST HARDWARE

Item Description (Part Number)

QTY: 4MM X 14MM PHILLIPS TRS HD SHEET METAL SCREW [STOVEPIPE TO FLUE COLLAR] (1202089) +$Call to order

QTY: 8MM X 1 1/4 PHIL TRUS HD WD SCREW [WALL BRACKET] (1201301) +$14.34

QTY: 1/4_20 X 1/2 HEX HEAD CAP SCREW [HEAT SHIELD BYPASS CONNECTOR CLIP SEQUOIA GLASS FRAME] (1201338) +$10.65

QTY: _BC-20 HEX NUT [HEAT SHIELD] (1203210) +$10.65

QTY: PHILLIPS FLAT HEAD SCREW (1200881) +$10.65

QTY: 1/4_20 X 1-1/4 HEX HD CAP SCR [BOTTOM BACK LEG BOLT] (1201378) +$10.65

QTY: 1/4 X 7/8 FLAT WASHER [BOTTOM BACK FRONT TOP LEG BOLT] (1202470) +$10.65

QTY: 1/4_20 X 3/4 HEX HEAD CAP SCREW [SIDE PART REAR PART BYPASS GATE SIDE SUPPORT GRATE BACK SIDE HALF WALL BOOT PLATE SEQUOIA INNER BACK & FLUE COLLAR] (1201374) +$10.65

QTY: 1/4 STD FLAT WASHER [SIDE & REAR PART BACK BAFFLE TOP FRONT DOOR BOOT PLATE SEQUOIA INNER BACK SIDES FRONT GRATE BACK HINGES](1202474) +$10.65

QTY: 1/4_20 X 5/8 PHIL FL HEAD MACHINE SCREW [BACK COVER PANEL] (1200865) +$12.48

QTY: 1/4_20 X 5/8 HEX HEAD CAP SCREW [BACK INLET PLATE SEQUOIA HINGES & HEARTH (1201372) +$10.65

QTY: 1/4_20 X 1-1/2 CRS STUD [BACK FRONT TOP] (1204214) +$18.34

QTY: 1/2-20 HEX NUT [BACK FRONT TOP SIDES TO BOTTOM A PLUS ASH DOOR FRAME] (1203210) +$10.65

QTY: HINGE PIN (1201836) +$11.01

QTY: SEQUOIA ASH DOOR HINGE PIN (1201837) +$15.41

QTY: 1/4_20 X 1 HEX HEAD CAP SCREW [BAFFLE A PLUS ASH BIN] ~Old part #1201326~ (1201370) +$10.65

QTY: 1/4_20 X 1/2 HEX HEAD CAP SCREW [DOOR PANEL TORSION BAR CLIP] (1201338) +$10.65

QTY: 3/8-16 HEX JAM NUT [DOOR SHAFT] (1203157) +$10.65

QTY: 1/4 X 1-1/4 FENDER WASHER [ROCKER GRATE] (1202527) +$11.68

QTY: 1/4_20 X 1-1/2 PHIL FL HD SCREW [ROCKER GRATE] (1200815) +$10.65

QTY: WING NUT 1/4_20 [ROCKER GRATE] (1203110) +$11.01

QTY: 10-24 X 1/2 HEX HEAD CAP SCREW [ROCKER GRATE] (1201322) +$10.65

QTY: 3/8-16 X 1-1/2 HEX HEAD CAP SCREW [BYPASS GRATE CONNECTOR] (1201456) +$10.65

QTY: 3/8-16 HEX TOP LOCK JAM NUT [BYPASS GRATE CONNECTOR] (1203290) +$10.65

QTY: 1/4_20 X 7/8_94 10MM HEX HD CAP SCREW [TOP SIDE FOR SHROUD] (1201375) +$10.65

QTY: 7/16 X 5/8 LOCK WASHER [BRASS DIAL] (1202463) +$Call to order

QTY: 3/8-16 NARROW HEX NUT [BRASS DIAL] (1203161) +$10.65

QTY: 1/4_20 X 1 3/4 PH FL HD [SIDES TO BOTTOM A PLUS ASHDOOR FRAME] (1200830) +$11.01

QTY: 1/4 X 3/4 WASHER [GRATEBACK] ~Old part #1202469~ (1202470) +$10.65

QTY: 1/4_20 X 2 PIN HEX HD CS [INNER TOP CHANNEL SEQUOIA BAFFLE] (1201392) +$11.01

QTY: 1/4_20 X 1 1/4 STUD [SEQUOIA BACK] (1204212) +$10.65

QTY: 1/4_20 X 2 PHILLIPS FLAT HD MS [SEQUOIA AIR DISTRIBUTOR] (1200848) +$10.65

QTY: 1/4_20 X 1 1/4 PHILLIPS FLAT HD SCREW [SEQUOIA SHAKER GRATE COVER INLET PLATE] (1200811) +$10.65

QTY: 1/4_20 1 PHILLIPS FLAT HEAD SCREW [SEQUOIA TOP] (1200809) +$10.65

QTY: 1/4 FLAT WASHER [SEQUOIA SIDE HINGE] (1202473) +$11.68

QTY: 5/16-18 X 5/16 SOCKET SET SCREW [SEQUOIA DOOR CATCH] (1200563) +$10.65

QTY: 1/4 X .5 OD FLAT WASHER [SEQUOIA HEARTH] (1202475) +$10.65

QTY: 1/4_20 X 1 HEX HD CAP SCREW [SEQUOIA LEG BOLT] (1201376) +$10.65

GASKETS

Item Description (Part Number)

QTY: DUTCHWEST GASKET KIT COMPLETE (000GK99) +$131.58

QTY: TOP AND DAMPER OPENING FIBERGLASS ROPE GASKET - LOW DENSITY/BLACK [PACKAGE OF 15FT] (1-00-1203589) +$32.69

QTY: FRONT DOOR, ASH DOOR & SIDE DOOR ROUND FIBERGLASS GASKET - BLACK [PACKAGE OF 15FT] (1-00-7000910) +$40.37

QTY: AIR MANIFOLD FIBERGLASS ROPE GASKET - MEDIUM DENSITY/BLACK [PACKAGE OF 15FT] (1-00-1203588) +$31.35

QTY: INNER TOP WEB GASKET [2 REQUIRED] (1203540) +$11.01

QTY: GLASS ADHESIVE BACKED GASKET [PACKAGE OF 15FT] (1-00-1203591) +$33.90

QTY: INTERAM GASKET - CDW - FOR CATALYTIC COMBUSTER - PRECUT TO FIT THE COMBUSTER (1203533A) +$26.42

Related Items:
  •  Stove Gasket Kit
  •  Warming Shelves
  • AVAILABLE IN:
    QTY:
